Electric 316 SS Security Flap Barrier Gate Turnstile Gate With IR Sensor 13.56mhz Card Reader

Electric 316 SS Security Flap Barrier Gate Turnstile Gate With IR Sensor 13.56mhz Card Reader

electronic turnstiles

security barrier gate

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF5088 / RNCF5088S

Contact Us
Request A Quote
Product Details
Material:
304 Stainless Steel
Working Voltage:
AC220±10%V
Drive Motor:
DC24V Brush Motor
Direction Plate:
Arrow & Cross
Normal Running Life:
More Than 5 Millions
Passage Width: 550mm:
550MM
System Waterproofing Grade:
Face Recognition System
Payment & Shipping Terms
Minimum Order Quantity
1 pair
Price
negotiation
Packaging Details
Export Wooden Packing
Delivery Time
7-15 working days
Payment Terms
, T/T, L/C
Supply Ability
2000 units Per Month
Product Description

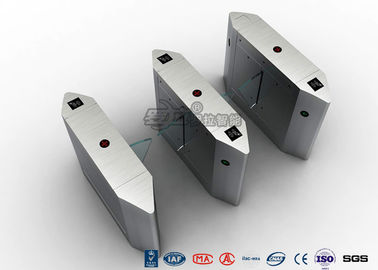

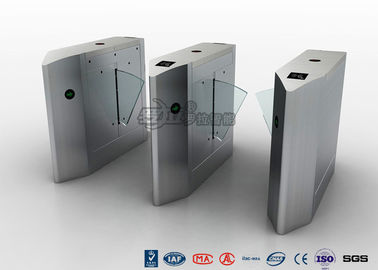

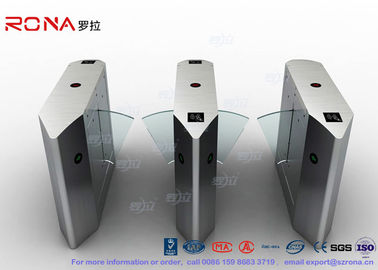

Electric 316 SS Security Flap Barrier Gate Turnstile Gate With IR Sensor 13.56mhz Card Reader



Product Description
Double wing/ flap retractable barrier series for access control
1. Brushless DC Motor
2. can integrated with Barcode,Magnetic,ID ,IC card etc.
3. voice account passenger and without PC
4. Dimension: 1200X300X990(mm)
5. Net Weight: 65KG /single

Feature & Advantages
1. Cold-rolled steel plate or 202 stainless steel or 304 stainless steel casing optional.
2. Directional LED Optical Signals:Green Arrow or LED Cross signage.
3. Sixteen modes for passing through lanes
4. Mechanism is specially processed ,more durable
5. Always open or close modes,When Fire alarm on,The arcylic will retract automatically.
6. Ensures rapid, efficient & safe access control.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
9. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
10. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

Electric 316 SS Security Flap Barrier Gate Turnstile Gate With IR Sensor 13.56mhz Card Reader 0



Technical parameters

Model RNCF 5088
Flap length 245mm
Lane width 550mm
Cabinet material Cold rolled steel & aluminum alloy
Material of Flap Door Acrylic plate
Housing of thickness 2.0mm
Normal Life Span 3 millions times
Communication Interface Standard RS485
Transit speed 30-40 persons/min
Time for opening or closing 0.5s
Starting time after power on 3s
Input interface Dry contact signal or +12Vor pulse signal with width more than100ms DC12V
Transit speed 25~32 persons/min
Working temperature -10°C~50°C
Working environment Indoor / Outdoor (Shelter)
Relative humidity ≤95%, no condensation







FAQ



1. How long have you been engaged in this industry?

Founded in 2004 in China's Shenzhen, RONA is now the most eading player in the intelligent customization turnstile industry.



2. Do you have both manufacturing and designing capabilities at the same time?

Yes, we have a 4 talented designing and development team while 100% share-holding production facilities guarantee that both the quality and costs are under our complete control.



3. What's your maximum output or production capability?

We can produce and supply more than 500 different types and styles of turnstiles every month.



4. What's the lead time if I place the order now?

The lead time depends on the quantity and complexity of the machines to be ordered, for example, if less than 10 sets, we can deliver within 3-7days; if 10-20sets, we can deliver 10-15days;



6. What is your MOQ?

Normally 1 sets at least.



7. What are your payment terms?

We can accept T/T, L/C, or  but in the beginning T/T or cash is the only acceptable option particularly for those specially designed/customized machine. If T/T, at least 30-50% deposit shall be needed while the balance to be paid before or right after the shipment.



8. What's the loading port?

Our loading port is Shenzhen one of the busiest and largest sea port in the world, which means the lowest and cheapest shipping costs are always possible.



9. Do you provide quality guarantee?

Most reliable and guaranteed quality is the cornerstone where our company stands all the time. We normally provide 1 year quality guarantee for different types of hardware.



10. How about your customer services? Will on-site consulting and help be possible in case of need?

We make every effort to support its customers with expert know-how from the first conceptual discussion to product servicing. Our services provide you with answers to any question and incorporate a help desk and support service, spare part and repair handling, on-the-spot service and many additional types of assistance.



Electric 316 SS Security Flap Barrier Gate Turnstile Gate With IR Sensor 13.56mhz Card Reader 1

Electric 316 SS Security Flap Barrier Gate Turnstile Gate With IR Sensor 13.56mhz Card Reader 2
