Place of Origin: | Chian |
Brand Name: | RONA |
Certification: | CE / ISO9001 |
Model Number: | RNCF4088 |
Minimum Order Quantity: | 1 pair |
---|---|
Price: | negotiation |
Packaging Details: | Export Wooden Packing |
Delivery Time: | 7-15 working days |
Payment Terms: | , T/T, L/C |
Supply Ability: | 2000 units Per Month |
Material: | 304 Stainless Steel | Working Voltage: | AC220±10%V |
---|---|---|---|
Size: | 600mm (L) * 300mm (W) * 990mm (H) | Drive Motor: | DC24V Brush Motor |
Working Environment: | Indoor/outdoor | Direction Plate: | Arrow & Cross |
Normal Running Life: | More Than 5 Millions | Passage Width: 550mm: | 550MM |
Waterproofing Grade: | IP54 | System Waterproofing Grade: | RFID System |
Communication Interface: | RS485, TCP/IP | ||
High Light: | electronic turnstiles,security barrier gate |

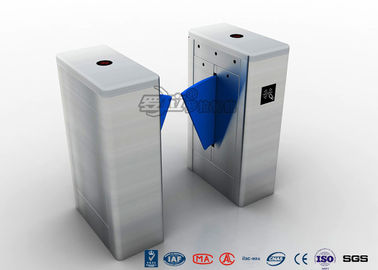

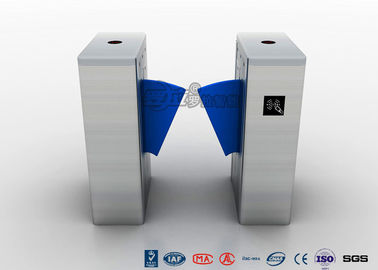

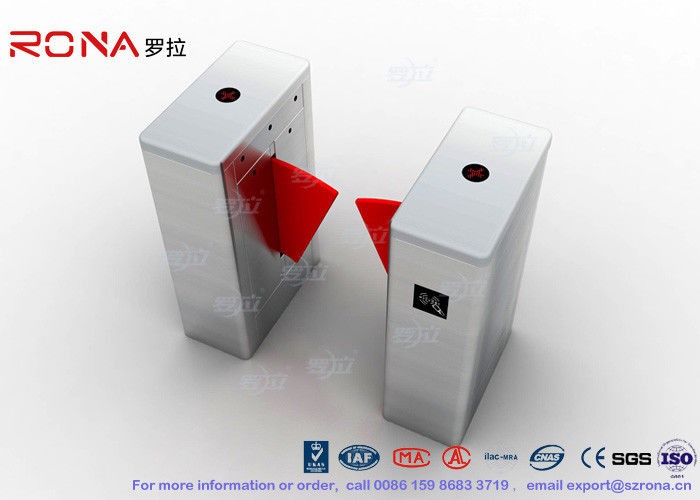

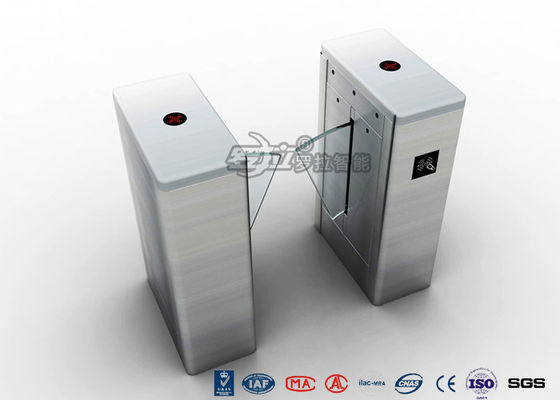

10 Years factory CE Approved access control system Flap Barrier Gates rfid recognition flap entrance gates
Description
Flap barrier tripod turnstile is an upgraded products from tripod turnstile and swing barrier. It has standard electrical interface which can be connected with ID cards, IC cards, magnetic cards, barcode cards etc. The integration system ensures passing in order and will never allow unauthorized persons to go in or go out.
Features & Functions
1. WIth function of self -examine and alarm, it is convenient for users to maintain
And use.
2. It will raise the alarm by means of a sound or light when someone pushes in illegally.
3. The mechanism is locked until a valid open signal is received.
4. Reset automatically --go signal will be can celled if passage through is not completed within pre-set
Time. The standard default is 5 seconds.
5. Unit can be adjusted permanent open or close when power off to meet
Different needs. Unit can be controlled and administered by remote control.
Technical parameters
Model | RNCF 4088 |
Flap length | 245mm |
Lane width | 550mm |
Cabinet material | Cold rolled steel & aluminum alloy |
Material of Flap Door | Acrylic plate |
Housing of thickness | 2.0mm |
Normal Life Span | 3 millions times |
Communication Interface | Standard RS485 |
Transit speed | 30-40 persons/min |
Time for opening or closing | 0.5s |
Starting time after power on | 3s |
Input interface | Dry contact signal or +12Vor pulse signal with width more than100ms DC12V |
Transit speed | 25~32 persons/min |
Working temperature | -10°C~50°C |
Working environment | Indoor / Outdoor (Shelter) |
Relative humidity | ≤95%, no condensation |
FAQ
1. How long have you been engaged in this industry?
Founded in 2004 in China's Shenzhen, RONA is now the most eading player in the intelligent customization turnstile industry.
2. Do you have both manufacturing and designing capabilities at the same time?
Yes, we have a 4 talented designing and development team while 100% share-holding production facilities guarantee that both the quality and costs are under our complete control.
3. What's your maximum output or production capability?
We can produce and supply more than 500 different types and styles of turnstiles every month.
4. What's the lead time if I place the order now?
The lead time depends on the quantity and complexity of the machines to be ordered, for example, if less than 10 sets, we can deliver within 3-7days; if 10-20sets, we can deliver 10-15days;
6. What is your MOQ?
Normally 1 sets at least.
7. What are your payment terms?
We can accept T/T, L/C, or but in the beginning T/T or cash is the only acceptable option particularly for those specially designed/customized machine. If T/T, at least 30-50% deposit shall be needed while the balance to be paid before or right after the shipment.
8. What's the loading port?
Our loading port is Shenzhen one of the busiest and largest sea port in the world, which means the lowest and cheapest shipping costs are always possible.
9. Do you provide quality guarantee?
Most reliable and guaranteed quality is the cornerstone where our company stands all the time. We normally provide 1 year quality guarantee for different types of hardware.
10. How about your customer services? Will on-site consulting and help be possible in case of need?
We make every effort to support its customers with expert know-how from the first conceptual discussion to product servicing. Our services provide you with answers to any question and incorporate a help desk and support service, spare part and repair handling, on-the-spot service and many additional types of assistance.
