|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Model Number:||RNCF6008LZ / RNCF6008LZS|
|Minimum Order Quantity:||1 pair|
|Packaging Details:||Export Wooden Packing|
|Delivery Time:||7-15 working days|
|Payment Terms:||, L/C, T/T|
|Supply Ability:||2000 units Per Month|
|Product Name:||Fingerprint Entrance Swing Barrier Gate Stainless Steel For Handicap Channel||Standard Size:||1400*280*990mm|
|Driving Motor:||DC24V Brush Motor||Channel Width:||530-830mm|
|Working Life:||5 Millions||Pass Speed:||25-30 Persons/min|
|Guarantee:||12 Months||Working Environment:||-30℃～70℃|
|Input Interface:||+12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA|
pedestrian security gates,
pedestrian swing gate

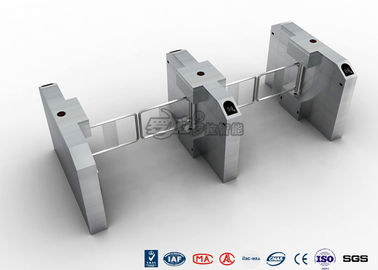

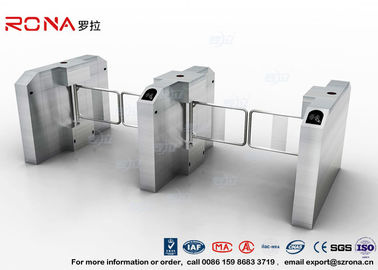

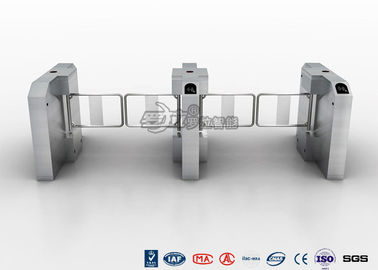

Outdoor Security Swing Barrier Gate Stainless Steel For Handicap Channel With Card Reader
Swing barrier gates description
Swing Gate series are intelligent passage management equipment researched, developed and produced by our company. The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.
l Reliable& compact design, noiseless, smooth operation, long service life
l Open and close speed can be set to meet different requirements
l Failure detection and alarm functions;
l Several work methods available, bi-directional control by card, one direction by card, the other direction forbidden, one direction by card, the other direction free entrance or exit.
l Bidirectional control, can be integrated with all kinds of access control systems,
l Flow direction guide with high bright led lamp
l Anti-punch, the barrier will not close if it detects people inside the passageway
l Anti-tailgating, it allows only one person to pass for an authorized card presented.
l Anti-panic, when power off, the barrier will open for people to go through.
l Normal close or normal open (for group pass)
l Close and open by remote control
l Card reading memory function, the user can set multiple time card reading passing or single time card reading
Applications of swing barrier gates
1) The whole system runs smoothly, long-life performance, high operation dependability and fast response.
2) Alarm function, in case of illegal intrusion and reverse intrusion.
3) Infrared sensor to prevent pinch pedestrians.
4) Anti-breakthrough function. The gate is locked automatically until opening signal received.
5) Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
6) LED indicator.
7) Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
8) When power off, optical turnstile will open automatically, which is complying with fire safety requirements.
Parameter of swing barrier gates
|1||Product Name||security crowd control automatic swing gate turnstile with alarm|
|5||auto reset time when there is breakdown||10s|
|7||LED indicating light||one|
|8||run into working state when power on||3 s|
|14||normal life||3 million times|
|18||communication interface||RS 485, distance ≤1200m|
|19||Framework||304 Grade Stainless Steel|
|20||Power voltage||AC220 (10%more or less) V, 50(10%more or less) HZ|
|21||Transit speed||30—40persons per minute (normal open), 25-30 persons/per minute ( normal close)|
|22||Input interface||relay switch signal, 12V level signal or 12V pulse signal, pulse width>100ms,drive current >10Ma|
