Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF5008L / RNCF5008LS

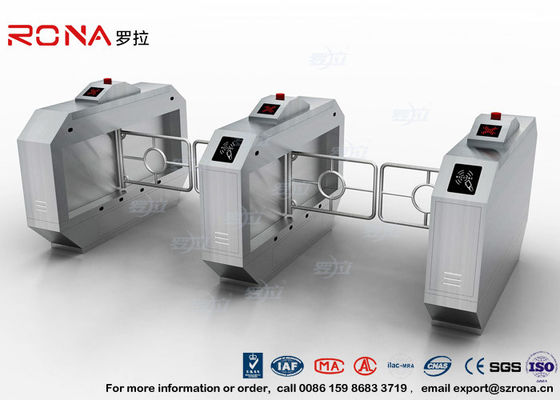

RFID Entrance Palm Print Swing Gate Turnstile Automatic Coin Card Collector
Brief Introduction
Swing barrier gates is integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection, alarming equipment and direction indicating equipments.
System configuration
1) Access control system
2) Visitor management system
3) Ticket management system
4) Time attendence system
5) Turnstile management system
6) Site Management system
| Material of Housing | SS304 or 316 |
| Thickness of Housing | 1.2mm or 1.6mm |
| Dimension of Housing | 1600*280*1000 mm |
| Length of Arm | 600mm to 800mm |
| Material of Arm | Stainless steel or acrylic |
| Net Weight | 60KG |
| Rotating Direction | Double Direction |
| Power Supply | 220V±10%, 110V±10% |
| Frequency | 50/60HZ |
| Rated Power | 40W |
Swing barrier gates Standard features & functions
1. Swing barrier gates can setting the working condition by press the button of main control board.
2. The turnstile will lock when somebody enter the gate illegal, Tailgating or break into negative direction gate.
3. Before received the open signal, the Swing barrier gates will lock automatically
4. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
5. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs
6. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
7. Can manager and long-range control the turnstile directly by managing the computer.
Extensible functions
1.LED counting function
2. Size customization
3.Add more infrared
4.Program customization
(for example : Normally open or closed can be adjust to meet the requirements of the different place. )
5.Voice Prompt Function
6. Swing material can be using stainless steel or Acrylic
7. Direction plate
