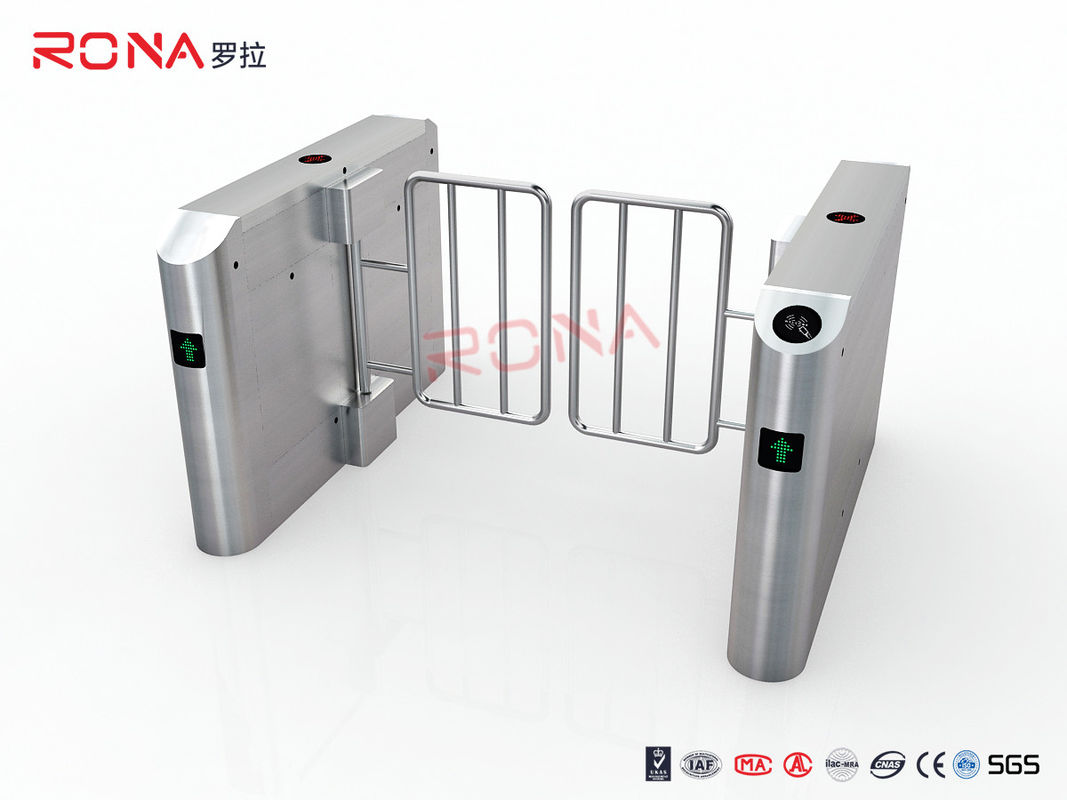

3 Lanes Automatic Swing Barrier Gate Card Collector For Biometric Access Control

This is an automation equipment which totally includes advanced computer technology, network technology, intelligent automation technology.

The whole machine adopts SUS 304 stainless steel design, and the rigorous traffic logic calculation Combined with the ingenious distribution of sensors for human walking characteristics, it can distinguish a variety of complex traffic modes. On the premise of fully ensuring traffic safety,effectively prevent tailgating and provide customers with a safe, convenient and comfortable noble experience.

Product Functions

1. Secondary opening function: If someone intrudes in the opposite direction after the passerby swipes the card, the baffle will be closed automatically. After the intruder exits, the baffle will open again automatically. (This feature is very applicable to authority management and control fields such as scenic spots and stations scene)

2. Beep warning function:This turnstile will be beep to warn manager that illegal action being happened.

3. Logical monitoring: 9-12 pair sensor (can enlarge to 24 pair sensor), turnstile system will monitor the passenger, kids, wheelchair,luggage's position, and also can warm alarm when have trailing, break in, opposite enter illegal action happened.

4. LED indicator function

5. Intelligent anti-pinch function: We have sensor anti-pinch design / motor torque anti-pinch design /mechanical anti-pinch design, those design to make sure passage’s safety when the pass.

6. Memory Function:The device can memorize more than 2 consecutive legal signals (including simultaneous and opposite direction),complete the effective passage in turn, The maximum number of memory times is 255.

7.Touch screen parameter setting: The parameter of this turnstile can be set through the touch screen, simple and convenient.

Technical Parameter

Packaing
