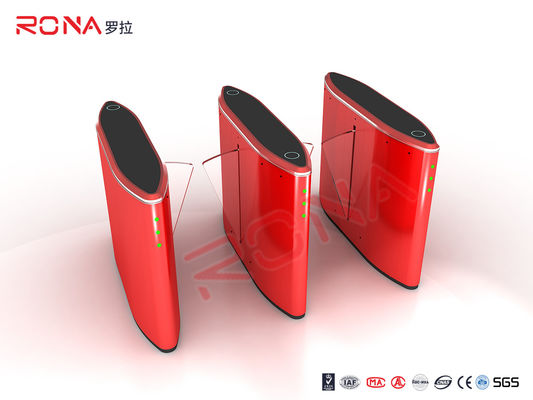

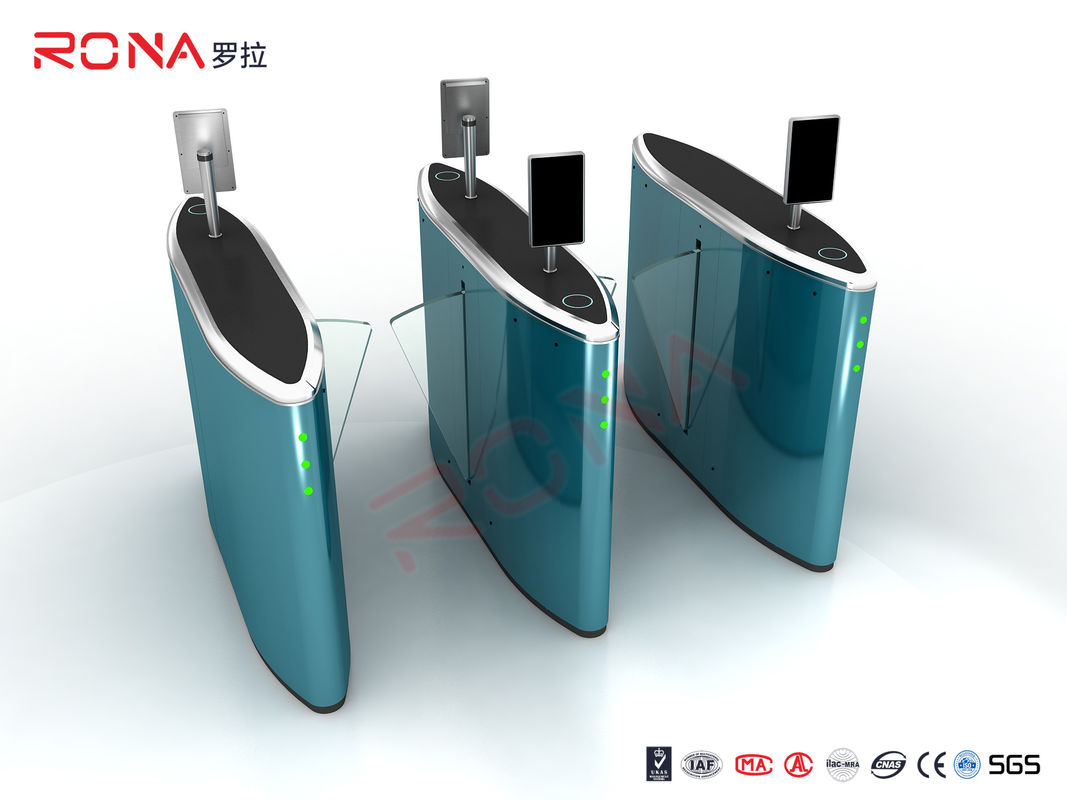

Flap Barrier Gate High Security Turnstile Entry Systems Waist Height Turnstiles 550mm Passage Width

Flap turnstile is a type of access control device used to manage pedestrian flow in secure areas. It consists o fretractable flaps that act as barriers, allowing only authorized individuals to pass through while preventing unauthorized access. The flap turnstile is a security solution commonly found in areas where controlled entry is essential, such as public transportation stations, office buildings, stadiums, and more. MT244 flap barrier gate provides bi- directional and unidirectional access control and free passage modes. In access control mode, upon receipt of a valid card signal from an access control system, the motorized barrier flap of the turnstile quickly retract into the cabinet, and the integrated sensors allow a single user to pass through the turnstile in the requested direction. The front post LED will keep green arrow shows that the lane is available. The top LED will change based on the status of the gates.

Functions & Features

• Alarm function & Zero self-inspection, it is convenient for customer to maintain and use.
• Turnstile can set the working condition by press the button of main control board.
• Anti-pinch function: turnstile have Mechanical / infrared Anti-pinch functions (the arms are produced by Soft rubber ).
• Somebody enter the gate illegal or Tailgating will trigger alarm.
• Before received the open signal, the turnstile will lock automatically.
• The arms can be adjusted.(For double swing arms).
• Automatic Reset Functions: after open turnstile, during the system time , if you don’t pass the turnstile, the system will cancel your chance to pass the turnstile automatically, (reset time is 1~60s you can adjust it what time is suit for you(the system is 10s). Open the turnstile automatically after out of power, closed turnstile automatically after connect the power, totally meet the fire protection needs.
• The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
• Single or bidirectional optional to control pedestrian enter and exit.
• Can manager and long-range control the turnstile directly by managing the computer.

Extended functions

• LED counting function
• Voice Prompt and light alarm functions.
• we can install thermostat in the turnstile during the low temperature region.

Technical parameters

Packaging
