Brand Name: | RONA |
Model Number: | RNCF F5008HD |
MOQ: | 1 unit |
Price: | negotiation |
Delivery Time: | 7-15 work days |
Payment Terms: | L/C, T/T |

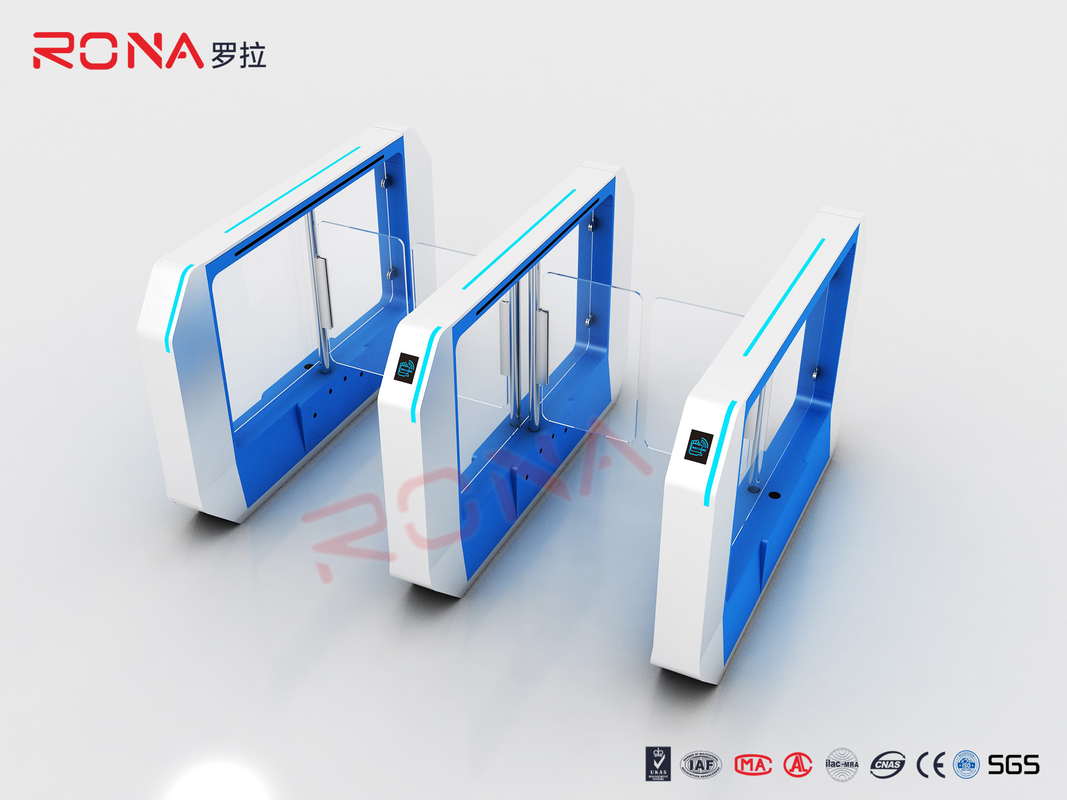

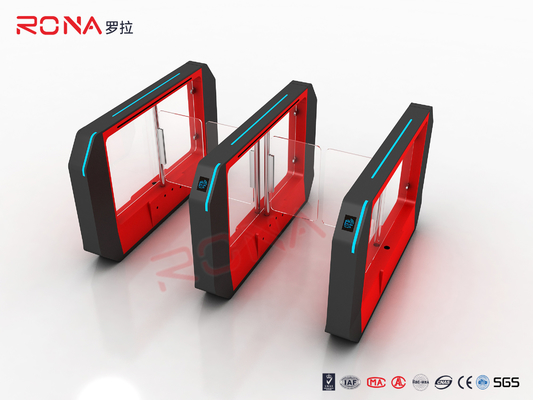

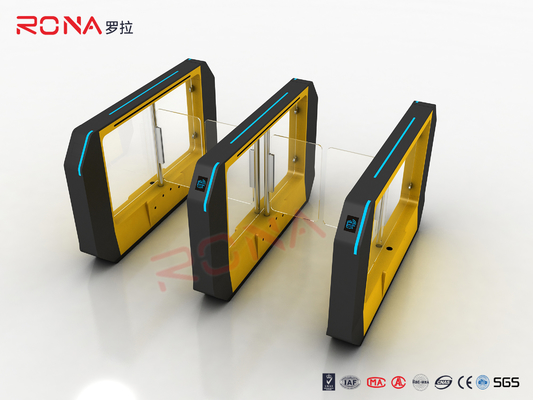

"Swing gate" is a device that manages passage through swinging motion. In the rail transit industry, it is often referred to as a flap barrier. Its barrier body (swing arm) is a flat surface with a certain area, perpendicular to the ground, achieving blocking and releasing through rotary swinging.Swing gates are commonly composed of a cabinet, control module, sensors, and a driving mechanism. They can be integrated with card swiping, facial recognition, biometric recognition, and other systems to achieve multi-method and multi-directional access control.Swing gates are widely used in schools, residential communities, scenic areas, stations, enterprises, institutions, clubs, hotels, factories, cinemas, libraries, and other places. They are also commonly found in stadiums, theaters, and trading centers.
Functions and Features
Parameters
Size: | L1600*W140*H990 mm |
Motor type: | DC24V brushless motor |
Main board type: | V2.6 |
Normal running life: | 10 million times |
Sensor quantity: | 6 pairs |
Pass speed: | 30 person/min |
Housing material: | 304 stainless steel&Stoving varnish |
Passage width: | 500-1000MM |
Swing arm material: | Acrylic/Tempered glass/Stainless steel pipe(optional) |
Input interface: | AC100-240V,50/60HZ |
Working voltage: | DC24V |
Working power: | 60W |
Working temperature: | -15℃-70℃ |
Working humidity: | 5%-90% |
Working environment: | Indoor/Semi-outdoor(with shade) |
Input interface: | Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA |
