Place of Origin:
China
Brand Name:
RONA
Certification:
CE/ISO9001
Model Number:
RNCF 7088C

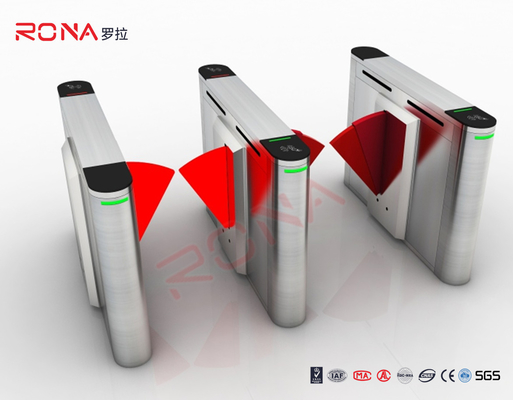

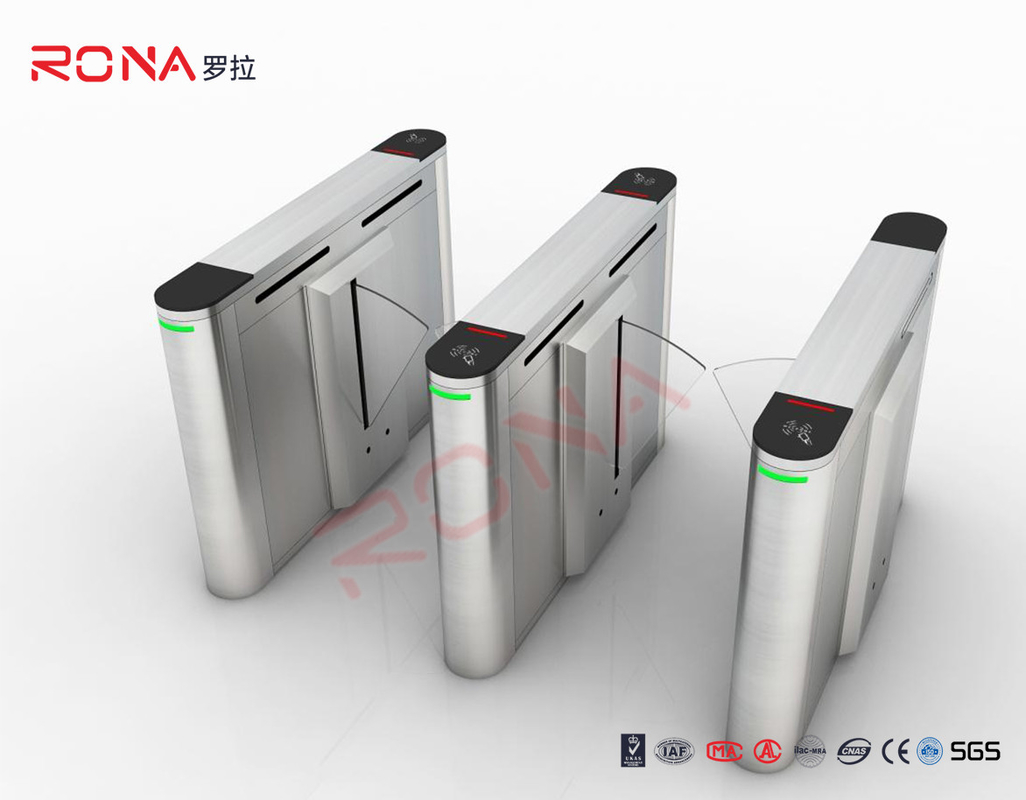

Intelligent flap turnstile is s a high-tech product which mainly provides intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier. this product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.
This equipment is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection, alarming equipment and direction indicating equipments...
Standard Functions
Extended functions
Technical parameters
Production size: | L1400mm*W300mm*H990mm |
Retractable arm length: | 250mm |
Max Passage width: | 550mm |
Material: | SUS 304 stainless steel |
Working voltage: | AC220±10%V , 50HZ |
Drive motor: | DC24V brushless motor |
Input interface: | Dry contact signal & 12V level signal, drive current>10mA |
Normal running life: | more than 8 million |
Communication interface: | standard RS232 interface |
Sensor pairs | 6 pairs |
Pass speed: | 30~40 persons/min |
Turnstile open / closed time: | 1 second |
Working environment: | indoor/outdoor (with a tent over) -10℃~70℃ |
Relative humidity: | ≤90% coagulation free |
