| Brand Name: | RONA |
| Model Number: | RNCF 9008 |
| MOQ: | 1 Unit |
| Price: | Negotiation |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, T/T |

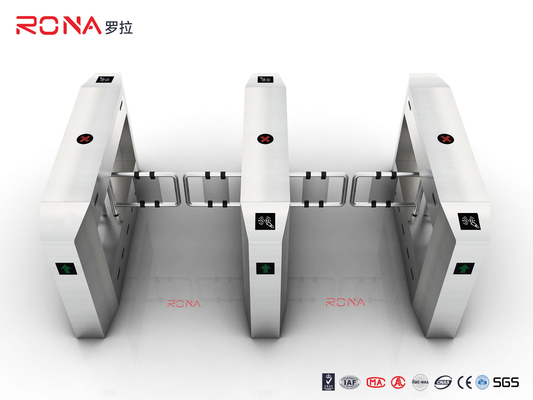

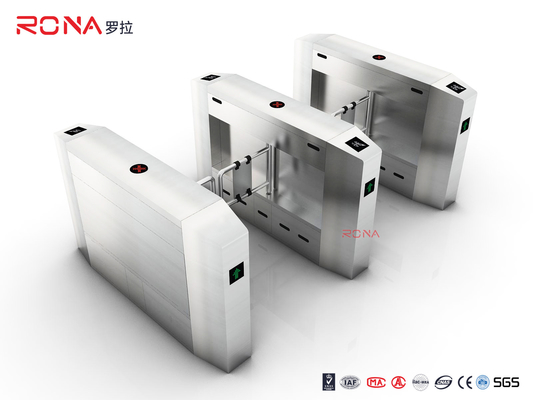

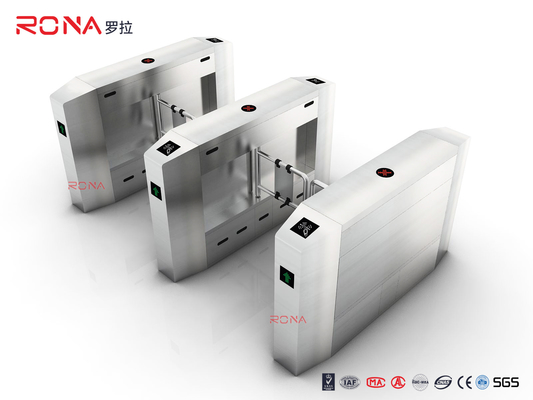

Intelligent Swing Turnstile is s a high-tech product which mainly provides intelligent management to passageway.This product is finely processed with complete functions and high level.
It is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint.
It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection.
Features&Functions
Technical Parameters
| Size: | L1600*W280*H990 mm |
| Motor type: | Brushless motor |
| Main board type: | V2.6 |
| Normal running life: | 10 million times |
| Sensor quantity: | 6 pairs |
| Pass speed: | 30 person/min |
| Housing material: | 304 stainless steel&Stoving varnish |
| Passage width: | 500-1000MM |
| Swing arm material: | Acrylic/Tempered glass/Stainless steel pipe(optional) |
| Input interface: | AC100-240V,50/60HZ |
| Working voltage: | DC24V |
| Working power: | 60-100W |
| Working temperature: | -15℃-70℃ |
| Working humidity: | 5%-90% |
| Working environment: | Indoor/Semi-outdoor(with shade) |
| Input interface: | Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA |
Packaging
Video
Video
Video
Video
|
|
