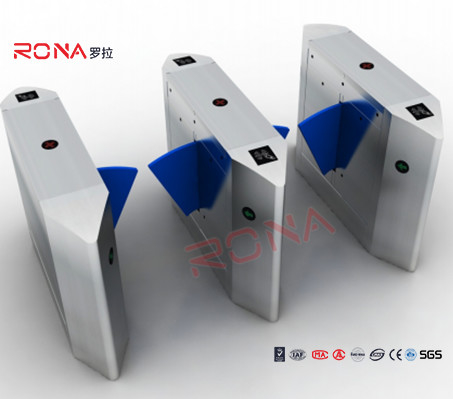

Walk Through Metal Detector Flap Barrier Gate Transparent Wing Flap Optical Turnstile

Walk Through Metal Detector Flap Barrier Gate Transparent Wing Flap Optical Turnstile

Transparent Wing Flap Barrier Gate

Metal Detector Flap Barrier Gate

Transparent Wing Flap Optical Turnstile

Place of Origin:

China

Brand Name:

RONA

Certification:

CE/ISO9001

Model Number:

RNCF 5088

Contact Us
Request A Quote
Product Details
Product Type:
Flap Gate Turnstile
Size:
L1400mm*W300mm*H1000mm
Material:
304 Stainless Steel
Motor Type:
DC24V Brushless Motor
Main Board Type:
V2.2
MBTF:
8 Million Times
Pass Speed:
25-30 Person/nin
Warranty:
One Year
Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
Negotiation
Packaging Details
Carton and Wooden Packing
Delivery Time
7-15 work days
Payment Terms
L/C, T/T
Supply Ability
2000 Unit Per Month
Product Description

Walk Through Metal Detector Flap Barrier Gate Transparent Wing Flap Optical Turnstile



Intelligent flap turnstile is s a high-tech product which mainly provides intelligent management to passageway. It is a upgrade product of intelligent tripod turnstile and swing barrier. this product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc.

This equipment is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection, alarming equipment and direction indicating equipments...



Standard Functions

  • Alarm function & Zero self-inspection, it is convenient for customer to maintain and use.
  • Turnstile can set the working condition by press the button of main control board.
  • Anti-pinch function: turnstile have Mechanical / infrared Anti-pinch functions (the arms are produced by Soft rubber ).
  • Somebody enter the gate illegal or Tailgating will trigger alarm.
  • Before received the open signal, the turnstile will lock automatically.
  • The arms can be adjusted.(For double swing arms).
  • Automatic Reset Functions: after open turnstile, during the system time , if you don’t pass the turnstile, the system will cancel your chance to pass the turnstile automatically, (reset time is 1~60s you can adjust it what time is suit for you(the system is 10s). Open the turnstile automatically after out of power, closed turnstile automatically after connect the power, totally meet the fire protection needs.
  • The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
  • Single or bidirectional optional to control pedestrian enter and exit.
  • Can manager and long-range control the turnstile directly by managing the computer.



Standard Technical parameters

  • Production side: L1400*W300*H990MM
  • Retractable arm length: 250 mm
  • Max Passage width: 550 mm
  • Material: SUS 304 stainless steel
  • Working voltage: AC220±10%V , 50HZ
  • Drive motor:DC24V brush motor
  • Input interface: Dry contact signal & 12V level signal, drive current>10mA
  • Normal running life: more than 3 million
  • Communication interface: standard RS485 interface
  • Sensor pairs : 6 pairs
  • Service port : window
  • Pass speed: 30~40 persons/min
  • Turnstile open / closed time: 1 second
  • Working environment: indoor/outdoor (with a tent over) -10℃~70℃
  • Relative humidity: ≤90% coagulation free

Packaging
