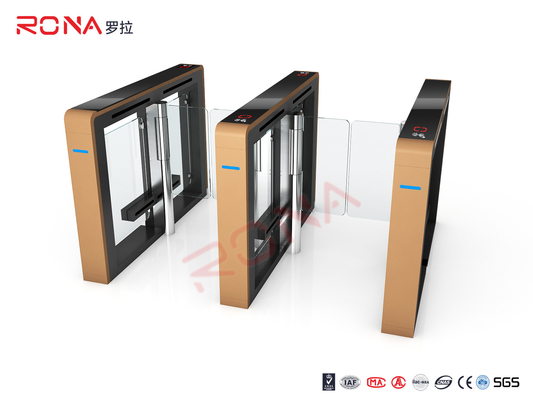

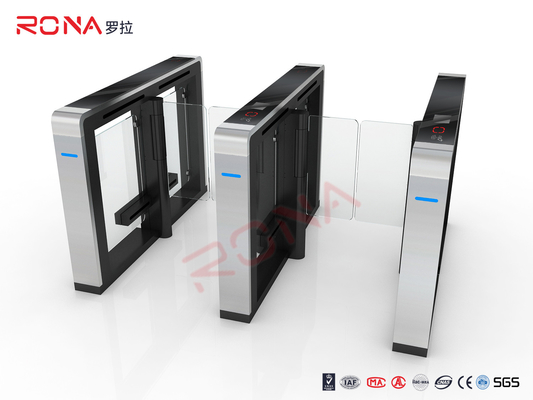

TCP / IP Security Electro Lock Door Swing Pedestrian Barrier Gate Turnstyle Fastlane Glass

Our speed gates are equipped with the latest technology, offering a range of features such as tailgating detection, and unauthorized entry alarms, ensuring a high level of security. Available in various designs, from sleek, modern aesthetics to more robust models, our gates can be customized to match any architectural style. With options for both indoor and outdoor installations, our speed gates are versatile, accommodating different environmental conditions and space requirements.

Functions

• Pass mode:We have 9 pass mode can choose, control by bidirectional& directional,free pass； normal open,normal closed which can meet difference requirements.
• memory function:This equipment can memory more than 2 pcs continuous legal signal (can memory less than 255 pcs legal signal)
• Second time open function:if people stand on the sensor area and swiping the card,or people swiping the card but another people enter to the sensor area in opposite side,Result: turnstile will not open, only after people out of the sensor area, the turnstile will open again, we called it second time open function.
• Intelligent anti-pinch function:We have sensor anti-pinch design / motor torque anti-pinch design /mechanical anti-pinch design, those design to make sure passage’s safety when the pass.
• Beep warning function:This turnstile will be beep to warn manager that illegal action being happened(illegal enter, opposite enter, overdue stop, fire alarm normal open, malfunction alarm …)
• Automatic reset:After we swiping the card, during the specified time passenger Don’t pass, the turnstile system will cancel this permission and close the gate.
• Logical monitoring:9-12 pair sensor (can enlarge to 24 pair sensor), turnstile system will monitor the passenger, kids, wheelchair, luggage’s position, and also can warm alarm when have trailing, break in, opposite enter illegal action happened
• Anti-illegal collision:Before the turnstile received the enter signal, if the passenger break in the sensor area, turnstile will lock and alarm.
• Friendly LED direction:Right now our turnstile have Red cross and Green arrow light. Red cross means, we can’t pass right now.Green arrow means, we can pass right now.
• fire alarm function:Our turnstile can integrate with fire alarm device, during the emergency situation, the turnstile will open automatically to provide free passage, but after power on the turnstile will closed automatically again.
• Touch screen parameter setting:This turnstile’s parameter can set by a touch screen device, it is more convenient. 1.12,self -checking.
• This turnstile has self-checking function, after the turnstile connect with the touch screen device by cable, we can see easily what the problem the turnstile has.


Features

• This turnstile can set the turnstile work mode by control the touch screen device.
• This turnstile is newest clutch servo motor with movement.
• This turnstile motor with encoder limit device , it is makes turnstile work more accurately and efficient.
• This turnstile work synchronize is adjustable.
• LED direction will prompt the pass situation.
• This turnstile can integrate with door access control system, ticket management system, ESD system …..


Other functions which can add

• LED display counting functions
• Can enlarge second open function, this function main used for ticket management system or client want anti-feedback function.
• Voice prompt function when passenger pass.
• Normal open /close to meet difference requirements in difference project.
• Light/voice prompt function
