Place of Origin:
China
Brand Name:
RONA
Certification:
CE/ISO9001
Model Number:
RNCF F6008

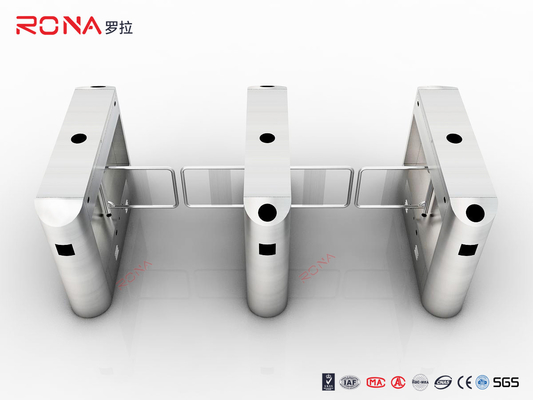

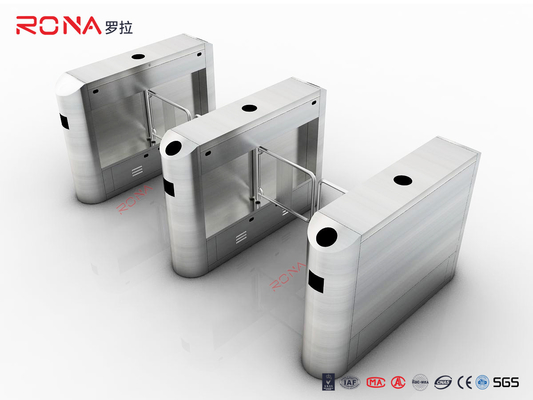

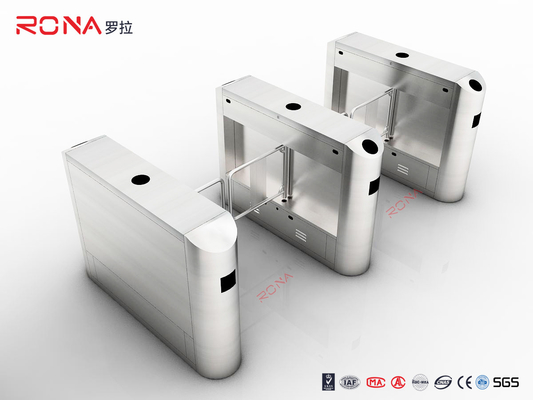

Swing barrier turnstile is one of the most widely used pedestrian access control turnstile gates, which is an upgraded product of an intelligent tripod turnstile gate. It is a high-tech product mainly for intelligent management of personnel access control. The passage lane will be controlled by the logic of the sensors. Only when the optical swing barrier turnstile gets the open signal, the passage is free to access. If not, the sensor will trigger the alarm.
A swing barrier turnstile can effectively prevent tailgating. If someone access withing a valid card, the alarm will alert the security people. A swing barrier turnstile is a perfect option if you need your space to have an open look. It can speed up the entry process. They can be in both directions running.
Functions
Technical parameters
Housing material | 304 stainless steel |
Working voltage | AC220V±10% 50HZ 60W |
Driving motor | Brushless motor |
Shape size | L1600MM*W280MM*H990MM |
Swing arm material | 304 stainless steel |
Passage width | 500-1100mm |
Direction | Single and bi-direction |
Pass speed | 30 persons/min(closed) |
Reset time after break down | 0.2 second |
MTBF | 8 million times |
Communication interface | standard RS232 interface, distance=1200m |
Input interface | Dry contact signal+12V level signal or pulse width>=100ms or 12Vpulse,drive curret>=10mA |
Working environment | indoor/outdoor(with a tent over)-10 ℃~70 ℃ |
Relative | <90% coagulation free |
Packaging
