| Brand Name: | RONA |
| Model Number: | RNCF 8008HD |
| MOQ: | 1 unit |
| Price: | negotiation |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, T/T |

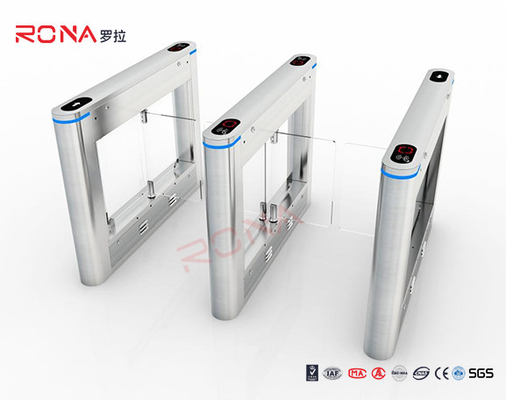

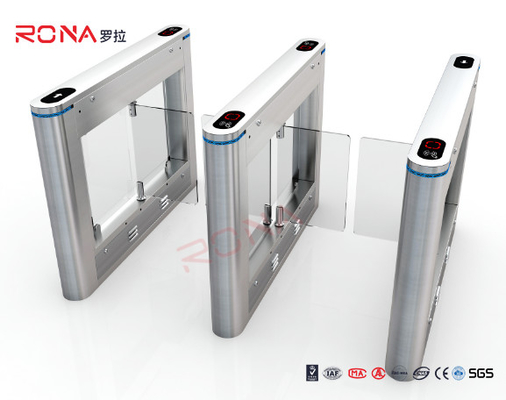

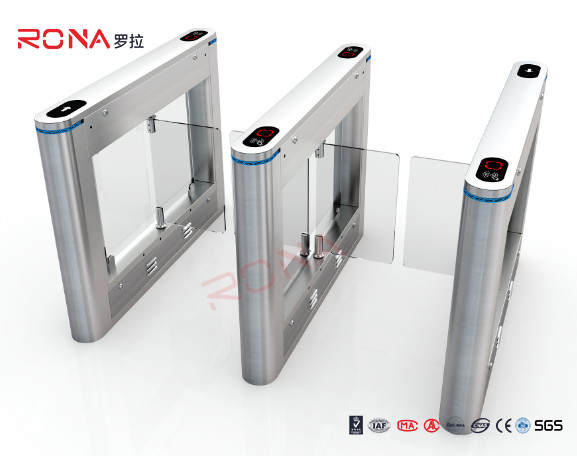

Swing barrier turnstile is one of the most widely used pedestrian access control turnstile gates, which is an upgraded product of an intelligent tripod turnstile gate. It is a high-tech product mainly for intelligent management of personnel access control. The passage lane will be controlled by the logic of the sensors. Only when the optical swing barrier turnstile gets the open signal, the passage is free to access. If not, the sensor will trigger the alarm.
The sensor commonly used by the optical turnstiles is an opposite photoelectric sensor, which can more accurately sense the human body. A swing barrier turnstile gate is equipped with multiple groups of radiation sensors to realize the in and out sensing of people. It is mainly at the gate entrance, the sector of the wing rod, and the gate exit. For accurate sensing, some optical turnstile gates install sensors at different heights of each part.
Features
Technical parameters
| Housing material | 304 stainless steel |
| Working voltage | AC220V±10% 50HZ 60W |
| Driving motor | Brushless motor |
| Shape size | L1500MM*W150MM*H980MM |
| Swing arm material | Acrylic |
| Passage width | 500-1100mm |
| Direction | Single and bi-direction |
| Pass speed | 40 person/min(open),25-30 persons/min(closed) |
| Reset time after break down | 0.2 second |
| MTBF | 8 million times |
| Communication interface | standard RS232 interface, distance=1200m |
| Input interface | Dry contact signal+12V level signal or pulse width>=100ms or 12Vpulse,drive curret>=10mA |
| Working environment | indoor/outdoor(with a tent over)-10 ℃~70 ℃ |
| Relative | <90% coagulation free |
