Place of Origin:
China
Brand Name:
RONA
Certification:
CE/ISO9001
Model Number:
RNCFH 8008-9

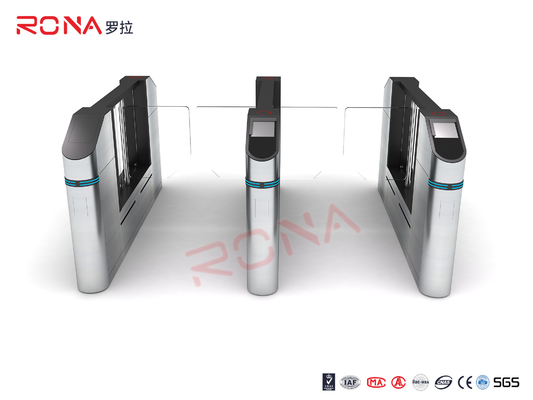

Luxury speed gate is a high-tech product which mainly provides intelligent management to passageway. This product is finely processed with complete functions and high level, suitable for high-level neighborhoods, intelligent buildings,hotel,subway,port and club,etc.
This epuipment is subtly integrated with machine, electronics,micro-processor control and ID identification,provides convenience for the use of card reader identification equipments,such as IC card,ID card,bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair,reliable security protection,alarming equipment and direction indicating equipments.
Functions&Features
1.LED ALERTS: Indicate traffic direction with highly-visible green and red. The front post LED will keep green arrow shows that the lane is available.
2.ALARM FUNCTION: Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion.
3.EMERGENCY EXIT: The function allows free passage in the event of an emergency or power outage,automatic reset when power is restored.
4.WORKING DIRECTION: Single directional or Bi-directional is optional.
5.AUTOMATIC RESET:The swing arms will lock automatically within 5s (adjustable) if a person delay to access.
6.ANTI - COLLISIN: When the gates instantaneously encounter an impulse force that is beyond the safety range, the arm will automatic reset in place. The mechanism will not be damaged at all.
7.ANTI-PASS BACK:The gate will stay in lock if someone wants to entry in the reverse direction.
8.ANTI-TRAILING: The gate will alarm if more than one person passby without permission.
9.ANTI-INTRUSION: The gate is locked automatically until a valid open signal is sent. When there is a valid signal, the gate will unlock within 0.2s (adjustable) .
Customization
Dimension: Can be made according to the client's site.
Material: 304 stainless steel to 316 stainless steel, electroplating color can be customized.
Swing arm material available in glass or acrylic.
Swing arm LED optional. The arms are more visible in the dark.
Lights and infrared sensors can be added.
Mounting base (for above floor wiring) and removable base (for temporary events) can be added.
Cutouts can be customized to fit any reader. Swipe card icon can be cancelled
LOGO can be customized.
Technical parameters
| Housing material | 304 stainless steel |
| Working voltage | AC220V±10% 50HZ 100W |
| Driving motor | Servo motor |
| Shape size | L1600mm*W200mm*H980mm |
| Swing arm length | 230~500mm |
| Swing arm material | Acrylic |
| Passage width | 500~1100mm |
| Direction | Single and bi-directional |
| Pass speed | 40 person/min(open), 25-30 persons/min(closed) |
| Reset time after break down | 0.2 second |
| Norman running life | 10 million times |
| Communication interface |
Standard RS485 interface,distance=1200m |
| Input interface | Dry contact signal+12V level signal or pulse width>=100ms or 12V pulse,drive current>=10mA |
| Working environment | indoor/outdoor(with a tent over)-10℃~70℃ |
| Relative humidity | ≤90% coagulation free |
