| Brand Name: | RONA |
| Model Number: | RNCF F6088 |
| MOQ: | 1 unit |
| Price: | negotiation |
| Delivery Time: | 7-15 work days |
| Payment Terms: | T/T, L/C |

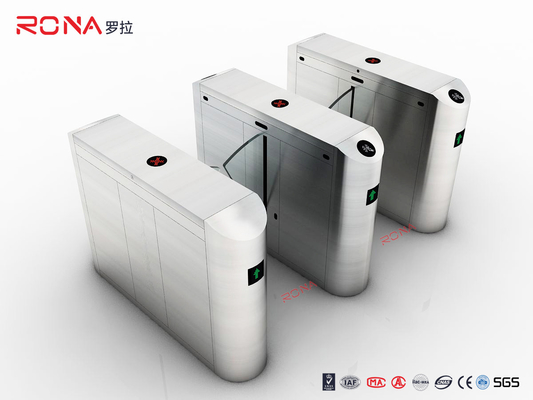

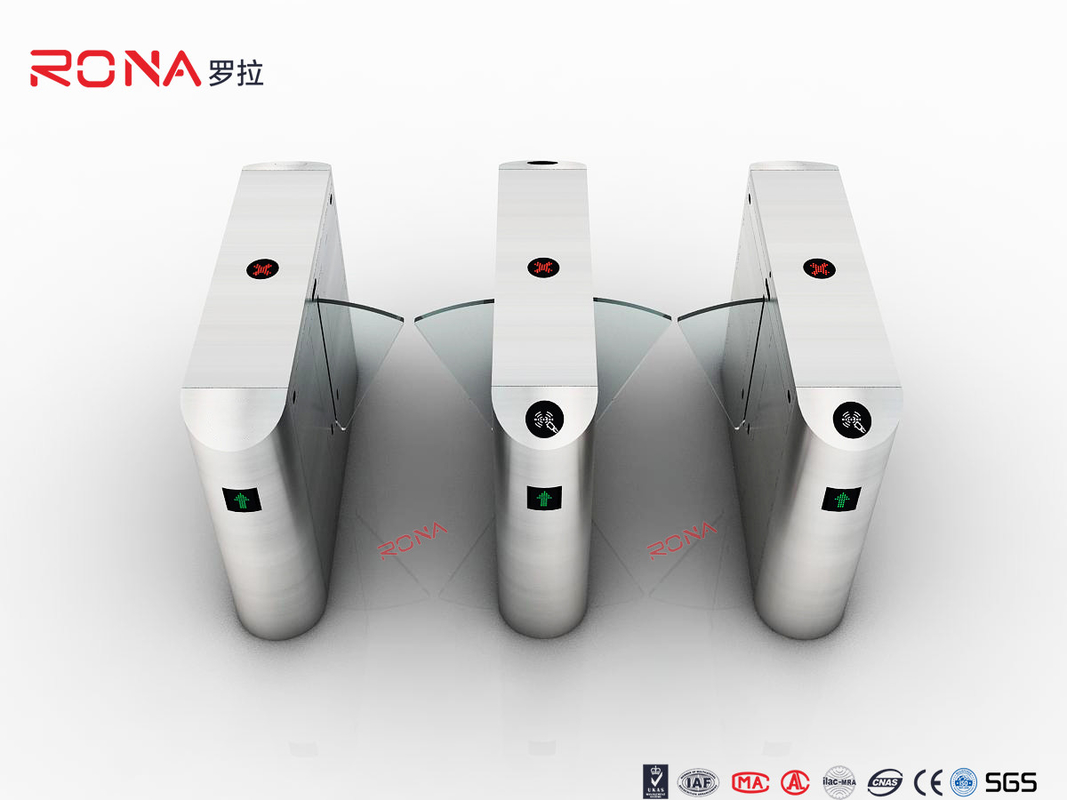

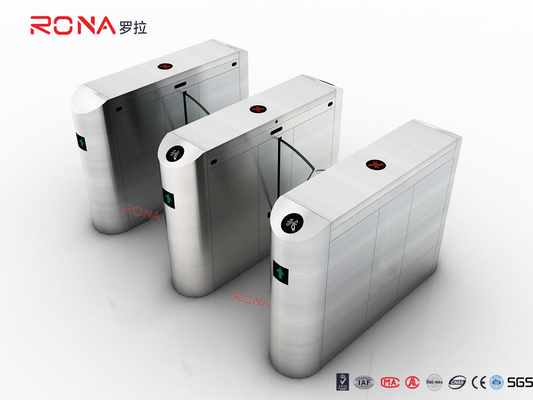

Intelligent flap turnstil is a high-tech product which mainly provides intelligent management to passage way. It is a upgrade product of intelligent tripod turnstile and swing barrier. RONA's flap turn stile is finely processed with complete functions and high level,suitable for high-level neighborhoods,intelligent buildings,hotel, subway,port and club,etc.
Single motor:suitable for single passage and multiple passage
Double motor:suitable for multiple passage.
|
Anti-pinch function: |
Mechanical / infrared Anti-pinch functions (can lead children, drag luggage, backpack, wheelchair through) |
|
Alarm function & Zero self-inspection: |
It is convenient for customer to maintain and use |
| Anti-tailgating: |
Somebody enter the gate illegal or Tailgating will trigger alarm |
| Anti-collision: |
Before received the open signal, the turnstile will lock automatically |
|
Automatic Reset Functions: |
After open turnstile, during the system time , if you don’t pass the turnstile, the system will cancel your chance to pass the turnstile automatically |
|
One way or two ways passage: |
Single or bidirectional optional to control pedestrian enter and exit |
| Remote control: |
Can manager and long-range control the turnstile directly by managing the computer. |
| Product size: | L1200*W300*H990MM |
| Retractable arm length: | 250mm |
| Max Passage width: | 550mm |
| Material: | SUS 304 stainless steel |
| Working voltage: | AC220±10%V , 50HZ |
| Drive motor: | DC24V brushless motor |
| Input interface: | Dry contact signal & 12V level signal, drive current>10mA |
| MTBF: | 8 million times |
| Communication interface: | standard RS232 interface |
| Sensor pairs: | 6 pairs |
| Pass speed: | 30 persons/min |
| Turnstile open/closed time: | 1 second |
| Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity: | ≤90% coagulation free |
