Place of Origin:
China
Brand Name:
RONA
Certification:
CE/ISO9001
Model Number:
RNCFH 8008-10
Product Introduction

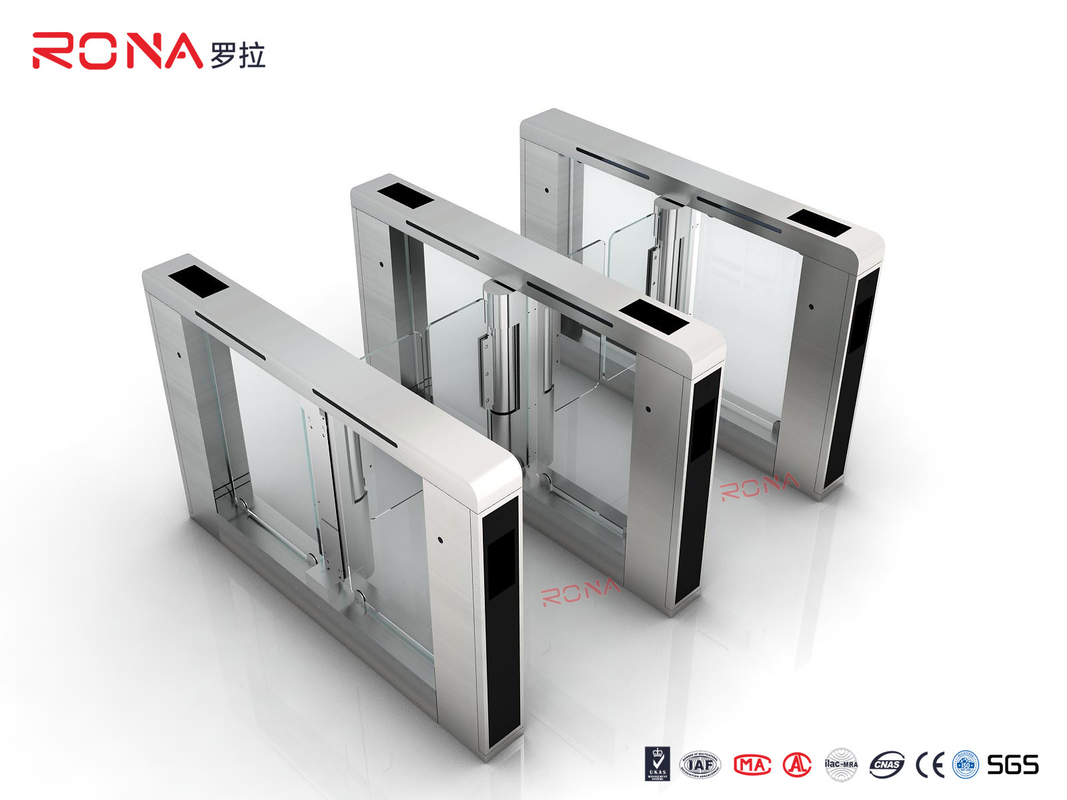

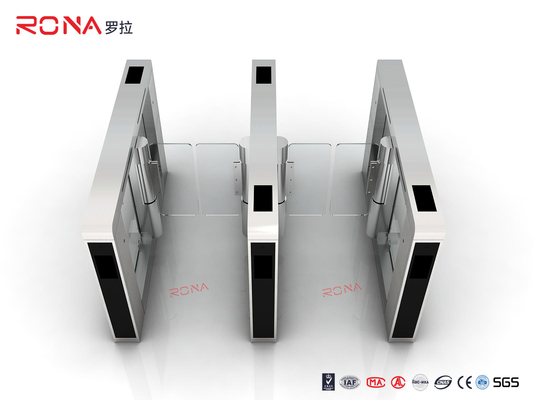

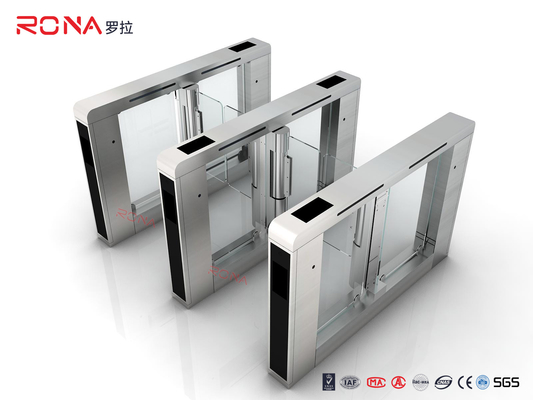

Intelligent Speed Gate Turnstile is s a high-tech product which mainly provides intelligent management to passageway.This product is finely processed with complete functions and high level.
It is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint.
It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection.
Functions&Features
6.Anti-collision movement, clutch lock, quiet and efficient.
Parameters
| Size: | L1600*W160*H1010 mm |
| Motor type: | Servo motor |
| Main board type: | V3.1 |
| Normal running life: | 8 million times |
| Sensor quantity: | 9 pairs |
| Pass speed: | 30 person/min |
| Housing material: | 304 stainless steel&Stoving varnish |
| Passage width: | ≦1100MM |
| Swing arm material: | Acrylic/Tempered glass/Stainless steel pipe(optional) |
| Input interface: | AC100-240V,50/60HZ |
| Working voltage: | DC24V |
| Working power: | 100W |
| Working temperature: | -15℃-70℃ |
| Working humidity: | 5%-90% |
| Working environment: | Indoor/Semi-outdoor(with shade) |
| Input interface: | Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA |
Usage scenario
