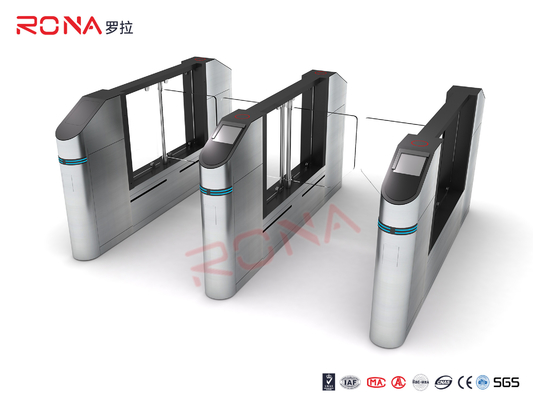

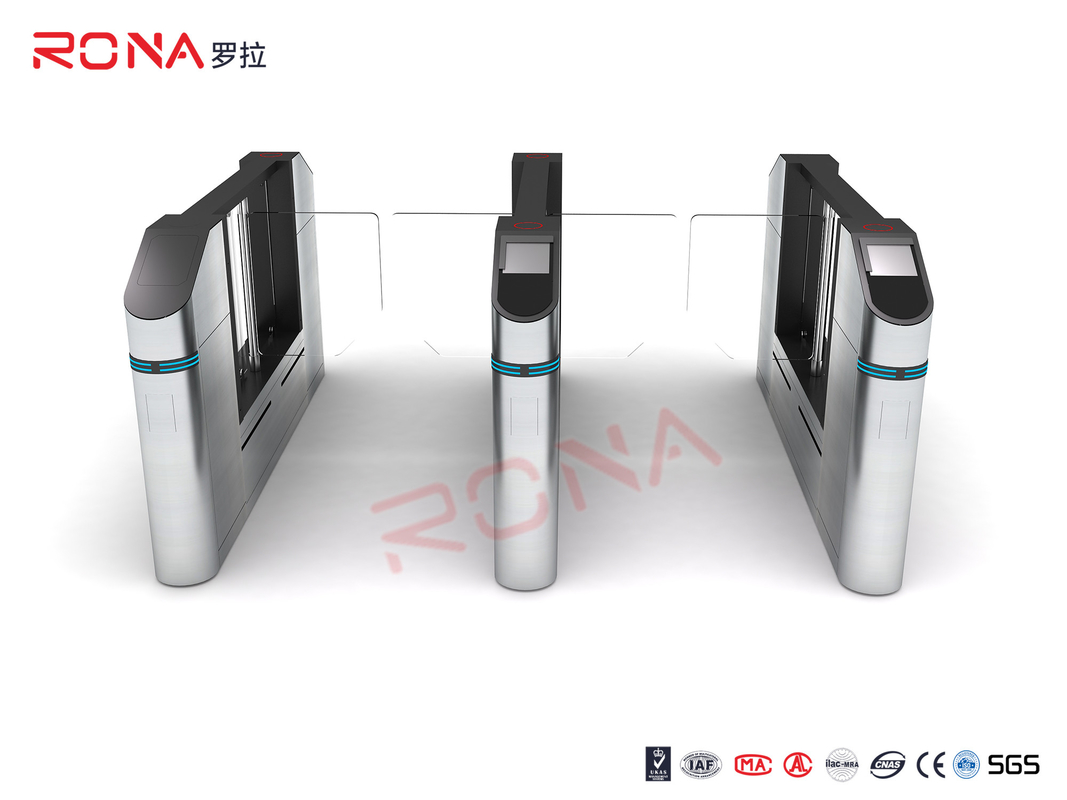

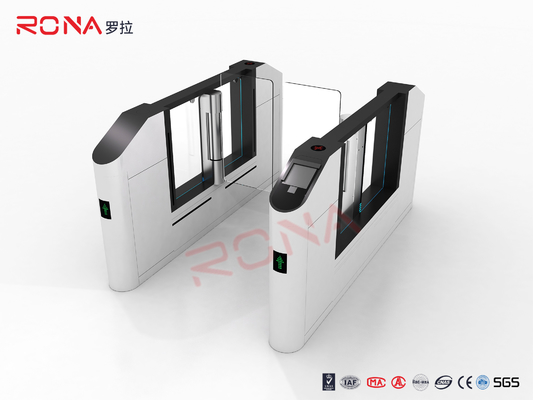

304 Stainless Steel Waist Height Turnstiles Electric Access Control Turnstile CE Approved

304 Stainless Steel Waist Height Turnstiles Electric Access Control Turnstile CE Approved

304 Stainless Steel Waist Height Turnstiles

Waist Height Turnstiles CE Approved

Electric Access Control Turnstile

Place of Origin:

China

Brand Name:

RONA

Certification:

CE/ISO9001

Model Number:

RNCFH 8008-9

Contact Us
Request A Quote
Product Details
Housing Material:
304 Stainless Steel
Motor Type:
Servo Motor
Main Board Type:
Turnstile-V3.1
Normal Running Life:
10 Million Times
Sensor Quantity:
10 Pairs Sensor
Pass Speed:
30 Persons/min
Passage Width:
500-1000mm
Warranty:
One Year
Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
Negotiation
Packaging Details
carton and wooden package
Delivery Time
7-14 working days
Payment Terms
L/C, T/T
Supply Ability
2000 units per month
Product Description

Barcode Cargo Door Waist Height Turnstiles Gate Electric Access Control Turnstile With CE Approved



Product Introduction

Speed gate turnstile is a type of pedestrian turnstile designed for swift and efficient access control.It has faster traffic speed, running speed, more accurate positioning function, and more stable operation than the swing turnstile. Speed gate turnstile is available in customizable widths and can adhere to ADA compliance standards.

Positioned as an upgraded version of the swing turnstile gate, the speed gate turnstile incorporates a superior brushless DC or servo motor integrated turnstile mechanism, making it a highly intelligent and efficient pedestrian access control management device. This equipment is equipped to thoroughly detect the passage of the human body, ensuring safety, reliability, speed, and efficiency.



Functions&Features

  • High secure level and widely applications. They are widely used in Supermarket, shopping malls, Library,Hospital ,Goverment authority,etc.
  • Anti-bump, Anti clip,anti-tailgating,anti-intrusion.During operation if the swing arm meets any resistance, it will stop immediately. After pre set time, the arm will return to close position.This function effectively prevents pedestrian especially children from bumping, clipping,striking,etc. Illegal pass like intrusion, Tailgating,piggyback,etc will be detected and prohibitted.
  • Easy installation and free maintenance.
  • More intelligent. self-examing and pre-set time operations allow our speed gates turnstile more intelligent and convenient in working. If there is no passing through in pre-set time, it will return to close status. When in fire or power failure, the door will open automatically.
  • Multiple access control .Our speed gate turnstile is compatible with international standard RS485 Intereface. This enablles its widely accomodating to all prevailing softwares in industry and supports almost all types of access control like RFID cards,Bar codes, Biometric ,etc.
  • Bi directional passing through and high passing effeciency. Bi-directional passing through reduces the need for more gates. High passing speed and accomodation for wheel Chair, strollers,etc increase the passing effeciency.



Parameters

Housing Material: 304 stainless steel
Size: 1600mm*200mm*980mm
Swing direction: one-way or two-way(can be set)
Operating voltage: AC220 ±10% V/50 ±10% HZ 50W
Drive motor: Servo motor
Input interface: Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA
Communication interface: RS232 MODBUS protocol
Passing speed: 40 people / minute (normally open), 25-30 people / minute (normally closed)
Gate opening and closing time: 1-2 seconds
Time required to enter the traffic state after power-on: 3 seconds
Automatic reset time after failure: 10 seconds
Working 13.environment: indoor, outdoor (shade)



Packaging
