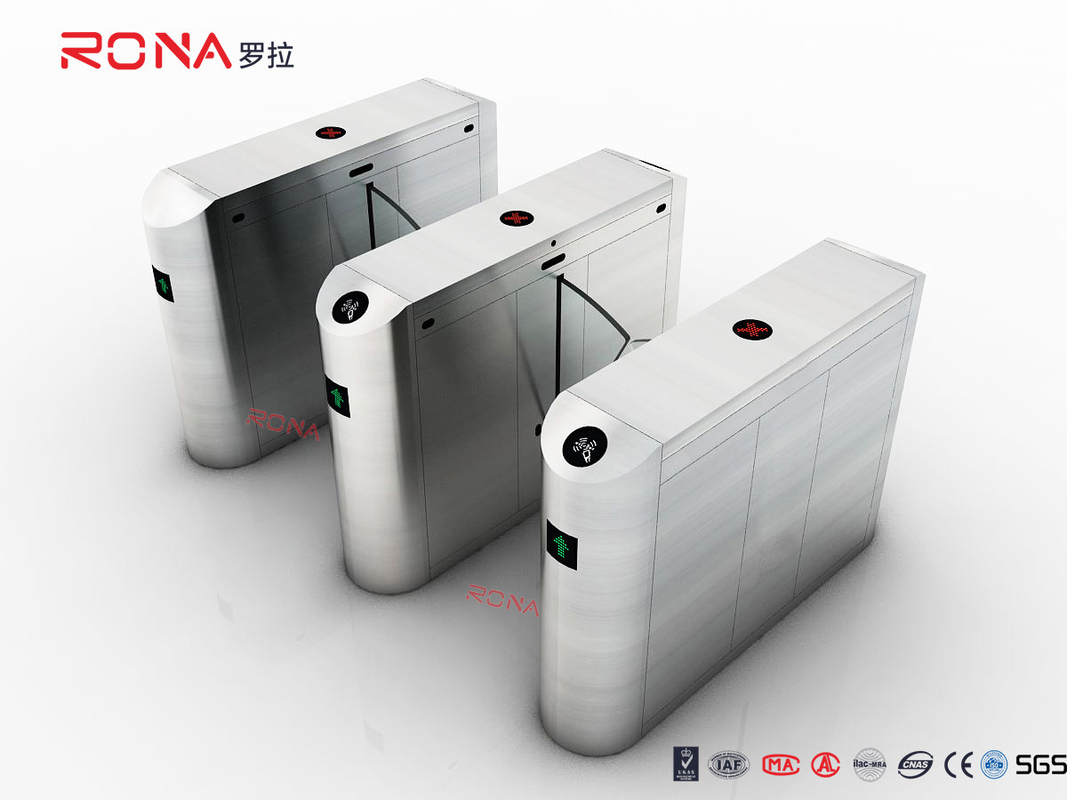

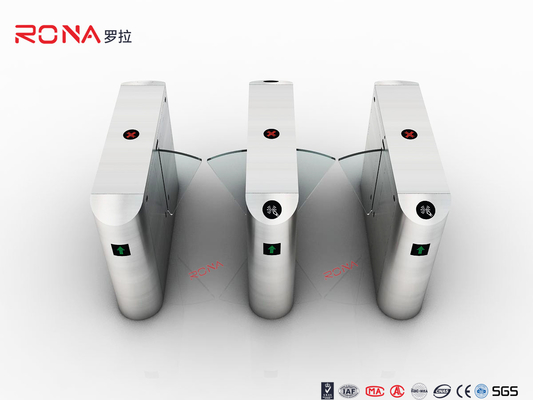

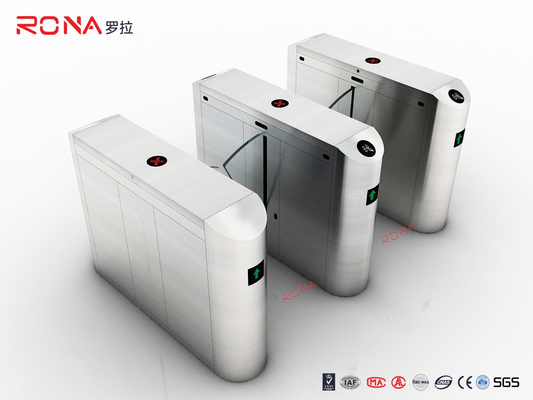

Waist Height Turnstile Barrier Gate RFID Security Systems Automatic Flap

Waist Height Turnstile Barrier Gate RFID Security Systems Automatic Flap

Waist Height Turnstile Barrier Gate

RFID Security Turnstile Barrier Gate

Automatic Flap Waist Height Turnstile

Place of Origin:


Brand Name:




Model Number:

RNCF F6088

Contact Us
Request A Quote
Product Details
Motor Type:
Brushless Motor
Main Board Type:
5 Million Times
Sensor Quantity:
6 Pairs
Pass Speed:
30 Person/nin
Housing Material:
304 Stailess Steel
Passage Width:
Payment & Shipping Terms
Minimum Order Quantity
1 pair
Packaging Details
carton and wooden packing
Delivery Time
7-15 Working Days
Payment Terms
Supply Ability
2000 unit Per Month
Product Description

Turnstile Barrier Gate Waist Height RFID Turnstile Security Systems Automatic Flap Barrier Turn Style Door


Quick Details:

Production size:

1200mm(L)*300mm(W)*990mm(H) Materials Of Housing: 304 Stainless Steel

Retractable arm length:

250 mm

Passage width: 550mm(Double flap)
Noraml running life: 5 million times Motor type: Brushless motor
Pass speed: 30 persons/min Sensor quantity: 6 pairs




Intelligent flap turnstile is s a high-tech product which mainly provides intelligent management to passageway. It is an upgrade product of intelligent tripod turnstile and swing barrier. this product is finely processed with complete functions  and high level, suitable for high-level neighborhoods, intelligent buildings, hotel, subway, port and club,etc                .


   Functions & Features

  • Alarm function & Zero self-inspection, it is convenient for customer to maintain and use.
  • Turnstile can set the working condition by press the button of main control board.
  • Anti-pinch function: turnstile have Mechanical / infrared Anti-pinch functions (the arms are produced by Soft rubber ).
  • Somebody enter the gate illegal or Tailgating will trigger alarm.
  • Before received the open signal, the turnstile will lock automatically.
  • The arms can be adjusted.(For double swing arms).
  • The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
  • Single or bidirectional optional to control pedestrian enter and exit.
  • Can manager and long-range control the turnstile directly by managing the computer.


    Extended functions

  • LED counting function
  • Voice Prompt and light alarm functions.
  • We can install thermostat in the turnstile during the low temperature region.


    Standard Technical parameters

Working voltage:

AC220±10%V , 50HZ

Input interface

Dry contact signal & 12V level signal, drive current>10mA

Communication interface:

standard RS485 interface

Turnstile open / closed time:

1 second

Working environment:

indoor/outdoor (with a tent over) -10℃~70℃

Relative humidity:

≤90% coagulation free

Working  power: 100W



Cases of Flap Barrier gate RNCF F6088
