304 Stainless Steel Card Read Security Turnstile Gate Pedestrian Control System

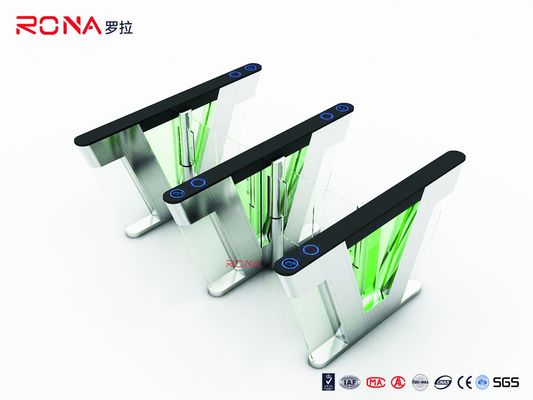

304 Stainless Steel Card Read Security Turnstile Gate Pedestrian Control System

304 Stainless Steel Security Turnstile Gate

Card Read pedestrian turnstile gate

Pedestrian Control Security Turnstile Gate

Place of Origin:


Brand Name:




Model Number:

RNCFH 8008-16

Contact Us
Request A Quote
Product Details
Motor Type:
Servo Motor
Main Board Type:
ARM Controller
8 Million Times
Sensor Quantity:
10 Pairs
Pass Speed:
30 Person/nin
Housing Material:
304 Stailess Steel
Passage Width:
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
L/C, T/T
Supply Ability
2000 unit per month
Product Description

304 Stainless Steel Card Read Luxury Turnstile Gate Security Pedestrian Control System


Product Introduction


Speed gate turnstile has a high-cost performance. Widely used in high-end commercial occasions, the lobby of buildings, railway stations, subway stations, scenic spots, etc.


The rise of the speed gate turnstile is after the swing turnstile gate, which can be said to be an upgraded version of the swing turnstile gate. As the name suggests, the function of security speed gates is to make people flow quickly under the premise of safety management circulation, which is the main reason why speed gates have been widely welcomed by society after their birth.




  • Safety: intelligent anti-pinch, anti-collision, anti-tailing, and alarm functions, to ensure the safety of personnel in and out of enterprises, factories, stations, office buildings, and other places.
  • Easy maintenance:a power-off memory function can continue to work after powering on without a system crash, data reset, etc.
  • Expandable:support expansion, which can expand multiple subsystems or add multiple peripheral accessories.
  • Durable and reliable:304 stainless steel is selected, which is not only durable but also rust and corrosion-resistant.
  • Simple setting:the operation setting needs to be simple and easy to use.
  • Self-inspection function:When the speed turnstile gate fails, different indicator information can be displayed.


Technical Parameters

Size: L1500*W150*H990 mm
Motor type: Servo motor
Main board type: ARM
Normal running life: 8million times
Sensor quantity: 10 pairs
Pass speed: 30 person/min
Housing material: 304 stainless steel
Passage width: 500-1050MM
Swing arm material: Acrylic/Tempered glass/Stainless steel pipe(optional)
Input interface: AC100-240V,50/60HZ
Working voltage: DC24V
Working power: 60W
Working temperature: -15℃-70℃
Working humidity: 5%-90%
Working environment: Indoor/Semi-outdoor(with shade)
Input interface: Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA




Airport,Intelligent buliding,Goverment,Customs,Hotel,etc.
