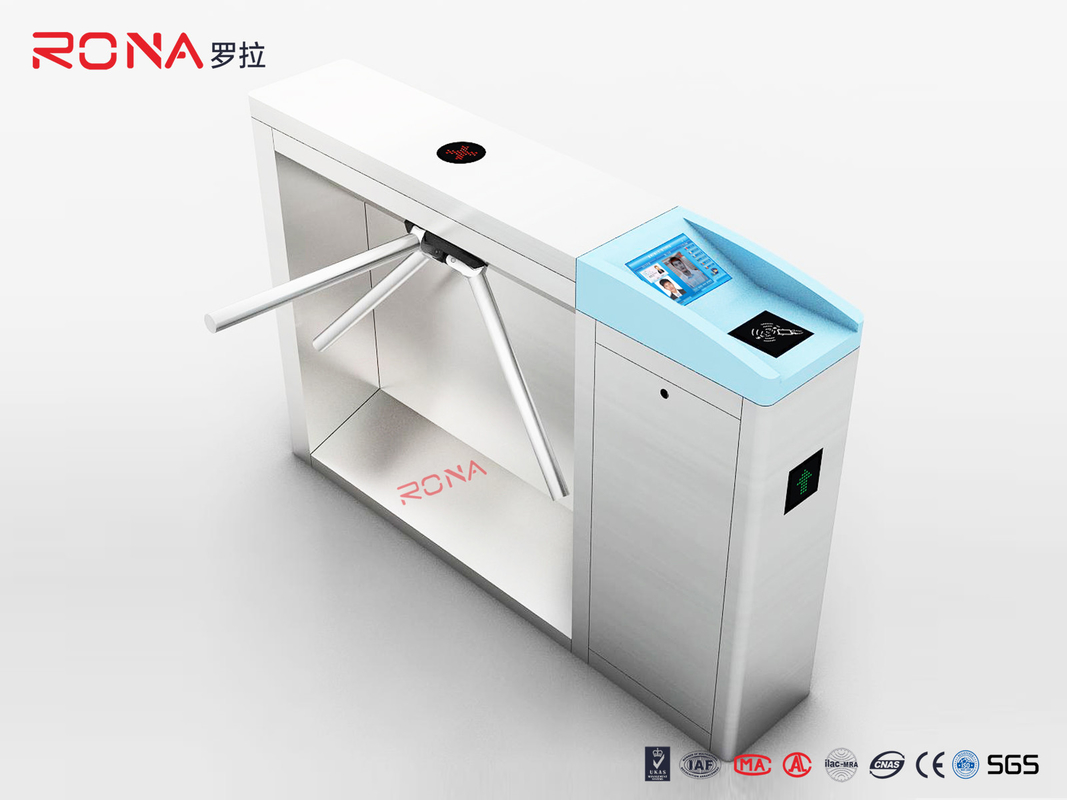

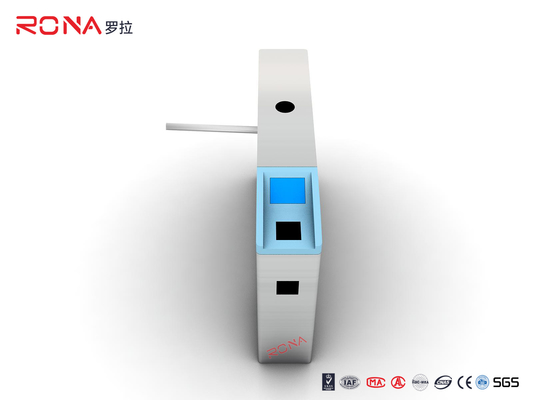

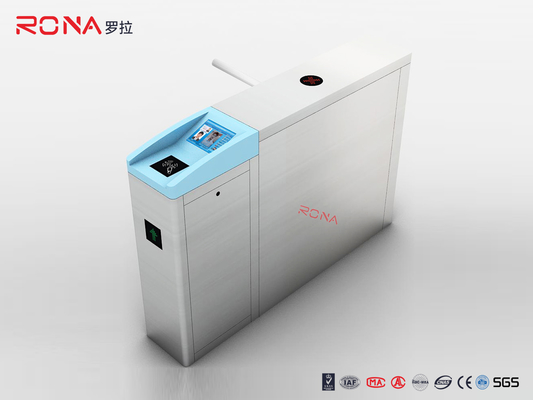

Barcode Reader Tripod Turnstile Security Gates For Gym Entrance Control

Barcode Reader Tripod Turnstile Security Gates With Gym Entrance Control With 304# SUS

STANDARD FEATURES & FUNCTIONS:

• The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.
• The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc.
• Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller.
• Multi-alarm function: when the arms are pushed by force illegally, alarm will be triggered automatically and the arms will be set locked (the duration of the alarm and lock is adjustable by changing parameter of main control board).
• Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board).
• Automatic-rotation function: once an open signal is given, the arms will rotate automatically.
• Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.
• Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home
• Optional indication of Mulit LED
• Optional indication of inside LED counter or outside LED counter
• With interface of switch of relay, compatible with all the access controller
• Equipped with free control software for man-machine interface & control command SDK.
• Through the management computer to realize remote control and management.

PRODUCT CLASSIFICATIONS:
Semi-Automatic Type: When power off, it will be dropped the arm to the request of fire protection. When the power is on again, the arms can also lift by hand. Once an open signal is given, it need to manual push the arm to rotate.

PRODUCT DESCRIPTIONS:
The tripod turnstile controls pedestrian access between public and secure areas. The tripod turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, bar-code scanner, ID/IC card reader, time & attendance system, coin collector, card collector, biometric systems (fingerprint & face recognition), consumption system, ESD system and fare collection system, etc.

CUSTOMIZED FEATURES:

1. Alternative Materials, Finishes and Custom Design

2. Usage LED Counter function

3. Audio and visual alarm in the event of an invalid entry.

4. Remote-Controlled Button

5. Camera System Integration

6. Thermostat System Integration

Technical parameters
