CE Approved Flap Barrier Gate Access Control System For Subway Station

Name: CE Approved Flap Barrier Gate Access Control System For Subway Station
Brand: Shenzhen Rona Intelligent Technology Co., Ltd
SKU: RNCF 2088HD
Availability: InStock

Brand Name:	RONA
Model Number:	RNCF 2088HD
MOQ:	1 unit
Price:	negotiation
Delivery Time:	7-15 work days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ISO9001

Housing Material:

304 Stainless Steel

Working Voltage:

AC100-220V,50/60HZ

Driving Motor:

DC24V Brushless Motor

Dimension:

1500MM*300MM*1000MM

Passage Width:

550mm

Direction:

Single/bi-direction

Packaging Details:

carton and wooden packing

Supply Ability:

2000 unit per month

Highlight:

CE Approved Flap Barrier Gate

Flap Barrier Gate For Subway Station

Subway Station Access Control Turnstile

Product Description

CE Approved Flap Barrier Gate Access Control System For Subway Station

Product Definition

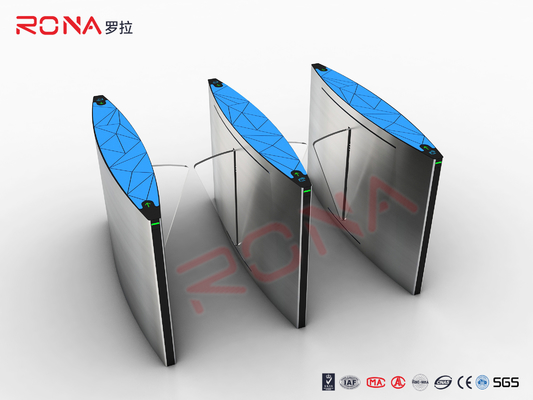

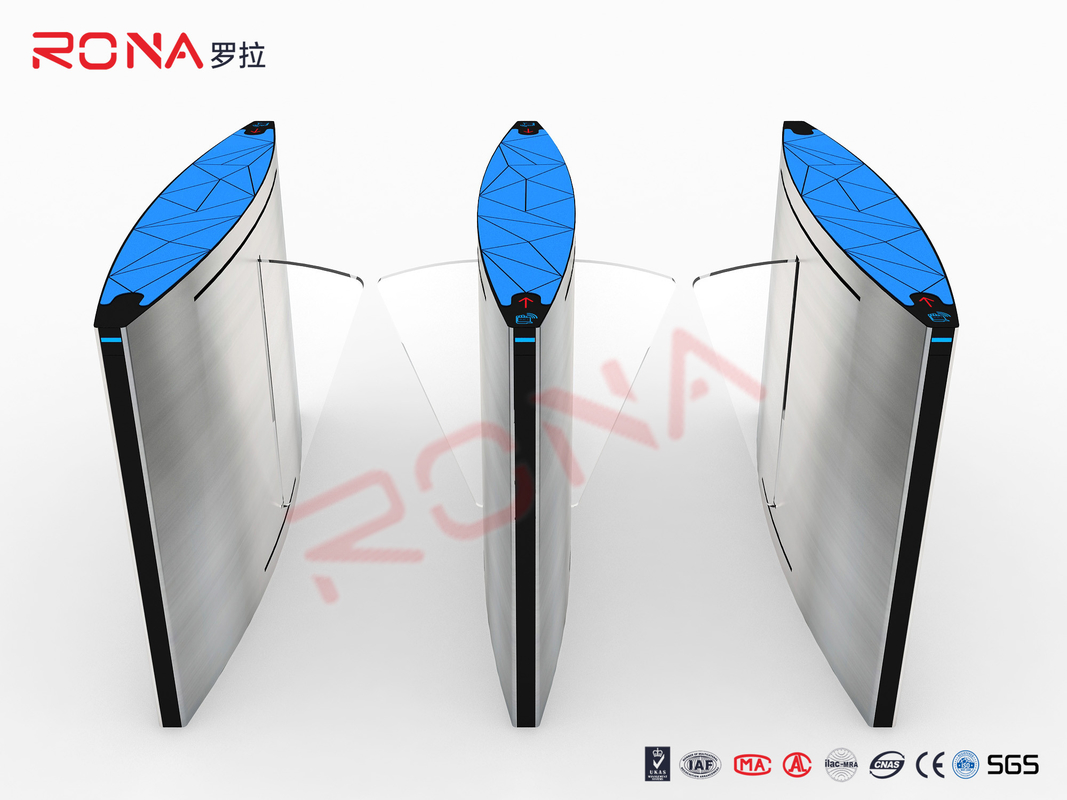

Flap barrier turnstiles are electronic optical turnstiles with glass panels (or flaps). These glass panels extend from a pair of optical turnstile cabinets. The panels meet in the middle of the two cabinets to form a pedestrian barrier. A flap barrier turnstile is an aesthetically pleasing security and access control solution.

Functions

It has the function of a self-reporting fault prompt, which is convenient for users to use and maintain;
It has the functions of traffic indication and channel indication;
It has the function of normally open key
It has the functions of automatic opening of power-off swing door and automatic closing when powered on;
It has the function of line self-inspection;
It has the function of an illegal intrusion alarm;
It has a triple anti-pinch protection function;
The traffic mode can be adjusted freely;
The closing time and mode can be adjusted arbitrarily;
Remote control and management.
It can be connected with an all-in-one smart card such as duomo elevator/parking lot/access control/consumption.

Technical Parameters

Size: L1500*W300*H1000 mm

Retractable arm length: 250 mm

Max Passage width: 550 mm

Material: SUS 304 stainless steel

Working voltage: AC220±10%V , 50HZ

Drive motor: DC24V brush motor

Input interface: Dry contact signal & 12V level signal, drive current>10mA

Normal running life: More than 5 million

Communication interface: Standard RS485 interface

Sensor pairs : 6 pairs

Pass speed: 30 persons/min

Turnstile open / closed time: 1 second

Working environment: indoor/outdoor (with a tent over) -10℃～70℃

Relative humidity: ≤90% coagulation free
