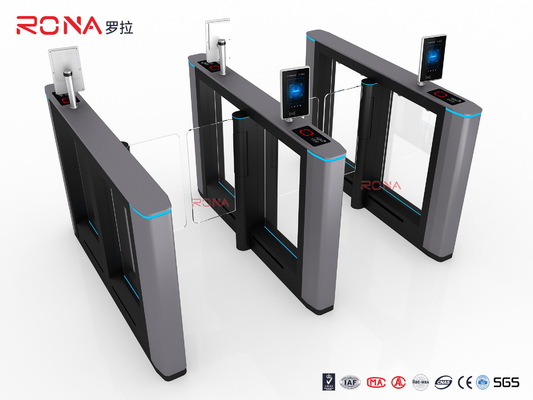

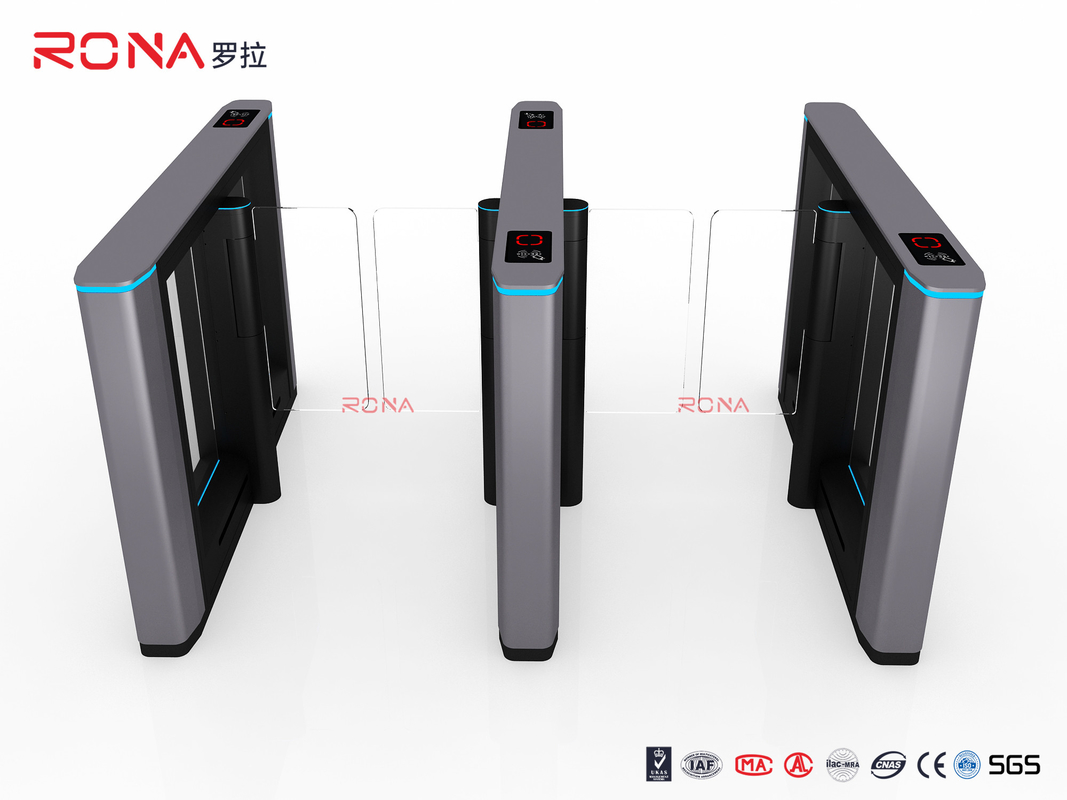

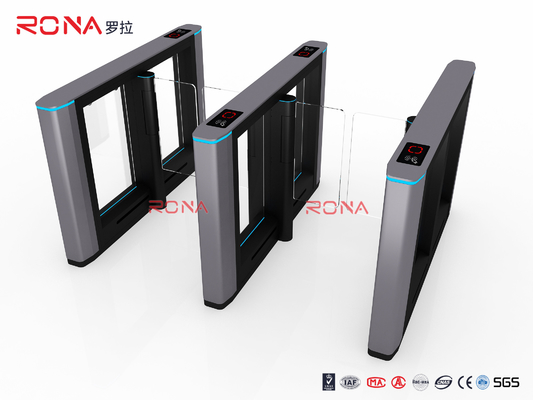

Stainless Steel Bi - Directional Speed Gate Turnstile With Fingerprint Ticketing System

Name: Stainless Steel Bi - Directional Speed Gate Turnstile With Fingerprint Ticketing System
Brand: Shenzhen Rona Intelligent Technology Co., Ltd
SKU: RNCFH 8008-13
Availability: InStock

Brand Name:	RONA
Model Number:	RNCFH 8008-13
MOQ:	1 unit
Price:	negotiation
Delivery Time:	7-15 work days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ISO9001

Housing Material:

304 Stailess Steel&Stoving Varnish

Working Voltage:

AC100-220V,50/60HZ

Driving Motor:

Servo Motro

Dimension:

1500MM*200MM*990MM

Swing Arm Material:

Arylic

Direction:

Single/bi-direction

Packaging Details:

carton and wooden packing

Supply Ability:

2000 unit per month

Highlight:

Speed Gate Turnstile With Fingerprint

Bi - Directional Speed Gate Turnstile

Stainless Steel fastlane speed gates

Product Description

Stainless Steel Bi - Directional Speed Gate Turnstile Security Gates With Fingerprint Ticketing System

Product Description

The speed gate is a high-end intelligent swing barrier turnstile product,which can fully detect the passing situation of the human body.The housing material is 304 stainless steel which is anti-rust and durable and high resistance.These speed gates turnstiles are widely used in the bus station, ports, subways, factories, residential areas, hotels, companies, and so on.

Functions&Features

Fault self-check function and alarm prompt, which is convenient for users to maintain and use.
It can be connected with any control signal or button and can be output by any control device to realize one-way and two-way control.
High-intensity traffic light status indication.
6 pairs of IR light detectors: permissions validation and anti-tailgating.
Door remaining open when fire alarm triggered: the door wings will be free status.
Built-in access control board and card readers.
Face recognition.
Remote control: The device integrates a wireless receiver,which can be use with a remote control keyfob to open the door remotely.
Working mode: Controlled,mormally open,normally close,auto-detect in both direction.
Anti-illegal collision:Before the turnstile received the enter signal, if the passenger break in the sensor area, turnstile will lock and alarm.
Intelligent anti-pinch function:We have sensor anti-pinch design / motor torque anti-pinch design /mechanical anti-pinch design, those design to make sure passage’s safety when the pass.

Technical Parameter

Passage direction:	Single-directional/Bi-directional
Passage Width:	500-1000MM
Pass rate:	25-30 person per minute
Operating time:	0.2 second
Working voltage:	DC24V
Working humidity:	5%~90%
Working temperature:	-15℃~+70℃
Working environment:	Indoor
Input interface:	RS232 Dry contact
Mechanism:	DC24V Brushless Motor
Infrared sensor:	6 pairs
MCBF:	5 million times
Application:	Airports, Hotels, Government Halls, etc
