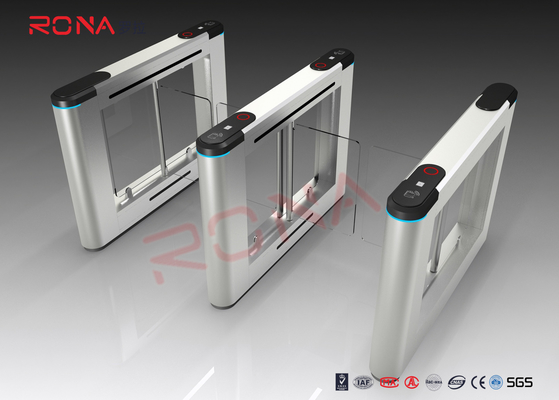

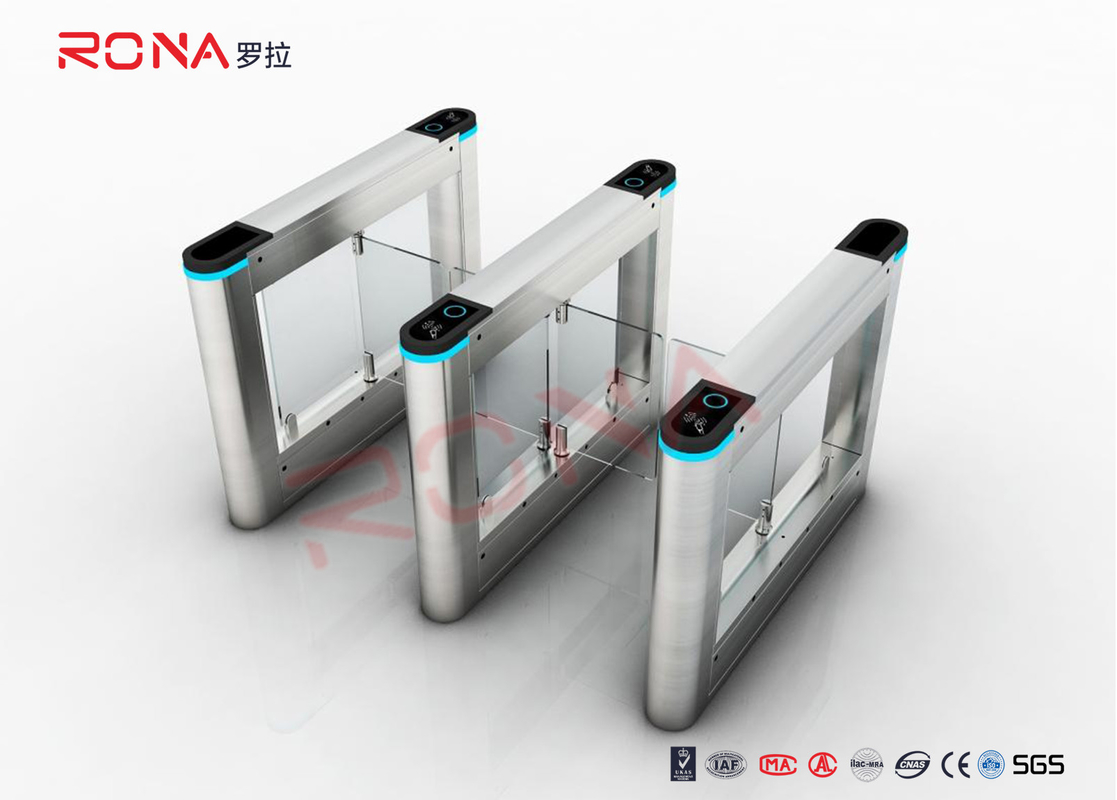

Fastlane Swing Barrier Gate Silver Polishing With Dry Contact Interface
Intelligent Swing Turnstile is s a high-tech product which mainly provides intelligent management to passageway.This product is finely processed with complete functions and high level.
It is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint.
It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection.
|The device supports flexible configuration of working mode (controlled, normally open, normally closed, auto-detect) in both direction.
|The equipment is equipped with super capacitors as standard. When the power is cut off, the door will automatically open, so that people can pass freely.
|The device integrates a wireless receiver, which can be used with a remote control keyfob to open the door remotely.
the device supports tamper alarm, blacklist alarm, etc.
When an unauthorized person follows or enters in the opposite direction and triggers the infrared, the sound and light alarm will be linked.
|The device supports cross-controller anti-passback function, effectively preventing unauthorized personnel from entering.
|The brightness and color of the strip lights can be customized and adjusted to meet customer preferences and environmental fusion.
Size: L1600*W180*H980 mm
Motor type: DC24V brushless motor
Main board type: V2.6
Normal running life: 5 million times
Sensor quantity: 6-10 pairs
Pass speed: 25-30 person/min
Housing material: 304 stainless steel&Stoving varnish
Passage width: 500-100MM
Swing arm material: Acrylic/Tempered glass/Stainless steel pipe(optional)
Input interface: AC100-240V,50/60HZ
Working voltage: DC24V
Working power: 60-100W
Working temperature: -15℃-70℃
Working humidity: 5%-90%
Working environment: Indoor/Semi-outdoor(with shade)
Input interface: Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA
