Rfid Automatic Swing Gate Turnstile Smart Arm Revolving Door Security Access Control

Rfid Automatic Swing Gate Turnstile Smart Arm Revolving Door Security Access Control

rfid swing gate turnstile

servo motor swing gate turnstile

servo motor swing turnstile

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Motor Type:
Servo Motor
Main Board Type:
Normal Running Life:
10 Million Times
Sensor Quantity:
10 Pairs
Pass Speed:
30 Person/nin
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
L/C, T/T
Supply Ability
2000 unit per month
Product Description

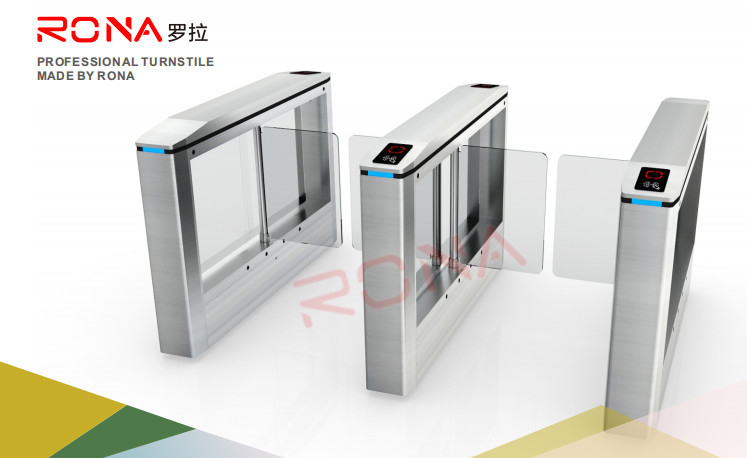

RFID Automatic Swing Turnstile Smart Arm Revolving Door Security Access Control Turnstile


Product Introducting


Intelligent Swing Turnstile is s a high-tech product which mainly provides intelligent management to passageway.This product is finely processed with complete functions and high level.


It is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipments, such as IC card, ID card, bar code and fingerprint.



It can carry out intelligent control and management to the passageway through choosing various identification equipments and adopting fair, reliable security protection.




➭The housing material is 304 stainless steel, it is very durable.

➭Break-in alarm. Trailing alarm.When reverse entry occurs,the gate closes automatically

➭Anti-pinch function, infrared induction anti-pinch function.

➭With standard fire alarm input interface, the device will unconditionally open first after receiving the fire alarm signal.

➭Gate opening and closing time is 0.8~3s.Time required to enter the traffic state after power-on is 3s

➭Anti-collision movement, clutch lock, quiet and efficient

➭The motor type is sensor motor.Use the numerical control encoder to limit, accurate, efficient and low failure rate.

➭With a zero-bit self-inspection function, easy for users to maintain and use.

➭Remote control and management can be realized through the management computer directly.



Technical Parameters

Size: L1500*W200*H980 mm
Motor type: Servo motor
Main board type: V3.1
Normal running life: 8 million times
Sensor quantity: 10 pairs
Pass speed: 30 person/min
Housing material: 304 stainless steel&Stoving varnish
Passage width: 550-1050MM
Swing arm material: Acrylic/Tempered glass/Stainless steel pipe(optional)
Input interface: AC100-240V,50/60HZ
Working voltage: DC24V
Working power: 100W
Working temperature: -20℃-70℃
Working humidity: 5%-90%
Working environment: Indoor/Semi-outdoor(with shade)
Input interface: Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA
