Place of Origin:
China
Brand Name:
RONA
Certification:
CE/ISO9001
Model Number:
RNCF 1008HD

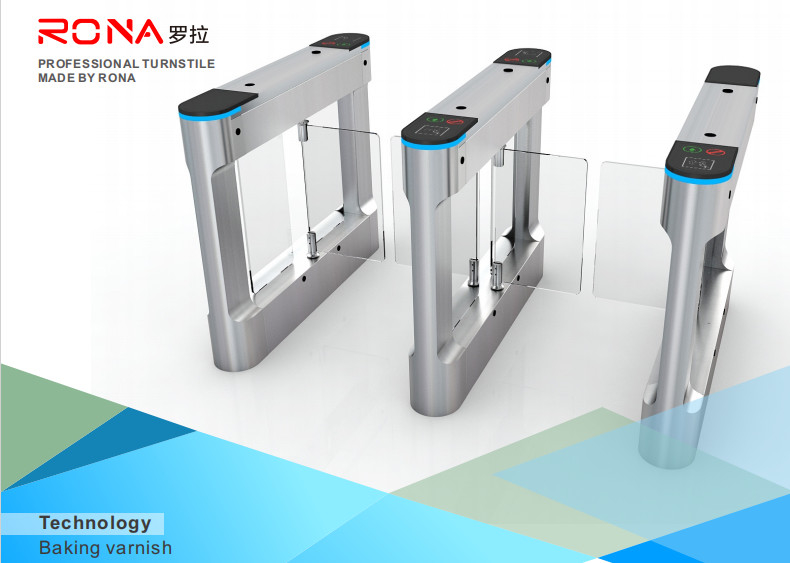

Product details
Cabinet
1) Industry standard 304 stainless steel
2) With CE,ISO9001 certification
Control Board
1) Surpport SDK, open RS485 protocal
2) Self development with patent protection
3) Protective box design, moisture-proof,mildew proof,salt fog proof,user-friendly key operation
Mechanism Core
1) Model design,easy to assemble
2) High precision machining technology
3) MFBT:8 million times/cycles
Technical Parameters
| Size: | L1200*W180*H1000 mm |
| Motor type: | Servo motor |
| Main board type: | V3.1 |
| Normal running life: | 10 million times |
| Sensor quantity: | 10 pairs |
| Pass speed: | 30 person/min |
| Housing material: | 304 stainless steel&Stoving varnish |
| Passage width: | 550-1000MM |
| Swing arm material: | Acrylic/Tempered glass/Stainless steel pipe(optional) |
| Input interface: | AC100-240V,50/60HZ |
| Working voltage: | DC24V |
| Working power: | 100W |
| Working temperature: | -20℃-70℃ |
| Working humidity: | 5%-90% |
| Working environment: | Indoor/Semi-outdoor(with shade) |
| Input interface: | Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA |
Access ctrol system
