Rfid Card Reader Fingerprint Speed Gate Turnstile Stainless Steel For Office Building

Rfid Card Reader Fingerprint Speed Gate Turnstile Stainless Steel For Office Building

rfid card reader speed gate turnstile

office building speed gate turnstile

stainless steel fingerprint speedlane turnstile

Place of Origin:


Brand Name:




Model Number:

RNCF H8008-29

Contact Us
Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
L/C, T/T
Supply Ability
2000 unit per month
Product Description

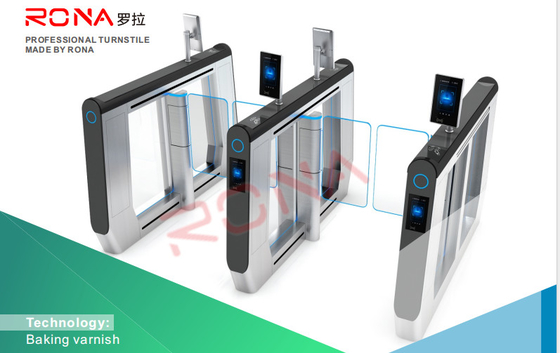

RFID Card Reader Fingerprint Stainless Steel Speed Gate Turnstiles For Office Building


Product description


The fastlane turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.


The fastlane turnstile controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.





Housing material 304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
Product size(mm) 1600L*160W*1000H
Main board type V3.1
Main board chip Arm
Motor type Brushless servo motor
Movement Anti-collision and noe-destructive movement
Power voltage AC220V±10%, 50Hz±10%
In-built Infrared 10 pairs/passageway
Passing speed in normally open mode 30 persons/min
Passing speed in normally closed mode 25 persons/min
Passage Width 550mm ~1050mm
Swinging direction unidirectional or bi-directional
Opening / closing time 0.1 seconds
The time required to running state after power on 3 seconds
Automatic reset time after the failure 1 seconds
Mean time to failure min. 5 000 000
Operation temperature -10℃ ~ +70℃
Relative humidity less than 95% not condensed
Working Environment Indoor/Outdoor (with rain-tent cover)
Input port relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal
Communications port RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet




 Features & Functions

  • The fastlane turnstile system can easily integrates with the 3rd party equipment, such as Biometric systems, consumption systems, ESD system and access control system, etc.
  • Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch-button or access controller.
  • Automatic check fault and alarm prompt function: to convenient for users to maintain.
  • The running status of device can be set up through pressing the built-in small keyboard of the main control board.
  • The device is locked until a valid open signal is received.
  • Infrared detection sensors: The device uses several infrared sensors transmitter and receiver type. The sensors are positioned at two different heights to defend against people trying to roll/crawl through the lane without being detected. The sensors are positioned at approximately knee height and waist height. The sensors can detect abnormal access and turnstile system will stay locked.
  • Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several photo sensors to prevent turnstile closure on a person while inside the lane.
  • Reset automatically function: ① the gates can locked automatically when it be forcibly pushed 10 degrees. ② “Go” signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable 1s ~ 60s, by changing parameter of main control board).
  • Emergency-escape function: When power off, it will be opened the gates automatically to meet the request of fire protection. Also the gates will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).
  • LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.
  • Remote control and management function: Through the management computer to realize remote control and management.
  • Streamline small footprint design that utilizes shared cabinets for multi-lane applications.
  • Smooth operating motorized barriers, the entire system runs smoothly, with a small noise and free of mechanical impact.
  • Extremely fast throughputs.




Rfid Card Reader Fingerprint Speed Gate Turnstile Stainless Steel For Office Building 0
