Metal Security Flap Barrier Gate Anti Clamp With Id Card Passport Identification

Metal Security Flap Barrier Gate Anti Clamp With Id Card Passport Identification

anti clamp flap barrier gate

brushless motor flap barrier gate

anti clamp flap barrier turnstile

Place of Origin:

China

Brand Name:

RONA

Certification:

CE/ISO9001

Model Number:

RNCF 8088HD

Contact Us
Request A Quote
Product Details
Material:
304 Stainless Steel
Size:
1400MM*300MM*1020MM
Motor Type:
DC24V Brushless Motor
Main Board Type:
V2.6
Normal Running Life:
8 Million Times
Sensor Quantity:
6 Pairs
Payment & Shipping Terms
Minimum Order Quantity
2 unit
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
L/C, T/T
Supply Ability
2000 unit per month
Product Description

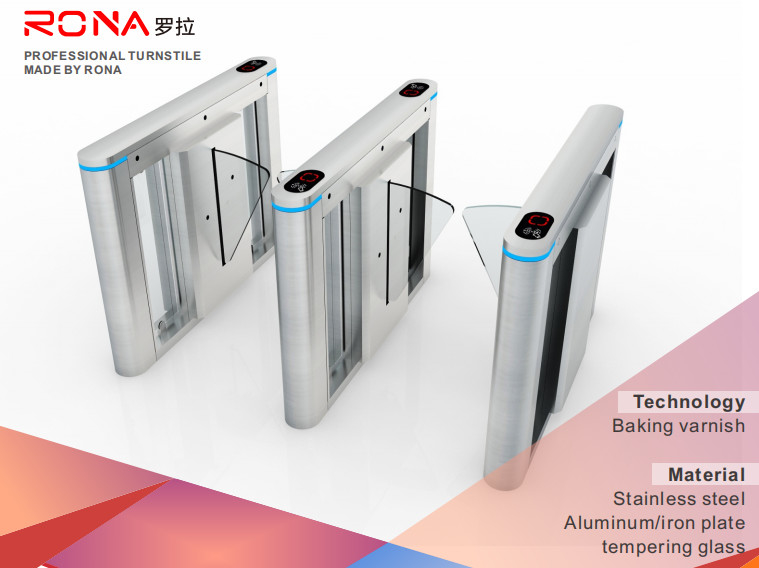

Metal Security Flap Barrier Gate Anti - Clamp With ID Card Passport Identification





Description


Intelligent flap barrier is a brand of RONA company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. RONA flap barrier has features of precise craftsmanship, comprehensive functions and high technology. It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.
Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier. Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.
Flap barrier motor can be classified into single motor and double motors. The single one is used for single lane and the double one is used for multi-lanes.







Technical parameters





Model RNCF 8088HD
Lane width 550mm
Cabinet material Stainless steel/Aluminum/iron plate
Material of Flap Door tempering glass
Housing of thickness 1.5mm
Normal Life Span 8 millions times
Communication Interface Standard RS232
Transit speed 30 persons/min
Time for opening or closing 0.2s
Starting time after power on 3s
Input interface Dry contact signal or +12Vor pulse signal with width more than100ms DC12V
Working temperature -20°C~70°C
Working environment Indoor / Outdoor (Shelter)
Relative humidity ≤95%, no condensation






Competitive Advantage



1. For all your inquires about us or our products, we will reply you in detail within 24hours.
2. We have engineers who has the experience of big turnstile engineering projects(more than 10 yars experience) to help you solve all theproblems of technical.
3. Delivery Support:
