550mm Tcp / Ip Swing Flap Barrier Security Gate Access Control For Subway Doors

550mm Tcp / Ip Swing Flap Barrier Security Gate Access Control For Subway Doors

550mm swing flap barrier

tcp / ip swing flap barrier

subway access control flap turnstile gate

Place of Origin:


Brand Name:




Model Number:

RNCF T1008

Contact Us
Request A Quote
Product Details
Product Size:
Arm Materia:
Motor Type:
Servo Motor
Sensor Quantity:
9 Pairs
Housing Material:
304 Stailess Steel
Passage Width:
Payment & Shipping Terms
Minimum Order Quantity
2 units
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
L/C, T/T
Supply Ability
2000 unit per month
Product Description

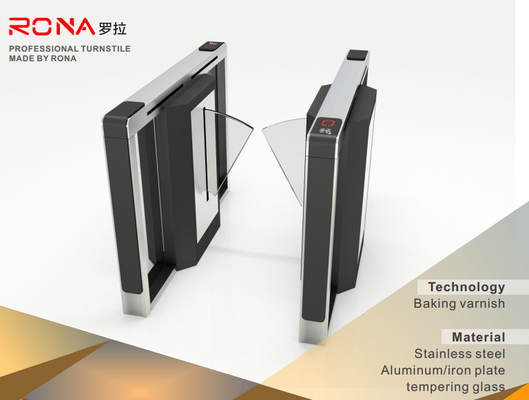

Flap Barrier Gate TCP / IP Security Gate Access Control For Subway Doors


Productin Introduction


Intelligent flap barrier is a brand of RONA company. Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control. RONA flap barrier has features of precise craftsmanship, comprehensive functions and high technology. It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.




  • Alarm function & Zero self-inspection, convenient for customer to maintain and use.
  • Anti-pinch function: turnstile have Mechanical / infrared.
  • Anti-pinch functions (the arms are Soft rubber ).
  • Somebody enter the gate illegal or Tailgating will trigger alarm.
  • Before received the open signal, the turnstile will lock automatically.
  • Open the turnstile automatically after out of power, closed turnstile automatically after connect the power, totally meet the fire protection needs.
  • The turnstile can work with door access control system/consumption system /biometric recognition system/ ESD system and so on.
  • Single or bidirectional optional to control pedestrian enter and exit.
  • Can manager and long-range control the turnstile directly by managing the computer.




Technical Parameters


Size: 1410MM*300MM*985MM
Retractable arm length: 250 mm
Max Passage width: 550 mm
Material: SUS 304 stainless steel
Working voltage: AC220±10%V , 50HZ
Drive motor: DC24V brush motor
Input interface: Dry contact signal & 12V level signal, drive current>10mA
Normal running life: More than 10 million
Communication interface: Standard RS232 interface
Sensor pairs : 9 pairs
Pass speed: 30~40 persons/min
Turnstile open / closed time: 1 second
Working environment: indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity: ≤90% coagulation free



Application(Include but not limited)

550mm Tcp / Ip Swing Flap Barrier Security Gate Access Control For Subway Doors 0
