Automatic Facial Recognition Flap Barrier Gate Turnstile Fast Lane Retractable

Automatic Facial Recognition Flap Barrier Gate Turnstile Fast Lane Retractable

automatic facial recognition flap barrier gate

fast lane flap barrier gate

retractable fast lane flap barrier turnstile

Place of Origin:


Brand Name:




Model Number:

RNCFH 3088

Contact Us
Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
Supply Ability
2000 Unit Per Month
Product Description

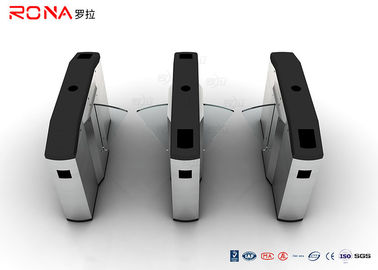

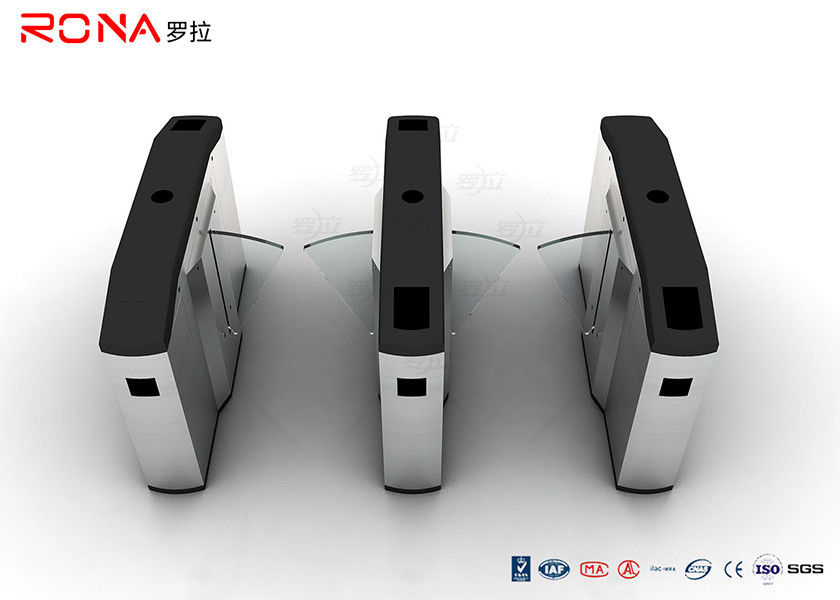

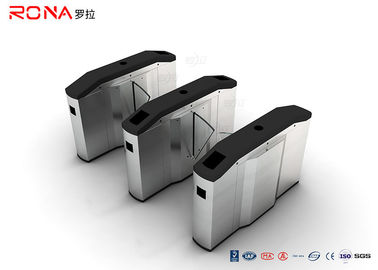

Automatic Facial Recognition Turnstile Fast Lane Retractable Flap Barrier Gate


 Product introduction

Flap barrier turnstiles are electronic optical turnstiles with glass panels (or flaps). These glass panels extend from a pair of optical turnstile cabinets. The panels meet in the middle of the two cabinets to form a pedestrian barrier. A flap barrier turnstile is an aesthetically pleasing security and access control solution.

The whole machine adopts SUS 304 stainless steel design, it is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipment, such as IC card, ID card, bar code and fingerprint.


Functions & Feature:


        Self-developed planetary gear reducer structure, driven by DC24 servo motor, compact structure, large torque, low noise

        and wear resistance.


 2,Control System:

       The self-developed servo control system, precise control, more flexible running, less mechanical impact, and longer service life.



       Frequency conversion technology, running speed adjustable, automatic opening when power off, meet different access  requirements and

       have a better experience.


 4,Mechanical Transmission Parts:

       Precisely made of high-strength plastic, pure mode design, improving the accuracy of spare parts and  assembly, more compact operation,           smaller operation gap, and longer service life.



       Acrylic arm, standardization, and refinement, surface treatment technique, the best visual effect of lighting.


Standard Technical parameters

Production side: L1400*W300*H100MM

Retractable arm length: 250 mm

Max Passage width: 550 mm

Material: SUS 304 stainless steel

Working voltage: AC220±10%V , 50HZ

Drive motor:DC24 servo motor

Input interface: Dry contact signal & 12V level signal, drive current>10mA

Normal running life: more than 3 million

Communication interface: standard RS485 interface

Sensor pairs : 6 pairs

Service port : window

Pass speed: 30~40 persons/min

Turnstile open / closed time: 1 second

Working environment: indoor/outdoor (with a tent over) -10℃~70℃

Relative humidity: ≤90% coagulation free



  • Government
  • Office building
  • Factory
  • Kindergarten,University library,College dormitory
  • Natatorium; Exhibition center
  • Transportation and rail industry
