Automatic Systems Speed Gate Turnstile For Indoor Place

Automatic Systems Speed Gate Turnstile For Indoor Place

automatic systems speed gate turnstile

indoor place speed gate turnstile

304 stainless steel speed turnstile

Place of Origin:

China

Brand Name:

RONA

Certification:

CE/ISO9001

Model Number:

RNCF 7088HD

Contact Us
Request A Quote
Product Details
Material:
304 Stainless Steel
Dimension:
1400mm*200mm*1020mm
Communication:
RS232
Unlock Time:
0.2s
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
T/T
Supply Ability
2000 Unit Per Month
Product Description

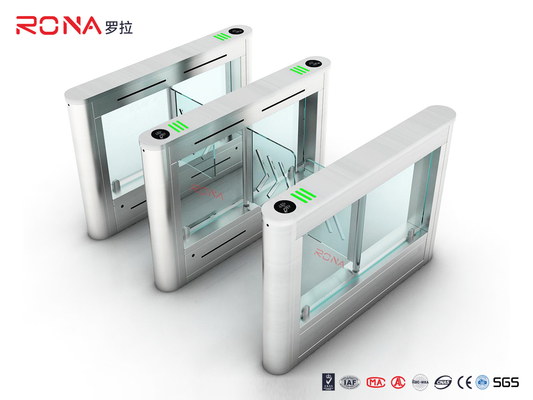

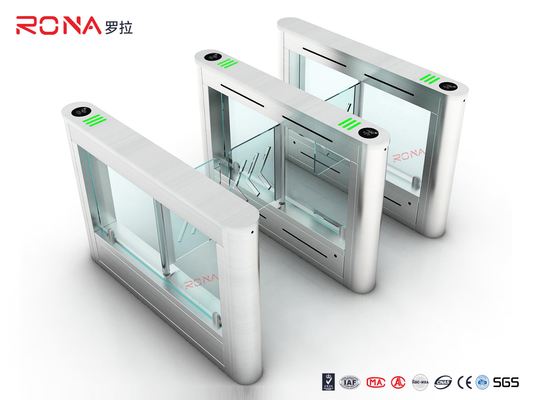

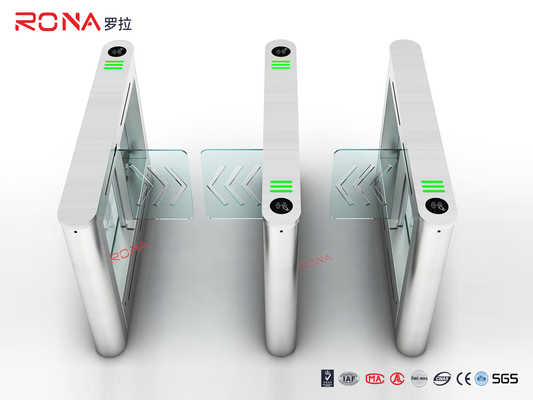

1400MM*200MM*1020MM Automatic Systems Speed Gate Turnstile For Indoor Place



   Brief Introduction

   RNCF7008HD series speed gate turnstile adopts the latest electromechanical integration control technology, advanced sensor

   Anti-tail detection system, suitable for entrance and exit areas such as ports, docks, stations, buildings, etc. Realize the entrance and exit control

   management of authorized passage



   This is an automation equipment which totally includes advanced computer technology, network technology, intelligent automation technology.



   The whole machine adopts SUS 304 stainless steel design, and the rigorous traffic logic calculation Combined with the ingenious distribution of

   sensors for human walking characteristics, it can distinguish a variety of complex traffic modes. On the premise of fully ensuring traffic safety,

   effectively prevent tailgating and provide customers with a safe, convenient and comfortable noble experience.





    Traffic Mode

  1.    Normally  open mode

            Under normal conditions, the baffle is retracted inside the chassis and the channel is Pass status, read a valid card, pass directly. Only

            after an illegal passer enters the channel, the baffle will extend and close to block the passage of passers-by. This pass mode is generally

            used for the occasions with large traffic flow or concentrated traffic.



       2.    Normally closed mode



            In this mode, when there is no traffic at ordinary times, the channel is closed state, when the passer reads a valid card, the channel is

            opened (baffle retracted into the chassis), passers can pass through smoothly.



        3. Free pass mode



            Passers can freely enter and exit the channel without reading a card. The mode is generall used to cancel the channel current limiting

            function  in some traffic peak periods in order to speed up the use of occasions.



      Product Functions

        1. Secondary opening function: If someone intrudes in the opposite direction after the passerby swipes the card, the baffle will be closed

            automatically. After the intruder exits, the baffle will open again automatically. (This feature is very applicable to authority management and

            control fields such as scenic spots and stations scene)



        2. Beep warning function:This turnstile will be beep to warn manager that illegal action being happened.



        3. Logical monitoring: 9-12 pair sensor (can enlarge to 24 pair sensor), turnstile system will monitor the passenger, kids, wheelchair,

            luggage's position, and also can warm alarm when have trailing, break in, opposite enter illegal action happened.



        4. LED indicator function



        5. Intelligent anti-pinch function: We have sensor anti-pinch design / motor torque anti-pinch design /mechanical anti-pinch design, those

            design to make sure passage’s safety when the pass.



        6.  Memory Function:The device can memorize more than 2 consecutive legal signals (including simultaneous and opposite direction),

             complete the effective passage in turn, The maximum number of memory times is 255.



        7.Touch screen parameter setting: The parameter of this turnstile can be set through the touch screen, simple and convenient.





        Technical Parameter

Size: 1400MM*200MM*1020MM
Motor type: Servo motor
Main board type: V206
Normal running life: 5 million times
Sensor quantity: 9-12 pairs
Pass speed: 25-30 person/min
Housing material: 304 stainless steel&Stoving varnish
Passage width: 500-100MM
Swing arm material: Acrylic
Input interface: AC100-240V,50/60HZ
Working voltage: DC24V
Working power: 60-100W
Working temperature: -15℃-70℃
Working humidity: 5%-90%
Working environment: Indoor
