Durable Pedestrian Management Fast Lane Turnstile Automated Systems Long Lifespan

Durable Pedestrian Management Fast Lane Turnstile Automated Systems Long Lifespan

pedestrian management fast lane turnstile

durable automated systems fast lane turnstile

long lifespan speed turnstile

Place of Origin:


Brand Name:




Model Number:

RNCF 8008-17

Contact Us
Request A Quote
Product Details
304 Stainless Steel
Motor Type:
Servo Motor
Pass Speed:
30 Person/nin
Passage Width:
Housing Material:
304 Stailess Steel
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
L/C, T/T
Supply Ability
2000 unit per month
Product Description

Durable Speed Gate Turnstile Pedestrian Management Automated Systems Long Lifespan


Product Introduction


The speed gate turnstile gate can be used in many places by virtue of its many advantages. In-office buildings, libraries, airports, etc, which can effectively protect security to access control.

Swing barrier turnstile is easily capable of handling high volume and abusive conditions. It is widely applied to bus stations, ports, neighborhoods, hotels, clubs, and companies that want to carry out intelligent management on passage.





  • The housing material is 304 stainless steel, it is very durable.
  • Break-in alarm. Trailing alarm.When reverse entry occurs,the gate closes automatically
  • Anti-pinch function, infrared induction anti-pinch function.
  • With standard fire alarm input interface, the device will unconditionally open first after receiving the fire alarm signal.
  • Gate opening and closing time is 0.8~3s.Time required to enter the traffic state after power-on is 3s.
  • Anti-collision movement, clutch lock, quiet and efficient.
  • The motor type is sensor motor.Use the numerical control encoder to limit, accurate, efficient and low failure rate.
  • With a zero-bit self-inspection function, easy for users to maintain and use.
  • Remote control and management can be realized through the management computer directly.





Size: L1100*W250*H990 mm
Motor type: Servo motor
Main board type: V2.621
Normal running life: 5 million times
Sensor quantity: 9 pairs
Pass speed: 30 person/min
Housing material: 304 stainless steel&Stoving varnish
Passage width: 500-1100MM
Swing arm material: Acrylic/Tempered glass/Stainless steel pipe(optional)
Input interface: AC100-240V,50/60HZ
Working voltage: DC24V
Working power: 100W
Working temperature: -15℃-70℃
Working humidity: 5%-90%
Working environment: Indoor/Semi-outdoor(with shade)
Input interface: Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA

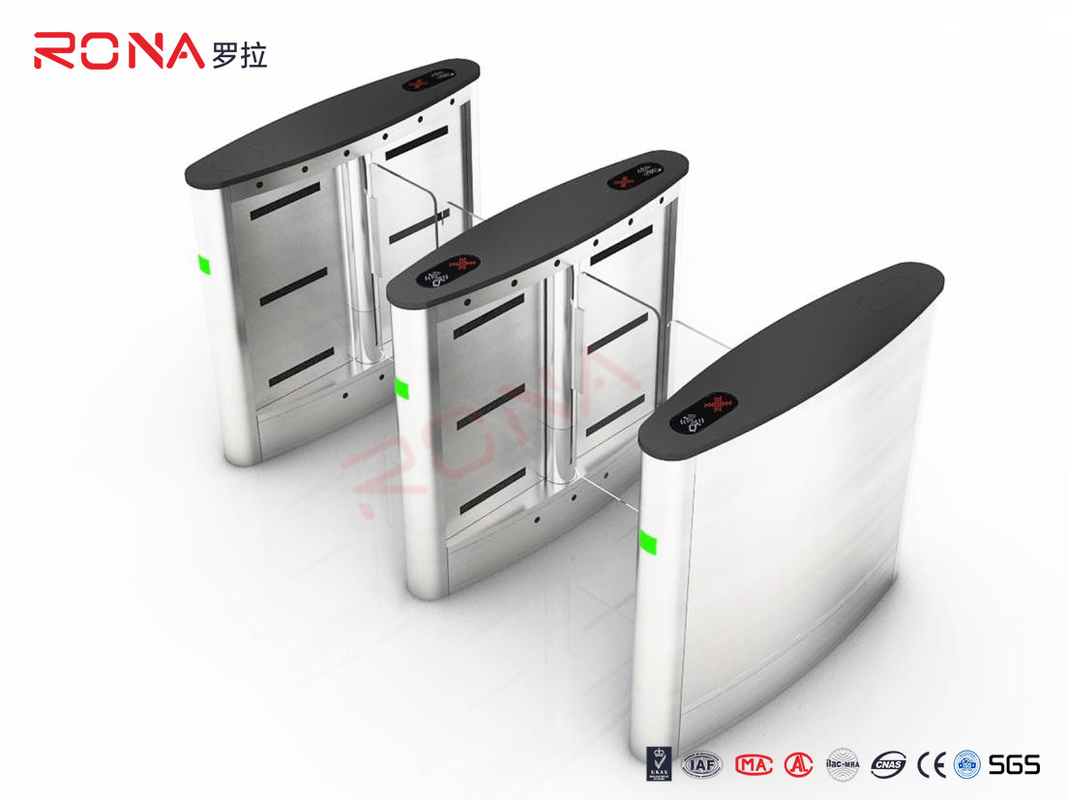

Durable Pedestrian Management Fast Lane Turnstile Automated Systems Long Lifespan 0
