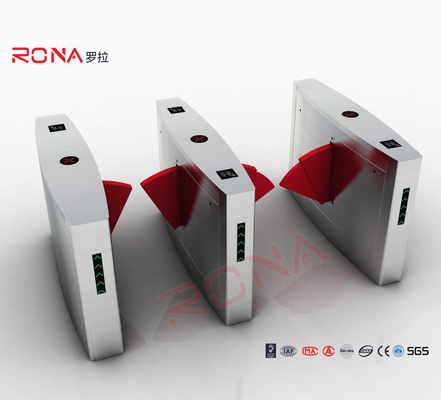

Intelligent Automatic Flap Barrier Gate With People Counting Systems

Intelligent Automatic Flap Barrier Gate With People Counting Systems

Automatic Flap Barrier Gate

Intelligent Flap Barrier Gate

People Counting Flap Barrier Gate

Place of Origin:


Brand Name:




Model Number:

RNCF 1088

Contact Us
Request A Quote
Product Details
304 Stainless Steel
Power Supply:
Single Core&Double Core
Passage Width:
Working Evvironment:
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
L/C, T/T
Supply Ability
2000 unit per month
Product Description

Intelligent Automatic Flap Barrier Gate With Aluminum Alloy Mechanism with people counting systems



Product Introduction

The flap barrier is a type of turnstile with a beautiful appearance, fast traffic speed, and significant verification for personnel, which is also called flap barrier gate, or flap barrier turnstile and is commonly used in places with high pedestrian traffic at entrances and exits. A flap barrier turnstile with the characteristics of a fast opening, safety, and convenience, which is an ideal management and guidance device for high-frequency pedestrian access channels.

Flap barrier turnstile has a good control effect on the passage of personnel, and the flap turnstile gate is also extremely convenient to use.




Intelligent Automatic Flap Barrier Gate With People Counting Systems 0




  • Equipped with fault self-inspection and alarm prompt functions, convenient for users to maintain and use;
  • The operation status of programmable devices can be checked through the built-in small press pad on the main control board;
  • Anti-pinch function, with mechanical structure and dual anti-pinch function of induction. When encountering obstacles during the resetting process of the telescopic arm, it automatically stops or the motor stops working within the default time. It defaults to a delay and then resets again (until reset), and the force is very small (≤ 2Kg);
  • Sound and light alarm function: including illegal intrusion and tailgating alarm;
  • Anti-impact function, when the opening signal is not received, the swing arm actively locks;
  • Telescopic arm synchronization function;
  • With an active reset function
  • After the power outage, the channel actively opens and closes when powered on;
  • Can be connected to various card-reading devices;
  • Able to operate personnel in and out in one or both directions;
  • Remote control and processing can be achieved directly through the processing computer;
  • It has the functions of traffic indication and channel indication;




Size: L1500*W300*H990 mm
Retractable arm length: 250 mm
Max Passage width: 550 mm
Material: SUS 304 stainless steel
Working voltage: AC220±10%V , 50HZ
Drive motor: Servo motor
Input interface: Dry contact signal & 12V level signal, drive current>10mA
Normal running life: More than 5 million
Communication interface: Standard RS485 interface
Sensor pairs :  9 pairs
Pass speed: 30 persons/min
Turnstile open / closed time: 1 second
Working environment: indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity: ≤90% coagulation free





Intelligent Automatic Flap Barrier Gate With People Counting Systems 1
