Access Control Automatic Flap Turnstile Walk Through Optical Turnstile For Subway Station

Access Control Automatic Flap Turnstile Walk Through Optical Turnstile For Subway Station

Access Control Automatic Flap Turnstile

Walk Through Flap Barrier Gate

Subway Station Optical Turnstile

Place of Origin:


Brand Name:


Model Number:


Contact Us
Request A Quote
Product Details
Passage Width:
One Year
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
L/C, T/T
Supply Ability
2000 Unit Per Month
Product Description

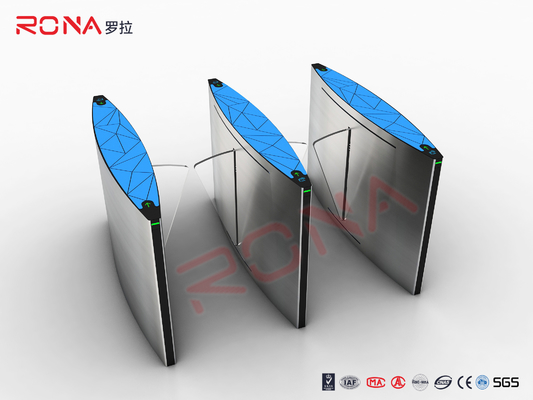

Access Control Automatic Flap Barrier Gate Walk Through Optical Turnstile


Product Definition

Flap barrier turnstiles are electronic optical turnstiles with glass panels (or flaps). These glass panels extend from a pair of optical turnstile cabinets. The panels meet in the middle of the two cabinets to form a pedestrian barrier. A flap barrier turnstile is an aesthetically pleasing security and access control solution.




  • It has the function of a self-reporting fault prompt, which is convenient for users to use and maintain;
  • It has the functions of traffic indication and channel indication;
  • It has the function of normally open key
  • It has the functions of automatic opening of power-off swing door and automatic closing when powered on;
  • It has the function of line self-inspection;
  • It has the function of an illegal intrusion alarm;
  • It has a triple anti-pinch protection function;
  • The traffic mode can be adjusted freely;
  • The closing time and mode can be adjusted arbitrarily;
  • Remote control and management.
  • It can be connected with an all-in-one smart card such as duomo elevator/parking lot/access control/consumption.



Technical Parameters



Size: L1500*W300*H1000 mm
Retractable arm length: 250 mm
Max Passage width: 550 mm
Material: SUS 304 stainless steel
Working voltage: AC220±10%V , 50HZ
Drive motor: DC24V brush motor
Input interface: Dry contact signal & 12V level signal, drive current>10mA
Normal running life: More than 5 million
Communication interface: Standard RS485 interface
Sensor pairs : 6 pairs
Pass speed: 30 persons/min
Turnstile open / closed time: 1 second
Working environment: indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity: ≤90% coagulation free
