Place of Origin: | China |
Brand Name: | RONA |
Certification: | CE/ISO9001 |
Model Number: | RNCF 8008-19 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiation |
Packaging Details: | carton and wooden packing |
Delivery Time: | 7-15 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 2000 unit per month |
Dimension: | 1500mm*120mm*1000mm | Power Supply: | AC220±10%,50/60Hz |
---|---|---|---|
Communication: | RS232 TCT/IP | Power Consumption: | 60W |
Warranty: | One Year | Passage Width: | 550-1100mm |
High Light: | Intelligent Automatic Speed Gate Turnstile,304 Stainless Steel Speedlane Turnstile,People Counting Systems Speed Gate Turnstile |

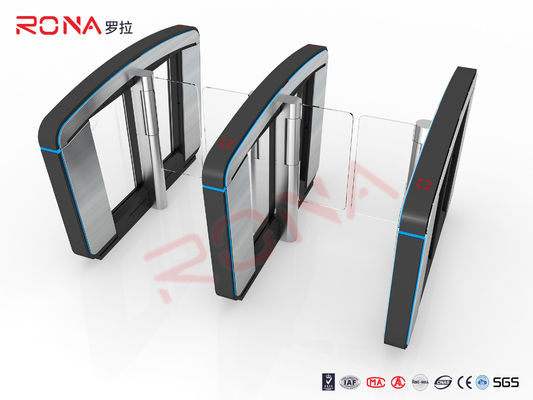

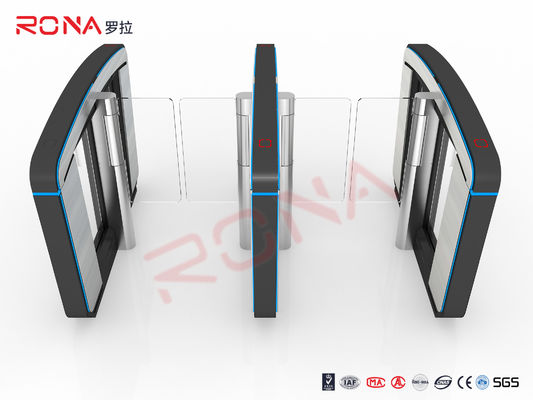

Product Introduction
Speed gate turnstile has a high-cost performance. Widely used in high-end commercial occasions, the lobby of buildings, railway stations, subway stations, scenic spots, etc.
The rise of the speed gate turnstile is after the swing turnstile gate, which can be said to be an upgraded version of the swing turnstile gate. As the name suggests, the function of security speed gates is to make people flow quickly under the premise of safety management circulation, which is the main reason why speed gates have been widely welcomed by society after their birth.
Functions&Features
Dimension
Technical Parameters
Size: | L1500*W120*H1000 mm |
Motor type: | DC24V brushless motor |
Main board type: | V2.621 |
Normal running life: | ≧5 million times |
Sensor quantity: | 6 pairs |
Pass speed: | 25-30 person/min |
Housing material: | 304 stainless steel&Stoving varnish |
Passage width: | 500-1100MM |
Swing arm material: | Acrylic/Tempered glass/Stainless steel pipe(optional) |
Input interface: | AC100-240V,50/60HZ |
Working voltage: | DC24V |
Working power: | 60W |
Working temperature: | -15℃-70℃ |
Working humidity: | 5%-90% |
Working environment: | Indoor/Semi-outdoor(with shade) |
Input interface: | Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA |
