Access Management Slim Turnstile Automatic Swing Gates With Ticketing System

Access Management Slim Turnstile Automatic Swing Gates With Ticketing System

Access Management Slim Turnstile

Slim Turnstile With Ticketing System

Automatic Swing Gates With Ticketing System

Place of Origin:


Brand Name:




Model Number:

RNCFH 5008

Contact Us
Request A Quote
Product Details
Product Name:
Swing Turnstile
RNCFH 5008
Motor Type:
DC24V Brushless Motor
Normal Running Life:
More Than 5 Million Times
Sensor Quantity:
6 Pairs
Passage Rate:
30 Person/min
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
Supply Ability
2000 unit per month
Product Description

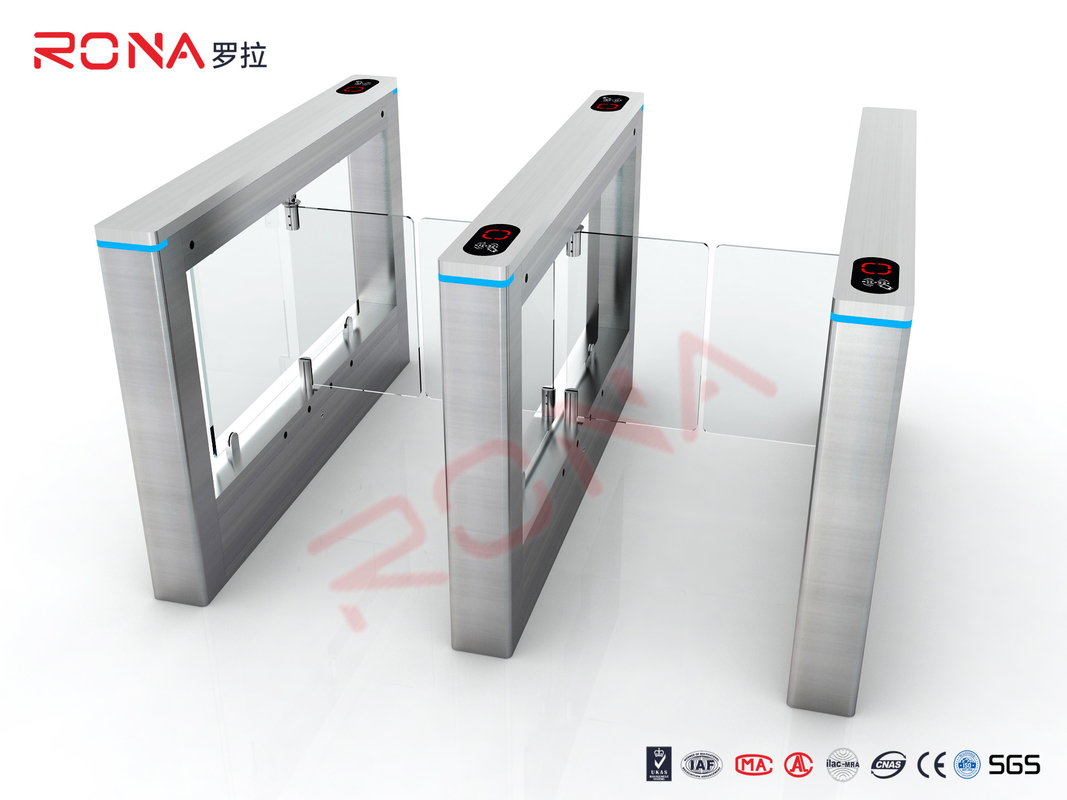

Slim Turnstile Access Management Automatic Swing Gates Wth Ticketing System


Product Description

Security turnstile swing turnstile gate is a slim automatic barrier turnstile that comes with a stainless steel arm that can be used in abusive conditions. The lane width can reach 1200mm, which can be used for bicycle access control. The mechanism is an anti-hit one. If someone hits the arm, it can move back to the original location manually. Mairs offers the best turnstile gate with card reader price.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings.




Access Management Slim Turnstile Automatic Swing Gates With Ticketing System 0




  • Turnstile gate is a high-speed security turnstile gate, which is usually applied in the location with high traffic flow in bi-direction running.
  • The chassis is made from hairline texture 304 stainless steel, which creates a seamless and elegant access point to match most indoor environments.
  • This swing turnstile gate comes with international standard RS485 and relays which makes it widely compatible with all existing software in the industry and almost all the access control like RFID systems, Bar codes systems, Face recognition systems, fingerprint systems, etc.
  • In case of emergency, cut off the power, and the office turnstile will open automatically to allow free passage which is complying with fire safety requirements. But it has to come with a battery. As for export, the battery is sensitive, we can use the capacitor to replace it.
  • The office turnstile is suitable for luxury and high-end entrance solutions.
  • The whole system runs smoothly, with low noise, and high speed.
  • Alarm function, if there is an illegal intrusion or reverse intrusion, the gate will alarm and the door will lock.
  • Automatic reset function. If the people did pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically
  • Anti-bump, Anti clamp, The gates come with brushless During operation if someone hits the arm, the gate will reset automatically. This function effectively prevents pedestrians, especially children from bumping, clipping, striking, etc. Affordable turnstile gate with card reader price to save your cost.



Size: L1500*W150*H980 mm
Motor type: DC24V brushless motor
Main board type: V2.6
Normal running life: 5 million times
Sensor quantity: 6-10 pairs
Pass speed: 25-30 person/min
Housing material: 304 stainless steel&Stoving varnish
Passage width: 500-1200MM
Swing arm material: Acrylic/Tempered glass/Stainless steel pipe(optional)
Input interface: AC100-240V,50/60HZ
Working voltage: DC24V
Working power: 60-100W
Working temperature: -15℃-70℃
Working humidity: 5%-90%
Working environment: Indoor/Semi-outdoor(with shade)
Input interface: Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA
