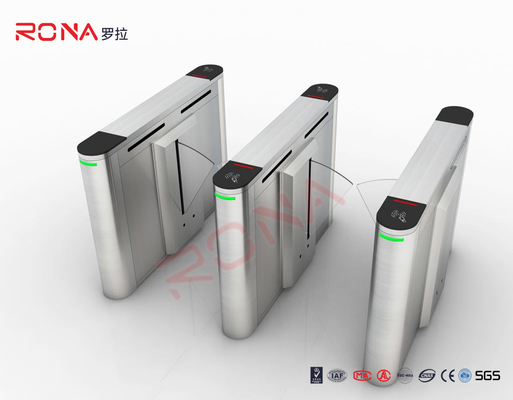

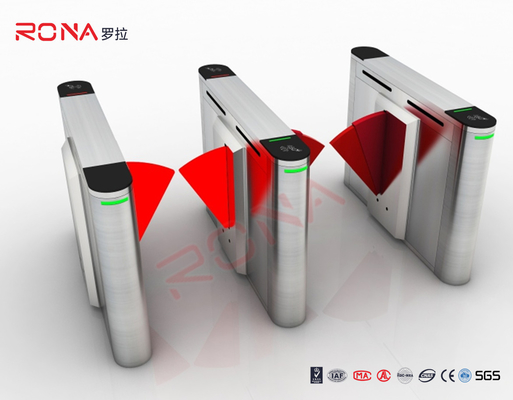

Intelligent Automatic Flap Turnstile 304 Stainless Steel With People Counting Systems

Intelligent Automatic Flap Turnstile 304 Stainless Steel With People Counting Systems

Intelligent Automatic Flap Turnstile

304 SS Automatic Flap Turnstile

Automatic Flap Turnstile with Counting Systems

Place of Origin:


Brand Name:




Model Number:

RNCF 7088C

Contact Us
Request A Quote
Product Details
Product Name:
Flap Turnstile
Housing Material:
304 Stailess Steel
Passage Width:
Communication Interface:
Power Consumption:
Payment & Shipping Terms
Minimum Order Quantity
1 pair
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
Supply Ability
2000 unit per month
Product Description

Intelligent Automatic Flap Turnstile With 304 Stainless Steel With People Counting Systems



Product Usage


Access Management: Pedestrian access gates can effectively manage and control the entry and exit of personnel by setting different permissions and access methods.Prevent unauthorized personnel from entering.
Records Management: Pedestrian access gates can record the passage records of each user, including passage time, passage direction and other information, which can provide support for subsequent data analysis and management.
Security Monitoring: Pedestrian passage turnstiles have intelligent security monitoring functions, which can carry out identification and security monitoring of passers-by
Control, prevent criminals from entering, and ensure the safety of the place.
Energy saving and environmental protection: The pedestrian gate adopts energy-saving design, which can effectively reduce energy consumption and reduce the energy cost of enterprises, which has positive significance for environmental protection.





  • 304 stainless steel, national standard 1.5MM precision machining
  • 6 pairs of industrial grade sensors, long-life for use.

  • Infrared and electric current anti-pinch for protecting traffic safety

  • A variety of traffic modes can be adjusted to meet the needs of the scene

  • Anti-collision movement, clutch lock, quiet and efficient

  • Trailing, reverse traffic alarm, prompt function

  • One-to-one master control, durable

  • CE,ISO9001 certification



Size: L1400*W300*H990 mm
Retractable arm length: 250 mm
Max Passage width: 550 mm
Material: SUS 304 stainless steel
Working voltage: AC220±10%V , 50HZ
Drive motor: DC24V brush motor
Input interface: Dry contact signal & 12V level signal, drive current>10mA
Normal running life: More than 3 million
Communication interface: Standard RS485 interface
Sensor pairs : 6 pairs
Pass speed: 30~40 persons/min
Turnstile open / closed time: 1 second
Working environment: indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity: ≤90% coagulation free
