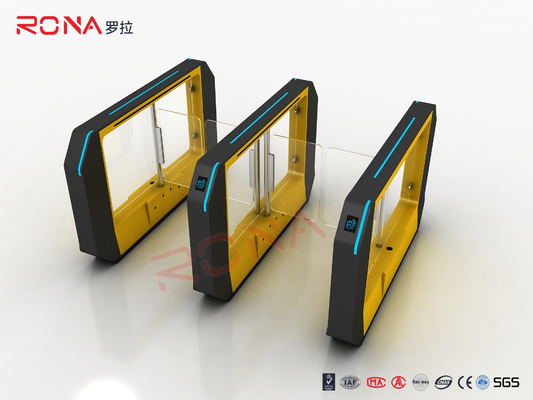

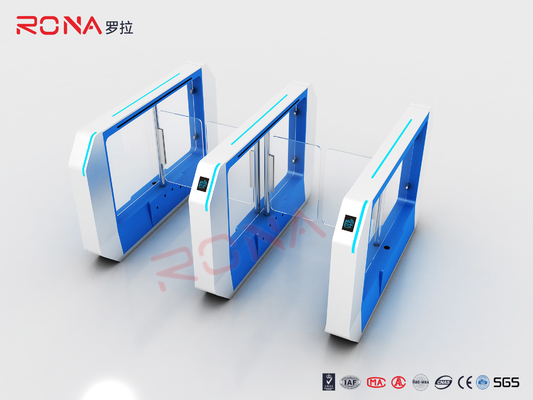

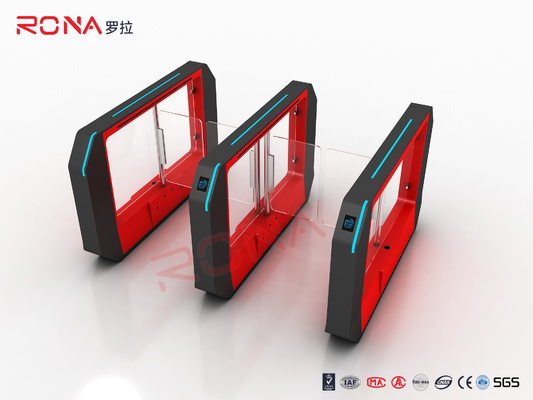

Smart Infrared Sensor Swing Gate Turnstile Multiple Color Options

Name: Smart Infrared Sensor Swing Gate Turnstile Multiple Color Options
Brand: Shenzhen Rona Intelligent Technology Co., Ltd
SKU: RNCF F5008HD
Availability: InStock

Brand Name:	RONA
Model Number:	RNCF F5008HD
MOQ:	1 Unit
Delivery Time:	7-15 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ISO9001

Material:

304 Stainless Steel

Color:

Yellow/Blue/Red

Motor Type:

DC24V Brushless Motor

Main Board Type:

V2.6

Normal Running Life:

5 Million Times

Sensor Quantity:

6 Pairs

Pass Speed:

30 Person/nin

Housing Material:

304 Stailess Steel

Packaging Details:

Carton and Wooden Packing

Supply Ability:

2000 Unit Per Month

Highlight:

Multiple Color Swing Gate Turnstile

Infrared Sensor Swing Gate Turnstile

30 person/nin Swing Gate Turnstile

Product Description

**1600mm140mm1000mm Smart Infrared Sensor Swing Gate Turnstile Multiple Color Options**

Brief Introduction

Swing gate turnstile is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier.

Functions & Features

Motor: DC brushless motor,compact structure,large torque,low noise and wear resistance.
Control System: precise control, more flexible running,less mechanical impact and longer service life.
Technology: Running speed adjustable, automatic opening when power off, meet different access requirements and have a better experience.
Anti-push:Self-adaptive anti-push function,high transformation ratio gear box,increasing torque for strengthen resistance and the stability,reducing the failure rate and cost pressure.

Passage Mode

Parameters

Framework	304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
Finish	brushed surface, polishing surface
Swing arm material	Tempered glass or Acrylic (optional)
Power voltage	AC220V±10%, 50Hz±10%
Driver motor	DC36 servo motor
Main-board voltage	12V DC
In-built Infrared	6 pairs/passageway
Passing speed in normally open mode	40 persons/min
Passing speed in normally closed mode	25-30 persons/min
Passage Width	550-1000mm
Swing arm transmission angle	180°
Swinging direction	unidirectional or bi-directional
Opening / closing time	0.1 seconds
The time required to running state after power on	3 seconds
Automatic reset time after the failure	1 seconds
Mean time to failure	min. 10 000 000
Operation temperature	-10℃ ~ +70℃
Relative humidity	less than 90% not condensed
Working Environment	Indoor/Outdoor (with rain-tent cover)
Input port	relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal
Communications port	RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet

Our Company
