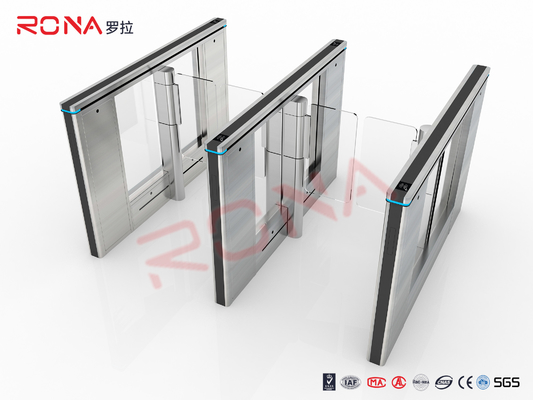

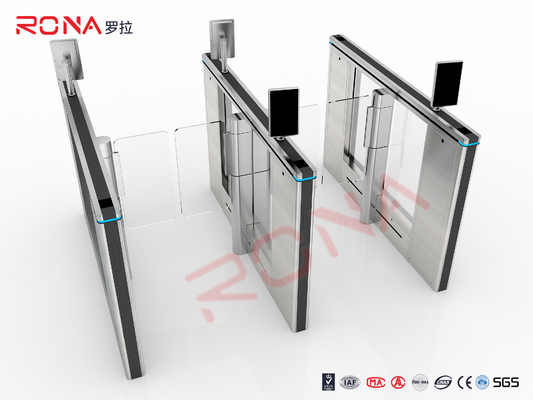

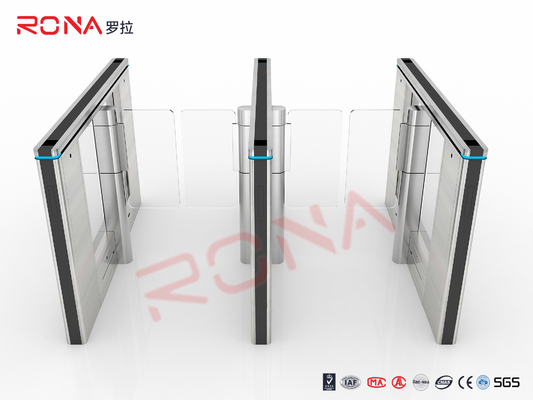

Automatic Access Control Speed Gate Turnstile 6 Pairs Sensor With Brushless Servo Motor

Pass mode

       Second time open function

1,The gate does not open when people swipe the card in the channel unless people exit the channel.

2,During the passage time,when people break in from the opposite direction,the gate closes automatically unless the people exit the channel

      Intelligent anti-pinch function

We have sensor anti-pinch design / motor torque anti-pinch design /mechanical anti-pinch design, those design to make sure passage’s safety when the pass.

      Beep warning function

This turnstile will be beep to warn manager that illegal action being happened

(illegal enter, opposite enter, overdue stop, fire alarm normal open, malfunction alarm …)

Logical monitoring

6 pairs sensor  will monitor the passenger, kids, wheelchair, luggage’s position, and also can warm alarm when have trailing, break in, opposite enter illegal action happened

       Anti-illegal collision

Before the turnstile received the enter signal, if the passenger break in the sensor area, turnstile will lock and alarm.

Material:

standard 304 stainless steel / baking paint

Working voltage:

110VAC,50HZ/60HZ 100W

Drive motor:

servo motor

Dimensions:

Channel width:

500MM-1200MM

Working environment:

indoor, outdoor (shade) -10 ° C ~ 50 ° C Relative humidity: ≤ 90%, no condensation

Swing arm material:

tempered glass swing arm and acrylic swing arm

Input interface:

relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA
