304 Stainless Steel Automatic Flap Barrier Turnstile Acrylic Swing Arm With Servo Motor

304 Stainless Steel Automatic Flap Barrier Turnstile Acrylic Swing Arm With Servo Motor

304SS Flap Barrier Turnstile

Acrylic Arm Flap Barrier Turnstile

Servo Motor Flap Barrier Turnstile

Place of Origin:

China

Brand Name:

RONA

Certification:

CE/ISO9001

Model Number:

RNCF 2088HD

Contact Us
Request A Quote
Product Details
Housing Material:
304 Stailess Steel
Swing Arm:
Acrylic
Size:
1500MM*300MM*1000MM
Direction:
One Or Bi-direction(optional)
Warranty:
One Year
Usage:
Metro Station, Office, Library, Hotel
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
negotiation
Delivery Time
7-15 work days
Payment Terms
T/T
Supply Ability
2000 unit per month
Product Description

Mechanical Transmission Parts304 Stainless Steel Acrylic Swing Arm Automatic Flap Barrier Turnstile With Servo Motor



Producto description:

Flap barrier turnstiles are electronic optical turnstiles with glass panels (or flaps). These glass panels extend from a pair of optical turnstile cabinets. The panels meet in the middle of the two cabinets to form a pedestrian barrier. A flap barrier turnstile is an aesthetically pleasing security and access control solution.

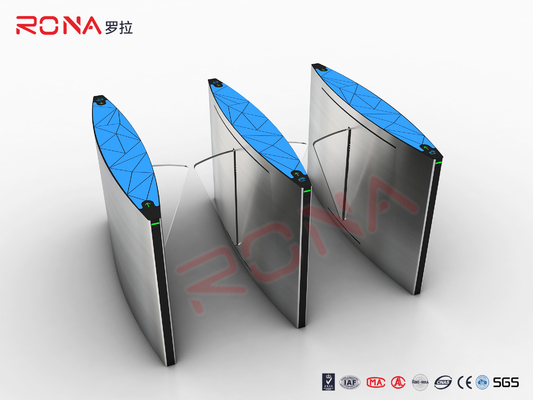

304 Stainless Steel Automatic Flap Barrier Turnstile Acrylic Swing Arm With Servo Motor 0



Functions & Feature:

1 Motor Self-developed planetary gear reducer structure, driven by servo motor, compact structure, large torque, low noise and wear resistance.
2 Control System The self-developed servo control system, precise control, more flexible running, less mechanical impact, and longer service life.
3 Technology Frequency conversion technology, running speed adjustable, automatic opening when power off, meet different access requirements and have a better experience.
4 Mechanical Transmission Parts Precisely made of high-strength plastic, pure mode design, improving the accuracy of spare parts and assembly, more compact operation, smaller operation gap, and longer service life.
5 Wing Made by plastic mold, standardization, and refinement, surface treatment technique, the best visual effect of lighting.





Technical Parmeters:

Motor type Servo motor
Main board type V3.1
Normal running life 10 million times
Sensor quantity 9 pairs senso(Optional 40 pairs light crutains)
Pass speed 30 person/min
Passage width 550-900MM(Double flap)
Swing arm material Acrylic/PU soft
Communication interface TCP/IP,RS232,Dry contact
Input interface AC100-240V,50/60hz
Working woltage DC24V
Working power 100W
Working temperature -15°C-70°C
Working humidity 5%-90%
Working environment Indoor/semi-outdoor

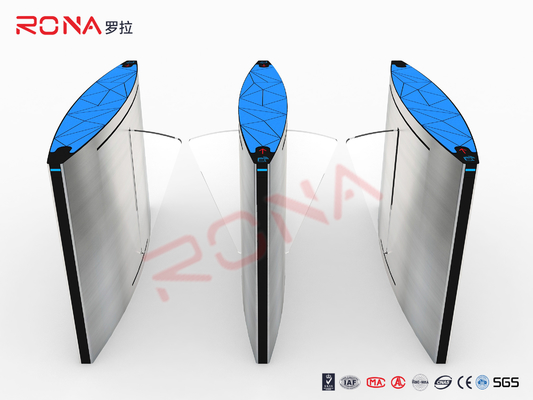

304 Stainless Steel Automatic Flap Barrier Turnstile Acrylic Swing Arm With Servo Motor 1



304 Stainless Steel Automatic Flap Barrier Turnstile Acrylic Swing Arm With Servo Motor 2
