|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Model Number:||RNCF 1008HD|
|Minimum Order Quantity:||1 pair|
|Packaging Details:||Export Wooden Packing|
|Delivery Time:||7-15 working days|
|Payment Terms:||L/C, T/T,, Western Union|
|Supply Ability:||2000 units Per Month|
|Product Name:||Factory Application Pedestrian Swing Gate Turnstile With Card Reader And Face Recognition||Standard Size:||L1200*W180*980 MM|
|Input Interface:||+12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA||Passage Width:||600-900mm|
|Pass Speed:||25-30 Persons/min||Direction:||Single And Bi-directional|
600mm Swing Gate Turnstile,
900mm Swing Gate Turnstile,
SUS304 Pedestrian Swing Gate

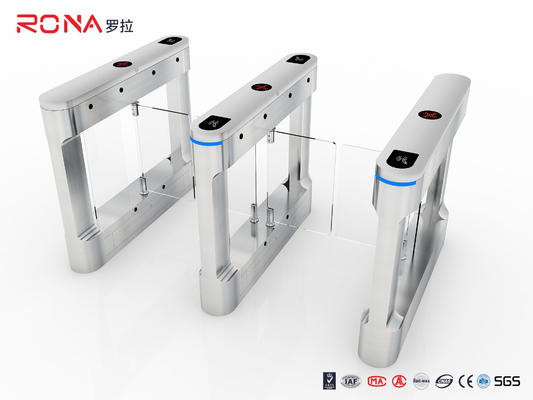

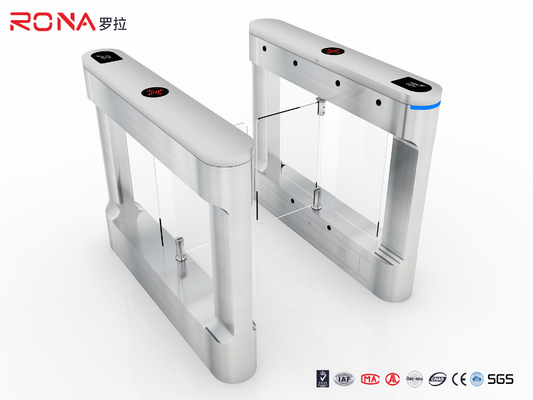

600mm 900mm Pedestrian Swing Gate Turnstile With Face Recognition

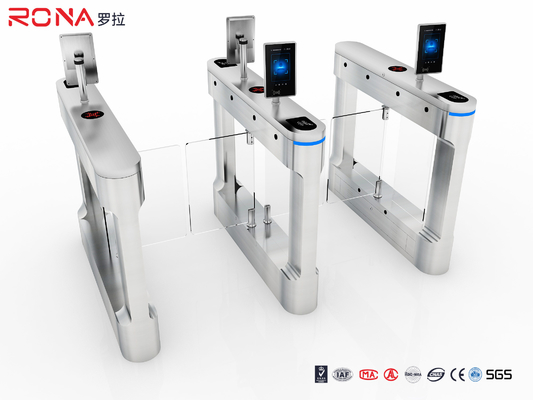

Factory Application Pedestrian Swing Gate Turnstile With Card Reader And Face Recognition
1)With automatic homing, power-off unlock, power-on self-test, zero point correction, memory access, multiple opening, etc.
2)Material: Made of high-precision SUS304 stainless steel foot and thick plate material, corrosion resistance, wear resistance, high temperature resistance, oxidation resistance, durable, and after years of use, it is still as bright as new and always beautiful.
3)Structure: Modular design, easy disassembly, easy inspection, easy repair, easy installation and maintenance.
4)Alarm function: illegal break-in, reverse traffic, trailing, traffic timeout, and equipment alarm when the situation occurs;
5)Stable product performance, low energy consumption, low noise and long service life;
6)Super five-proof function: with anti-trailing, anti-reverse, anti-hand shake, anti-collision, anti-pinching; super protection, safer traffic;
How to guarantee kids will not be hurt when they using the Swing Barrier Gate ?
1) RONA Swing Barrier Gate using epecial mechanism structure, the strength not enough to hurt them.
2) RONA using high quality infrared , the erroneous judgement almost zero.
3) RONA Swing Barrier Gate can using in outside totaly - Waterproof
Standard functions & features of Swing Barrier Gate
|1) Flow direction guide with high bright led lamp.|
|2) Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked.|
|3) Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)|
|4)The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.|
|5)Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs|
|6) Infrared reset function (Optional:4 pairs or 6 pairs Infrared)|
|7) The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)|
|8) Can manager and long-range control the turnstile directly by managing the computer.|
|9)Water proof,can used at inside and outside|
|10) Can be integrated with all kinds of access control systems include ID/IC, barcode, fingerprint, face, iris, etc.|
1. LED counting function
2. Size customization
3. Add more infrared
4. Program customization (for example : Normally open or closed can be adjust to meet the requirements of the different place. )
5. Voice Prompt Function
Export wooden box
