|Place of Origin:||China|
|Certification:||CE / ISO9001|
|Model Number:||RNCF H8008-10|
|Minimum Order Quantity:||1 pair|
|Packaging Details:||Wooden Case Packing|
|Delivery Time:||7-15 working days|
|Payment Terms:||, T/T|
|Supply Ability:||2000 units Per Month|
|Product Name:||Speed Gate Turnstile||Standard Size:||1600*160*1060mm|
|Material Swing:||Acrylic Or Tempered Glass||Pass Speed:||35-40 Persons/min|
|Finish:||Brushed Surface, Polishing Surface||Working Life:||10 Millions|
Stainless Steel Speed Gate Turnstile,
RFID Speed Gate Turnstile,
RFID speedlane turnstile

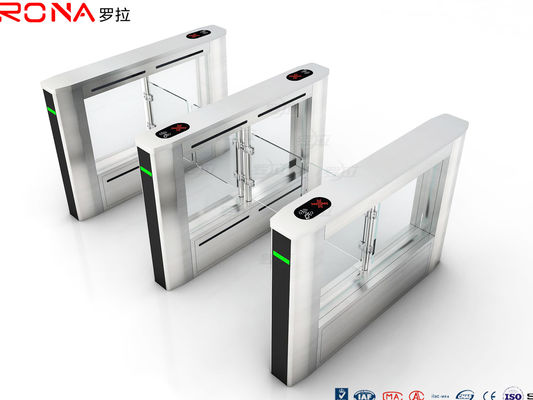

Bus Station Stainless Steel Speed Gate Turnstile With RFID Card Reader
|Framework||304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)|
|Thickness of ply||2.0mm|
|Finish||brushed surface, polishing surface|
|Swing arm material||Tempered glass or Acrylic|
|Stretching out swing length||260mm~550mm|
|The inductive card reader dimension||equipped with the standard mounting brackets or tailor.|
|Machine center||Germany technological motor|
|Power voltage||AC220V±10%, 50Hz±10%|
|Driver motor||DC36 servo motor|
|Main-board voltage||12V DC|
|In-built Infrared||6 pairs/passageway|
|Passing speed in normally||40 persons/min|
|Passing speed in normally closed mode||35 persons/min|
|Passage Width||600mm ~1150mm|
|Swing arm transmission angle||180°|
|Swinging direction||unidirectional or bi-directional|
|Opening / closing time||0.1 seconds|
|The time required to running state after power on||3 seconds|
|Automatic reset time after the failure||1 seconds|
|Mean time to failure||min. 10 000 000|
|Operation temperature||-10℃ ~ +70℃|
|Relative humidity||less than 95% not condensed|
|Working Environment||Indoor/Outdoor (with rain-tent cover)|
|Input port||relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal|
RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet
1. In case of fire, power failure and other emergencies, the gates will automatically open to evacuate people.
2. Infrared and mechanical anti-pinch functions provide double protection.
3. When the impact force beyond the safe range is suddenly applied, the gate can be pushed slowly to effectively protect the machine and pedestrians.
4. All electrical modules are designed to work under 24V safety voltage, and equipped with residual current protection device to effectively avoid electric shock.
5. RFID access controller, fingerprint reader, face recognition reader, QR code reader, barcode reader, consumption system optional.
Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Buildings, Banks, Museums and Airports, etc high-end places.
