| Place of Origin: | China |
| Brand Name: | RONA |
| Certification: | CE / ISO9001 |
| Model Number: | RNCF7088 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton and wooden packing |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, |
| Supply Ability: | 2000 units Per Month |
| Product Name: | Flap Barrier Turnstile Gate | Passage Width: | 550mm |
|---|---|---|---|
| Mean Time To Failure: | ≧ 5 Million | Communications Port:: | RS485 Distance=1200m |
| Materials: | 304 Stainless Steel & Stoving Varnish | Direction: | Single And Bi-directional |
| Pass Speed: | 40 Persons/min | Tine To Opean And Close Gate: | 0.6 Seconds |
| High Light: | Pedestrian Control Flap Barrier Turnstile,SS304 Flap Barrier Turnstile,SS304 flap turnstile gate |
||

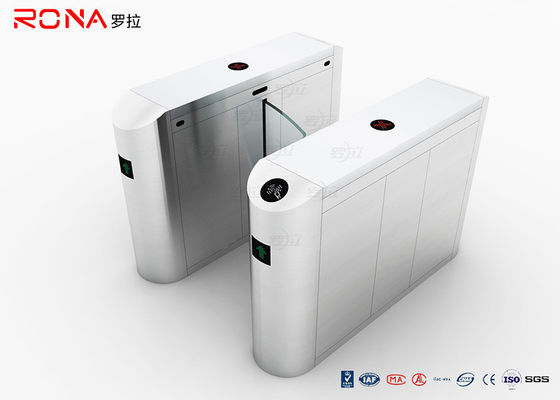

Pedestrian Control Flap Barrier Turnstile Gate 40 Persons/Min Acrylic Counter
Tenical Parameters
| Name | Flap Barrier Turnstile |
| Running life | No more than 5 millions |
| Drive voltage | DC24V 20W |
| Pass Speed | 40 persons/minute |
| Open direction | Unidirectional and bidirectional (optional) |
| Opening time | 0.6S/It is adjustable |
| Humidity | ≤90% coagulation free |
| Thickness of Housing | 2.0mm |
| Input port | relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
| Working Environment | indoor/out(with tent over)-10°C~70°C |
Product Description
The Flap Barrier Gate is a high-tech product that mainly manages the channel intelligently.
With complete functions and high grade, it is suitable for intelligent buildings in high-rise residential areas, hotels, subways, ports, clubs, etc.
Standard functions & features of Flap Turnstiles Gate
1) Online or offline mode (optional)
2) DC brushless motor, maintenance-free
3) With direction indication to guide passengers in and out.
4) Self-locking to prevent forced passage without a card
5) Sound and light alarm indication function to prevent illegal entry or illegal passage
6) Real-time fault self-detection and alarm indication to ensure the safe operation of the system and facilitate maintenance and operation
7) Rapid identification technology can accurately and efficiently identify magnetic cards, barcode cards, ID cards, and IC cards.
8) The number of passengers is automatically counted and displayed, which is convenient for observation, and the total number of passengers displayed is as high as 90,000
