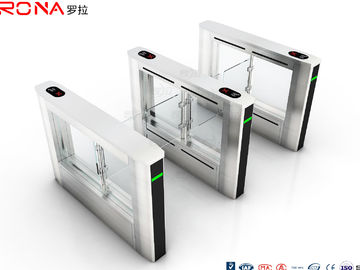

Office Building Speed Gate Turnstiles With Servo Motor Card Reader

Pedestrian Access Security Gates ,Turnstiles With Servo Motor Card Reader​

Feature:
1) By using 9 pairs of military level high-performance infrared sensors, it can accurately achieve many functions, such as anti-tailgating, detect illegal passing, anti-clamping and anti-bruising, direction-judgment function and so on;
2) Durable because all the internal parts are with antirust and antiseptic treatment;
3) Mechanism with the servo motor and accurately positioning encoder, to make sure the arms to rotate rapidly and exactly, stably and noiselessly.
4) Adopt Multiple anti-clamping design to protect pedestrian's safety at maximum;
5) Equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), compatible with all kinds of access controllers.

Basic Function:

Passing indication function:
1) Direction indicator: The direction indicator is installed on the top of the housing to indicate the valid passing direction.
2) Passing status indicator: It is installed inside the housing side, indicating whether the swing gates can open after receiving the valid signal.
Automatic reset function:

The turnstile will open the gate after receiving the valid opening signal when standby.

The swing gate will return to the hindered zero position automatically under the following situation:
1) Within the allowed time, pedestrians have been detected in the specified direction passing the passage;
2) Over the allowed time, there is no people has been detected passing in the passage.
Self-recovery function:

The swing gates do not return to the hindered zero position because of human intervention. After revoking human intervention, the gate automatically return to the hindered zero position.
Automatic adjustment function:

When the turnstiles need to re-adjust because of mechanical wear, the main board can automatically adjust, accurate and convenient.

Production line for speed gate
