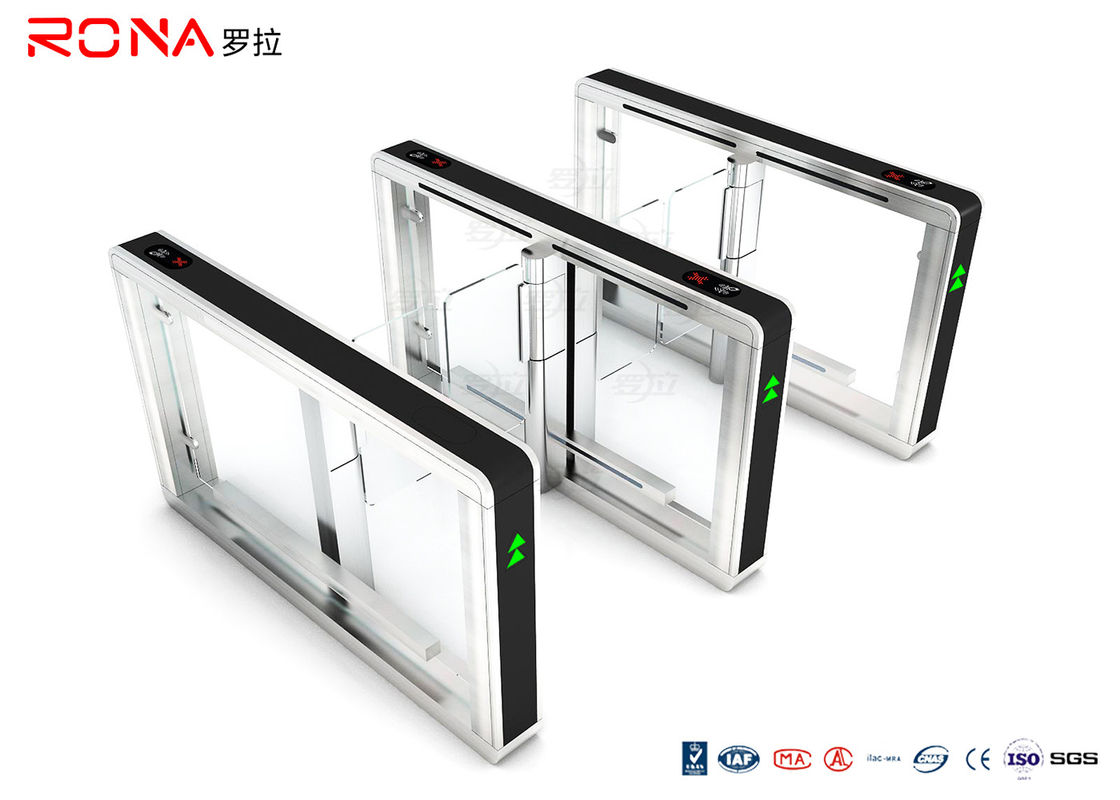

Stainless Steel Automatic Speed Gate Turnstile With RFID Card Reader

Stainless Steel Automatic Speed Gate Turnstile With RFID Card Reader

  • Stainless Steel Automatic Speed Gate Turnstile With RFID Card Reader
Stainless Steel Automatic Speed Gate Turnstile With RFID Card Reader
Product Details:
Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF H8008-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: Wooden Case Packing
Delivery Time: 7-15 working days
Payment Terms: , T/T
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Product Name: Automatic Speed Turnstile Gate Standard Size: 1600*160*1060mm
Driving Motor: DC Servo Motor Material Swing: Acrylic Or Tempered Glass
Pass Speed: 35-40 Persons/min Environment: Indoor
Working Life: 10 Millions Warrenty: 12 Month
Main-board Voltage: 12V DC
High Light:

Polishing Surface Speed Gate Turnstile

,

RFID Card Reader Speedlane Turnstile

,

304SUS Access Control Speed Gates

Stainless Steel Automatic Speed Gate With RFID Card Reader

PRODUCT DESCRIPTIONS:

The speed gate turnstile is with high-quality serve motor is configured and advanced servo control system is carried to truly achieve precise control, stable performance with no maintenance.
Lossless mechanism structure is based on German technology adopted to ensure long lifespan.


SPECIFICATIONS:

Framework

304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)

Thickness of ply

2.0mm

Finish

brushed surface, polishing surface

Shell's size



Swing arm material

Tempered glass or Acrylic

Stretching out swing length

260mm~550mm

The inductive card reader dimension

equipped with the standard mounting brackets or tailor.

Machine center

Germany technological motor

Power voltage

AC220V±10%, 50Hz±10%

Driver motor

DC36 servo motor

Main-board voltage

12V DC

In-built Infrared

6 pairs/passageway

Passing speed in normally

40 persons/min

Passing speed in normally closed mode

35 persons/min

Passage Width

600mm ~1150mm

Swing arm transmission angle

180°

Swinging direction

unidirectional or bi-directional

Opening / closing time

0.1 seconds

The time required to running state after power on

3 seconds

Automatic reset time after the failure

1 seconds

Mean time to failure

min. 10 000 000

Operation temperature

-10℃ ~ +70℃

Relative humidity

less than 95% not condensed

Working Environment

Indoor/Outdoor (with rain-tent cover)

Input port

relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal

Communications port

RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet




Features
1. The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
2. Infrared and mechanical anti-clamping functions provide double protection.
3. The gate can be pushed slowly when a sudden impact force is applied beyond the safety range so as to protect the machine and the pedestrian effectively.
4. All electric modules are designed to operate under the safety voltage of 24V, and are configured with residual current protective devices to effectively avoid electric shocks.
5. RFID access controller, fingerprint reader, facial identify reader, qr code reader, barcode reader, consume system optional.



APPLICATIONS:

1. Public Places: lobby entry, Subway, Airports, Stations, Library, Bookstores, Parks, Exhibition halls, Stadium, Museums, Apartments, Residence Area, Offices, Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Fitness Gym.
3. Business Organizations: Hotel, Factory, Bank, Prison, Hospital, School, Enterprise’s Entrance and Exit Attendance.

Stainless Steel Automatic Speed Gate Turnstile With RFID Card Reader 0
In Club
Stainless Steel Automatic Speed Gate Turnstile With RFID Card Reader 1

Exhibition

Stainless Steel Automatic Speed Gate Turnstile With RFID Card Reader 2
