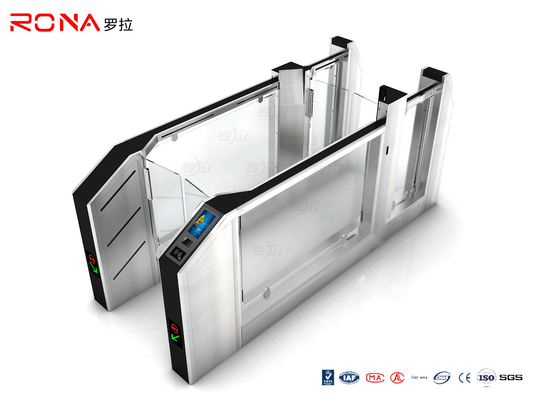

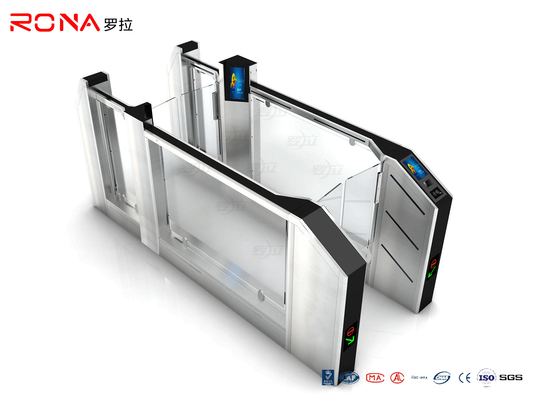

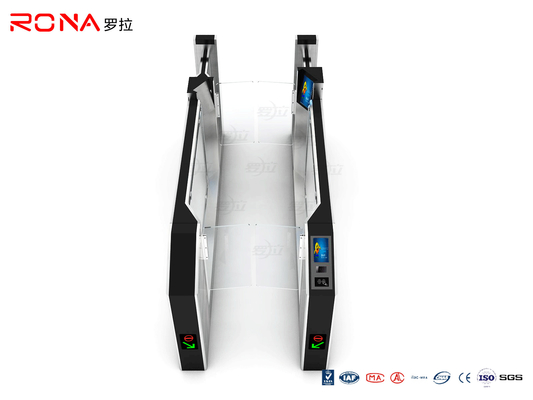

Airport Automatic Turnstiles Gate E Passport Authentication / Biometrics Verification

Airport Automatic Turnstiles Gate E Passport Authentication / Biometrics Verification

Airport Automatic Turnstiles Gate

Biometrics Verification Automatic Turnstiles Gate

E Passport Authentication Airport Turnstiles Gate

Place of Origin:


Brand Name:



CE / ISO9001

Model Number:


Contact Us
Request A Quote
Product Details
304 Stainless Steel(optional)
Customized(Our Standard: L2970 * W180* H1400mm)
Power Voltage:
AC220V±10%, 50Hz±10%, 200w
Driving Motor:
Servo Motor
Passing Speed:
40 Persons/min(open),30 Persons/min(close)
Passage Width:
Operation Temperature::
About -10℃ ~ +70℃
Reset Time After Break Down:
0.5 Seconds
Normal Running Life:
10 Million
Standar RS485 Interface, Distance=1200m
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T, , L/C
Supply Ability
2000 units Per Month
Product Description


Auto Turnstiles Gate With E-Passport Authentication And Biometrics Verification Used In Airport





Product Descriptions


1. The interlocking feature of AB door automatic access gate can prevent passengers from following through, and the unattended whole process inspection and clearance can be achieved at the port and entry-exit;


2. The door wing of the double door swing type quick pass gate of AB door automatic passage gate can be widened to become a special wide passage, which is convenient for passengers with large luggage;


3. The door wing of the swing type quick pass door of AB door automatic access gate can be raised to become a full height door or a half height door, and it is impossible to climb and pass;


4. The movement of AB door automatic access gate does not occupy space, and the neat self-service inspection gate channels with wide and narrow distribution can be customized side by side, with the same overall appearance;


5. AB door automatic access gate its double door swing gate access control channel design (AB access control system) can detect whether personnel follow the passage, height detection, nuclear radiation detection, infrared temperature measurement, one-to-one accurate detection, human body metal, security fingerprint, automatic printing prompt voucher and certificate verification and other global automatic customs clearance schemes in the buffer zone, so as to make the whole process integrated self-service inspection gate channel, which is a real unattended weapon.



Standard Features & Functions


1. Smooth operating motorized barriers, the entire system runs smoothly, with a small noise and free of mechanical impact.
2. Extremely fast throughputs.
3. The fastlane turnstile system can easily integrates with the 3rd party equipment, such as Biometric systems, consumption systems, ESD system and access control system, etc.
4. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch-button or access controller.
5. Automatic check fault and alarm prompt function: to convenient for users to maintain.
6. The running status of device can be set up through pressing the built-in small keyboard of the main control board.
7. The device is locked until a valid open signal is received.
8. Emergency-escape function: When power off, it will be opened the gates automatically to meet the request of fire protection. Also the gates will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).
9. Remote control and management function: Through the management computer to realize remote control and management.
10 Streamline small footprint design that utilizes shared cabinets for multi-lane
11 LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.
12. Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several photo sensors to prevent turnstile closure on a person while inside the lane.
13. Reset automatically function: ① the gates can locked automatically when it be forcibly pushed 10 degrees. ② “Go” signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable 1s ~ 60s, by changing parameter of main control board).




Optional & Customized Function



Alternative Materials, Finished and Custom Design
Usage LED Counter function
Audio and visual alarm in the event of an invalid entry or exit and tailgating
Remote Controlled Button
Extra add sensors transmitter and receiver type
Infrared sensors reset function
Access Control System Integration
Camera System Integration
Thermostat System Integration
Card Reader mounting: Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.
Stroboscopic alarm light prompt function: to help for site administrator to find the failure units fast and exactly.






Airport Automatic Turnstiles Gate E Passport Authentication / Biometrics Verification 0



Project case

Airport Automatic Turnstiles Gate E Passport Authentication / Biometrics Verification 1

Airport Automatic Turnstiles Gate E Passport Authentication / Biometrics Verification 2

Airport Automatic Turnstiles Gate E Passport Authentication / Biometrics Verification 3






Airport Automatic Turnstiles Gate E Passport Authentication / Biometrics Verification 4




Your concern:


1. What is your Quality Control?

We have a average 19-year experience QC team. They had a good teamwork to check raw materials and finished products to ensure the quality. The samples will be fully tested, and the bulk goods will be sampled for careful inspection, and the QC staff will also conduct inspections during the production process.

2. Do you provide customization?

We have 10-peoples customization team to cover our clients’ customized requirements. We also provide OEM and ODM service.

3. Could you tell us your after-sale service?

Timely support is a necessary. We provide free online support 24/7.

4. What would you do after the warranty?

We provide 12-month warranty, some of high products are with 24 months warranty. If out of warranty, we will provide free lifetime online services.

5. What are your optional list for your products?

Wireless control for pedestrian turnstiles, housing color changing, size changing, material SUS316 available, logo printing, add photocell quantity, etc.

7. How can we be your exclusive distributor?

To be our exclusive distributor, firstly you need to have your sales and technical team; Secondly, industry experience is required.
