Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF8088H

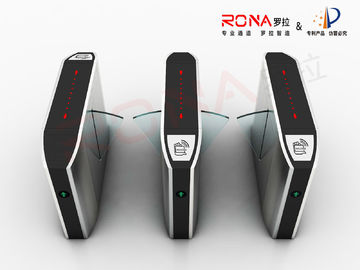

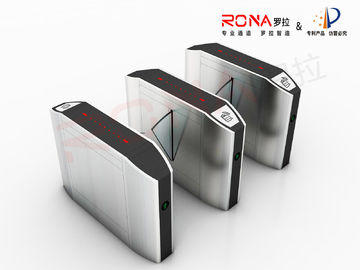

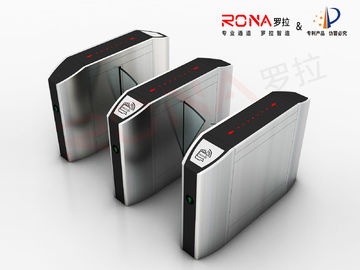

New Flap Barrier Gate Full Automatic with Fasty And Savety In Intelligent Office Building
Products description
The intelligent flap barrier is one of the serial products of intelligent passage management series from Our Company. It possesses superiority incomparable with the traditional management mode. Whether on the control right of passenger for passing, or on tolling, attendant or counting of the passenger, there will be a great deal of man power and material, a lot of spending, a large amount of work and a very low efficiency resulted with the traditional management mode. However, it is the strong merit point of the intelligent passage management product to solve the problems of this kind. It is the scientific crystallization of the highly development of social civilization and it opens a new era for the scientific management.
The outline of the product is formed after pressing the stainless steel plate. The shape is featured as a pleasing appearance, a good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the product with read/write facilities. A special control system is equipped in the product to meet the requirement of fire control, so that the smooth passage flow is ensured, realizing a timely diverting of passengers. The product is featured as stable in performance, safe and reliable, and can be used widely in the places where passenger flow is great and monitoring is needed such as stations, harbors and guest house.
Feature & Advantages
1. Self-checking function.
2. Working types:(1,bi-direction card reading;2,one direction card reading and another prohibited;3,one direction card reading and another free pass. Working types can be set in the control board.)
3.Automatic turnstiles arm drop automatically when power off ;Arm recover its position automatically when power on.
4. Arm open&close time can be set by user in control boards.
5. Manager can set pass time in control boards.
6. Flap barrier automatic alarm when illegal pass until passenger get an authorized card.
7. Flap barrier is RS485 interface for long-distance control.
8. Human safe: optical & mechanical anti-impact.Optical sensor detect passenger position.100% avoid passenger hurt during in passing . If arm meets any obstacle, arm stop working immediately .
9.LED display passengers numbers.
10. Direction display guide passenger go or stop.
11. Control software regulate authorized passengers numbers.
12. Stable running with low- noise.
Technical parameters
| Model | RNCF8088H | RNCF8088H | |
| Item | Single flap barrier | Double flap barrier | |
| Power consumption | 50W | 100W | |
| Housing Size | 1600x300x1020 mm | ||
| Housing material | 1.5--2mm, #304 Stainless Steel, Matt finish | ||
| Drive motor | DC brushless motor | ||
| Channel width | 550mm | ||
| Pass speed | 30~40 persons/min. | ||
| Power supply | 220Vac 50Hz or 110Vac 60Hz | ||
| Input interface | Switch Volume or 12V Level | ||
| Communication interface | RS485 | ||
| Gate open while power off | Yes | ||
| Working temperature | -30°C~+70°C | ||
| Working environments | Indoor, outdoor | ||
| Relative humidity | ≤95% coagulation free | ||
| MCBF | More than 5 millions | ||
| Warranty | 1 year | ||
| Outside packing | Plywood box, 1520 x 420 x 1140mm | ||
| Pieces per box | 1 pcs / box | ||
| Gross weight | 110KG | 130KG | |
Application
Flap turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot, community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs, Special Sporting Events and Festivals!
Office Building
Production line
