Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF8008X
PRODUCT CLASSIFICATIONS:
-> Single-core mechanism: RNCF8008X

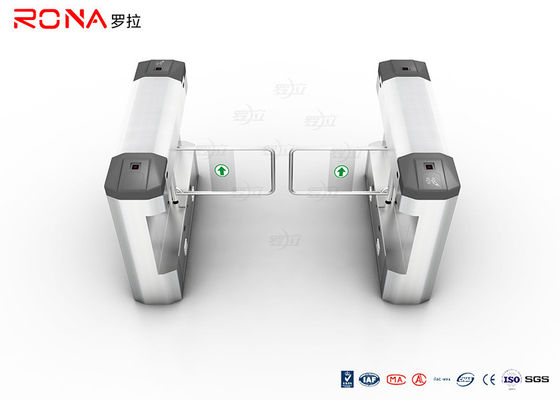

The swing gate only equipped with single-core in the cabinet , usually be used in single lane or multi-lane applications.
->Dual-core mechanism: RNCF8008XS
The swing gate equipped with independent dual-core in the cabinet , usually be used in multi-lane applications.
SPECIFICATIONS:
|
Model |
RNCF8008X |
RNCF8008XS |
|
Classifications |
Single-core mechanism |
Dual-core mechanism |
|
Framework |
304# Stainless Steel (default), 201# or 316# Stainless Steel or Paint (optional) |
|
|
Thickness of ply |
1.3mm |
|
|
Finish |
brushed surface, polishing surface or anti-fingerprint surface (optional); |
|
|
Size (L*W*H) |
L1200mm*W300mm*H990mm |
|
|
Material of swing |
steel |
|
|
Stretching-out flap length |
400mm |
|
|
The inductive card reader dimension |
equipped with the standard mounting brackets or tailor. |
|
|
Machine center |
Germany technological motor |
|
|
Power voltage |
AC220V±10%, 50Hz±10% |
|
|
Driver motor |
DC Brush motor |
|
|
Main-board voltage |
12V DC |
|
|
In-built Infrared |
3 pairs/lane |
|
|
Passing speed |
30 persons/min |
|
|
Passage Width |
550mm |
|
|
Opening / closing time |
0.6 seconds |
|
|
The time required to running state after power on |
3 seconds |
|
|
Automatic reset time after the failure |
10 seconds |
|
|
Mean time to failure |
min. 5 000 000 |
|
|
Operation temperature |
-10℃ ~ +70℃ |
|
|
Relative humidity |
less than 95% not condensed |
|
|
Working Environment |
Indoor/Outdoor (with rain-tent cover) |
|
|
Input port |
relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
|
|
Communications port |
RS232/ RS485 electric standard, communications range≤1200m. Available to connect with external CAN BUS and Ethernet |
|
|
Warranty |
12 months |
|
