Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF538

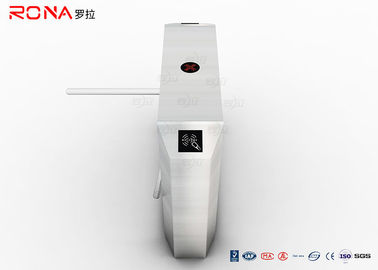

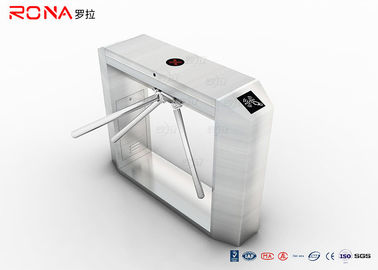

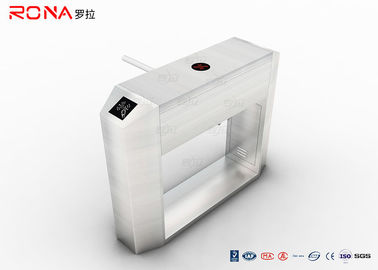

https://youtu.be/swSnIj6astQRFID Card Reader Fingerprint Access Control System Tripod Turnstile Semi-Automatic Turnstile Gate
Technical Specification:
| Model: | RNCF538 |
| Framework: | 304# Stainless Steel(default), 316# Stainless Steel or Paint (optional) |
| Working Voltage: | AC220±10% 50hz 50w |
| Dimension(L*W*H): | 1200mm*280mm*990mm (default) |
| Arm length: | 500mm |
| Arm diameter: | 38mm |
| The maximum bearing of arm: | 80Kg |
| Working driving force of the pole: | 3Kg |
| Read facilities mounting: | may be mounted on the surface of turnstile, or flush mounted, or rack mounting. There is an output to interlock the Read/write facility. |
| Power voltage: | AC220V±10%, 50Hz±10% |
| Work movement: | Germany technology electromagnetic valve |
| Semi-automatic type: | In-built hydraulic shock absorber |
| Passage Width: | 550mm |
| Passing speed in normally open mode: | 30~40 persons/min |
| Time of opening / closing: | 0.2 seconds |
| MTBF: | 550mm |
| Operation Temperature: | -10℃ ~ 70℃ |
| Relative humidity: | ≤95% not condensed |
| Operation environment: | Indoor/Outdoor |
| Input port: | relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal |
| Communications port: | RS232/RS485 electric standard, communications range: ≤1200m. Available to connect with external CAN BUS and Ethernet |
| Applications: | Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Corporate Lobbies, Buildings, Banks, Hotel, Super market, Park, Building Sites, Museums, Retail outlets, Railway Terminals and Airports etc. |
Product Classifications:
Semi-Automatic Type: When power off, it will be dropped the arm to the request of fire protection. When the power is on again, the arms can also lift by hand. Once an open signal is given, it need to manual push the arm to rotate.
Product Descriptions:
Tripod Turnstiles systems provide effective means for pedestrian flow control at entrances of production facilities, administrative buildings, company offices, schools, university campuses, stadiums, leisure and fitness facilities, amusement parks and zoos, shopping outlets.
Standard Features & Functions:
| 1. | The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader, consumption system, ESD system and access control system etc. |
| 2. | Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller. |
| 3. | Multi-alarm function: when the arms are pushed by force illegally, alarm will be triggered automatically and the arms will be set locked (the duration of the alarm and lock is adjustable by changing parameter of main control board). |
| 4. | Reset automatically function: Go signal will be cancelled if passage through is not completed within pre- set time. The standard default is 10 seconds (time adjustable by by changing parameter of main control board). |
| 5. | Auto-drop-arm function: the arm can drop down automatically (default), or free passing when the power is off. |
| 6. | Emergency-escape function: the arm will drop down automatically by pressing the emergency button which can be remote-controlled whether the power is on or not. |
| 7. | Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home. |
| 8. | Optional indication of Mulit LED. |
| 9. | Optional indication of inside LED counter or outside LED counter. |
| 10. | With interface of switch of relay, compatible with all the access controller. |
| 11. | Equipped with free control software for man-machine interface & control command SDK. |
| 12. |
Through the management computer to realize remote control and management. |
Customized Features:
1. Usage LED Counter function
2. Audio and visual alarm in the event of an invalid entry.
3. Remote-Controlled Button
4. Access Control System Integration
5. Camera System Integration
6. Thermostat System Integration
