| Place of Origin: | China |
| Brand Name: | RONA |
| Certification: | CE / ISO9001 |
| Model Number: | RNCF H8008-12 |
| Minimum Order Quantity: | 1 Lane |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton and wooden packing |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, |
| Supply Ability: | 2000 units Per Month |

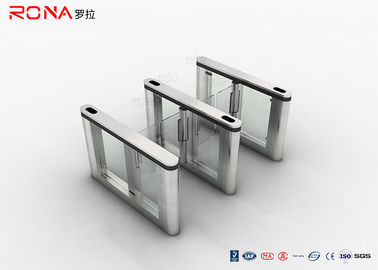

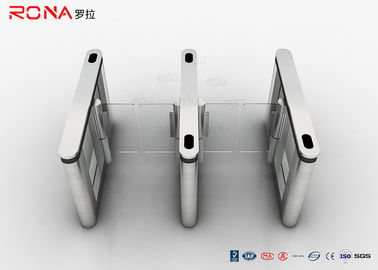

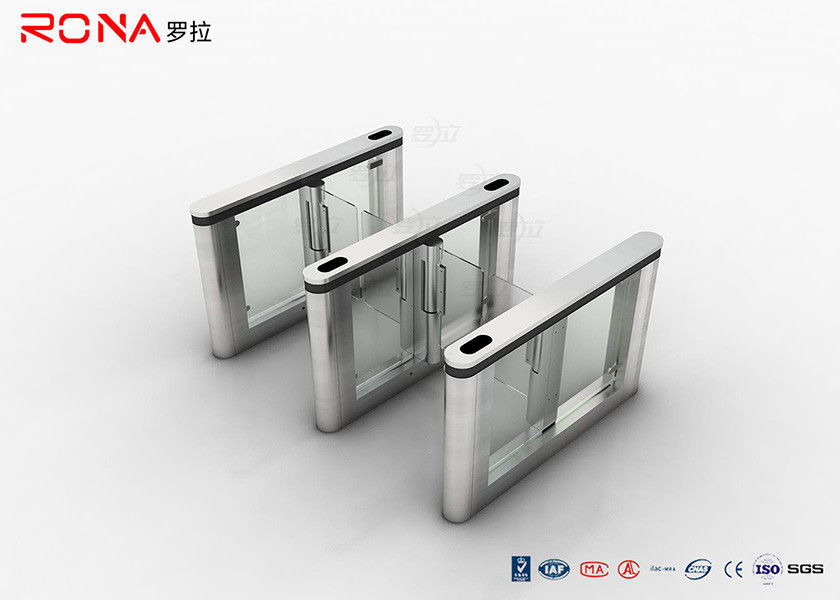

| Product Name: | Access Control Turnstile Speed Gate Turnstile High Speed Swing Turnstile Gate At Office Building | Materials: | SUS 304 |
|---|---|---|---|
| Size: | L1600*W0160*H1060 | Passage Width: | 650mm/900mm/1200mm |
| Passing Speed: | 30~40 Persons（normal Open)/25~30 Persons(normal Closed) | ||
| High Light: | speedgate turnstile,access control barriers,sus 304 access control swing turnstile |
||
Product Discripe:
Turnstile gate is a device used for pedestrian channel entry/exit management. With quick openning, safety and convenient features, it is the ideal management equipment for pedestrian high frequency access.The device housing are formed by inported SUS#304 stainless steel stamping, beautiful and generous shape, anti-rust, durable. Standard electrical interface for external use, easily integrated with RFID card reader, barcode reader, fingerprint, face recognition, iris recognition etc. Specially designed to meet the fire requirements of the function, convenient for people to evacuate in an emergency.
Functions and Features of the speed gate :
1. The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
2. Infrared and mechanical anti-clamping functions provide double protection.
3. The gate can be pushed slowly when a sudden impact force is applied beyond the safety range so as to protect the machine and the pedestrian effectively.
4. All electric modules are designed to operate under the safety voltage of 24V, and are configured with residual current protective devices to effectively avoid electric shocks.
5. RFID access controller, fingerprint reader, facial identify reader, qr code reader, barcode reader, consume system optional.
Technical parameters
| Housing material | 304 stainless steel&Stoving varnish |
| Driving motor | Servo motor |
| Shape size | customized |
| Swing arm material | Tempered glass&Acrylic |
| Passage width | 500-~1200mm |
| Direction | Single and bi-direction |
| Reset time after break down | 0.5 seconds |
| Normal running life | 10 million |
| Working environment | Indoor |
| Pass speed | 40 persons/min(open),25~30 persons/min(closed) |
Project Case for office building
Our production line for speed gate
