Acrylic Arm 900mm Width Pedestrian Swing Gate Bidirectional Pedestrian Turnstile Gate

Acrylic Arm 900mm Width Pedestrian Swing Gate Bidirectional Pedestrian Turnstile Gate

Acrylic Arm 900mm Width Pedestrian Swing Gate Bidirectional Pedestrian Turnstile Gate
Acrylic Arm 900mm Width Pedestrian Swing Gate Bidirectional Pedestrian Turnstile Gate
Acrylic Arm 900mm Width Pedestrian Swing Gate Bidirectional Pedestrian Turnstile Gate
Product Details:
Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF F7008HD
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T,
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Product Name: High Speed Card Reader Swing Barrier Gate Turnstile For Access Control With Acrylic Swing Arm Standard Size: 1410*230*990 Mm
Input Interface: +12V Level Signal Or Pulse Width>100ms 12V Pulse, Drive Current>10mA Passage Width: 600-900mm
Pass Speed: 25-30 Persons/min Direction: Single And Bi-directional
High Light:

900mm Width Pedestrian Swing Gate

,

Acrylic Arm Pedestrian Swing Gate

,

Bidirectional Pedestrian Turnstile Gate

High Speed Card Reader Swing Barrier Gate Turnstile for Access Control with Acrylic Swing Arm







Prduct Decribetion

1) Swing Barrier Gate is integrating with kindergarten system to guarantee kids security.

2) Visitors enter and exit the Swing Barrier Gate need to show the authorization device , like IC/ID card, barcode paper

3) Visitors enter and exit the Swing Barrier Gate will be take pictures as proof , parents will know when and who pick up the kids.

4) All in all, Swing turnstile will improve kids secuirty in kindergarten, and using this kind of solution can improve kindergarten image.



How to guarantee kids will not be hurt when they using the Swing Barrier Gate ?

1) RONA Swing Barrier Gate using epecial mechanism structure, the strength not enough to hurt them.

2) RONA using high quality infrared , the erroneous judgement almost zero.

3) RONA Swing Barrier Gate can using in outside totaly - Waterproof



Standard functions & features of Swing Barrier Gate

1) Flow direction guide with high bright led lamp.
2) Alarm function:when arms are pushed by force illegally, alarm will be triggered automatically and arms will be set locked.
3) Anti-pinch function: turnstile have Mechanical/ infrared induction Anti-pinch functions( when it is meet the hinder during the reset time, the electrical machine closed work automatically in specified time, the turnstile will default the delayed and reset again till reset succeed)
4)The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.
5)Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs
6) Infrared reset function (Optional:4 pairs or 6 pairs Infrared)
7) The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles)
8) Can manager and long-range control the turnstile directly by managing the computer.
9)Water proof,can used at inside and outside
10) Can be integrated with all kinds of access control systems include ID/IC, barcode, fingerprint, face, iris, etc.





Extended functions

1. LED counting function

2. Size customization

3. Add more infrared

4. Program customization (for example : Normally open or closed can be adjust to meet the requirements of the different place. )

5. Voice Prompt Function

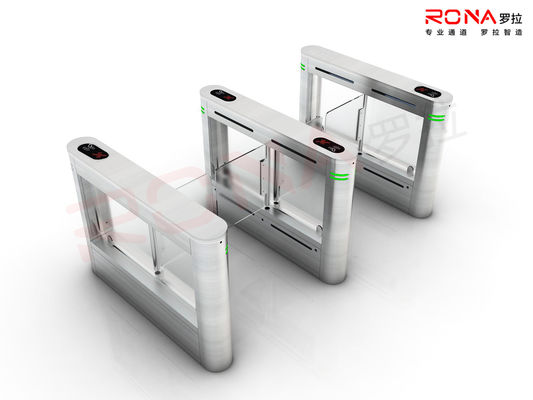

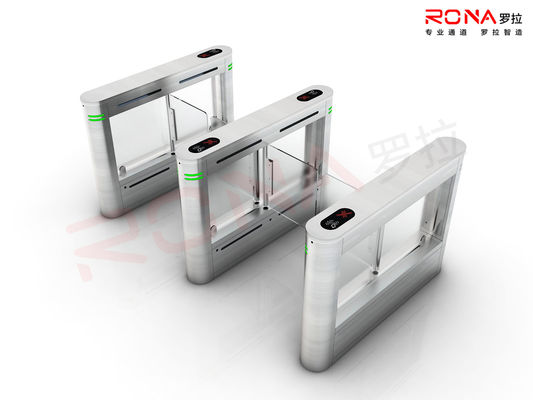

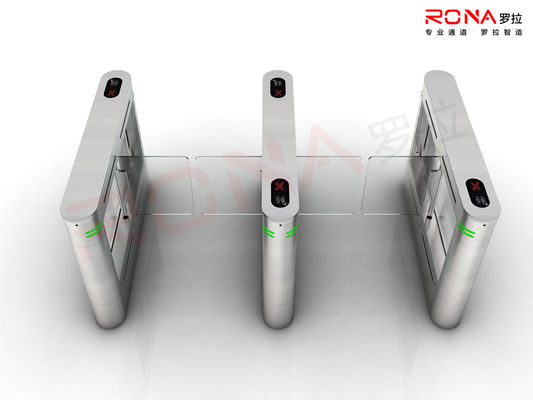

Acrylic Arm 900mm Width Pedestrian Swing Gate Bidirectional Pedestrian Turnstile Gate 0









Acrylic Arm 900mm Width Pedestrian Swing Gate Bidirectional Pedestrian Turnstile Gate 1





Project case

Acrylic Arm 900mm Width Pedestrian Swing Gate Bidirectional Pedestrian Turnstile Gate 2

Acrylic Arm 900mm Width Pedestrian Swing Gate Bidirectional Pedestrian Turnstile Gate 3







Acrylic Arm 900mm Width Pedestrian Swing Gate Bidirectional Pedestrian Turnstile Gate 4





Export wooden box

Acrylic Arm 900mm Width Pedestrian Swing Gate Bidirectional Pedestrian Turnstile Gate 5
